A/C Liquid Hose/Line Replacement

TO EXPANSION VALVE
REMOVAL
1. Remove refrigerant from the A/C system using a refrigerant recovery machine.

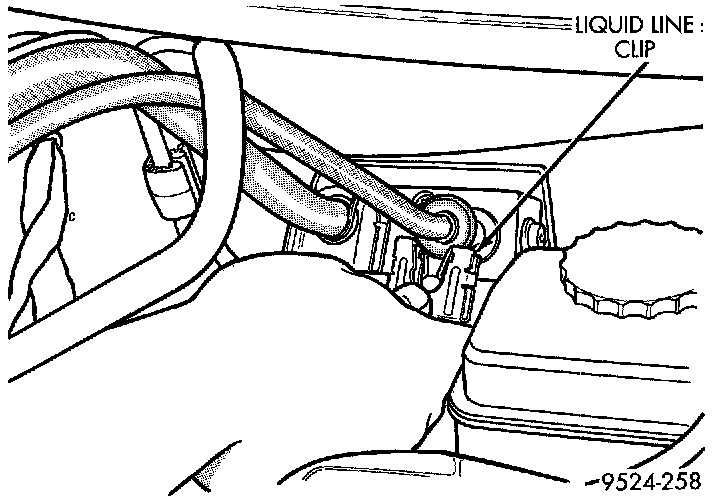

Liquid Line Clip At Expansion Valve:

2. Remove A/C quick connect clip at expansion valve.

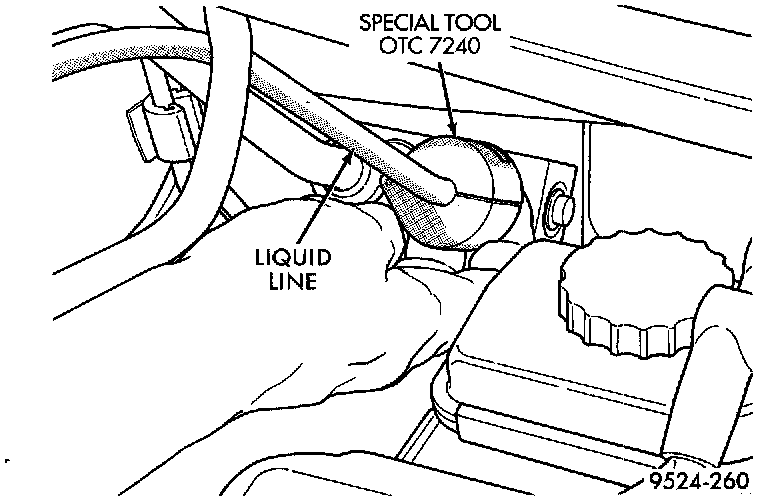

Use Special Tool 7240 For Quick Connect:

3. Disconnect quick connector on expansion valve. Remove liquid line from expansion valve. Use Special Tool kit 7193 to disconnect quick connector.

CAUTION: Cap all lines that are not being replaced and cap the expansion valve tubes.

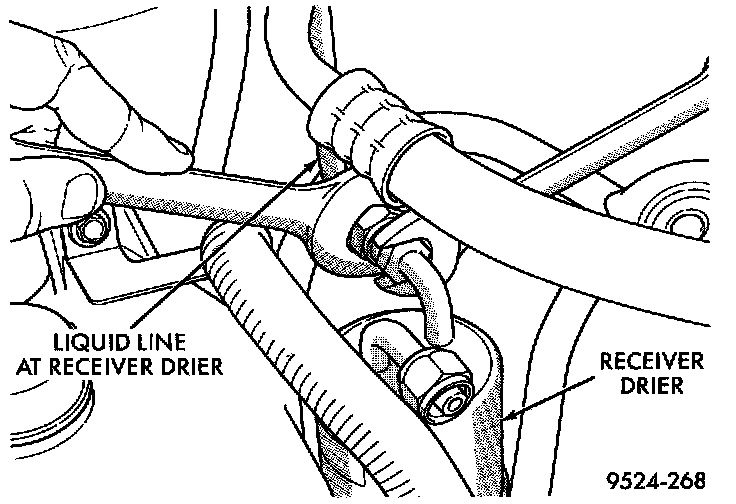

Liquid Line At Receiver/Drier:

4. Disconnect liquid line from the receiver/drier.
5. Remove the liquid line from the vehicle.

INSTALLATION
For installation, reverse the above procedures.

TO CONDENSER
REMOVAL
1. Remove refrigerant from the A/C system using a refrigerant recovery machine.

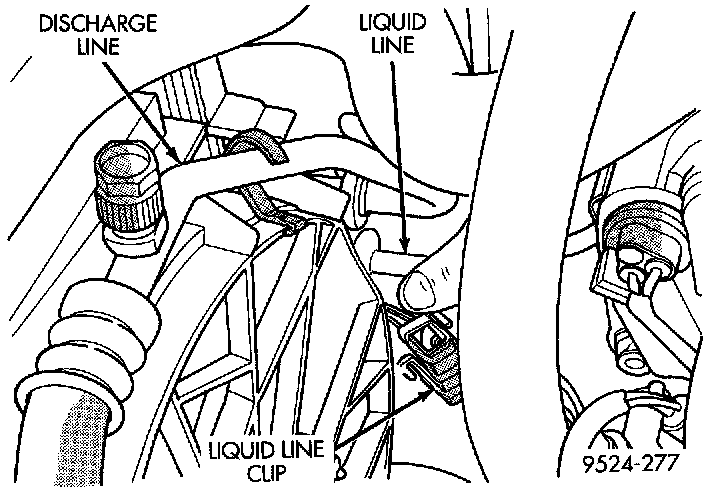

Clip Removal:

2. Remove A/C quick connect clip at condenser.

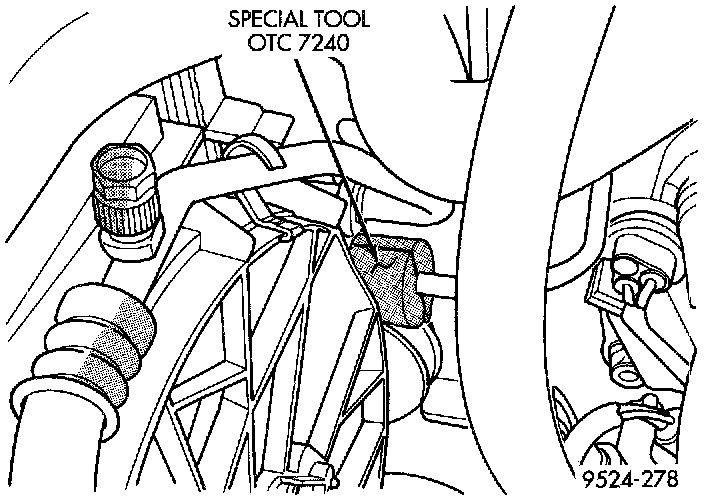

Quick Coupler Using Special Tool 7240:

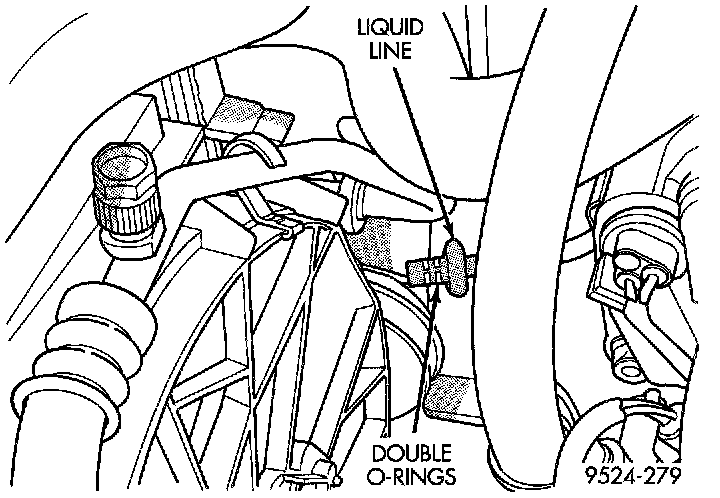

Line At Condenser:

3. Disconnect quick connector at condenser. Remove liquid line from condenser. Use special tool kit 7193 to disconnect quick connector. Remove line at condenser.

CAUTION: Cap all lines that are not being replaced and cap the condenser inlet.

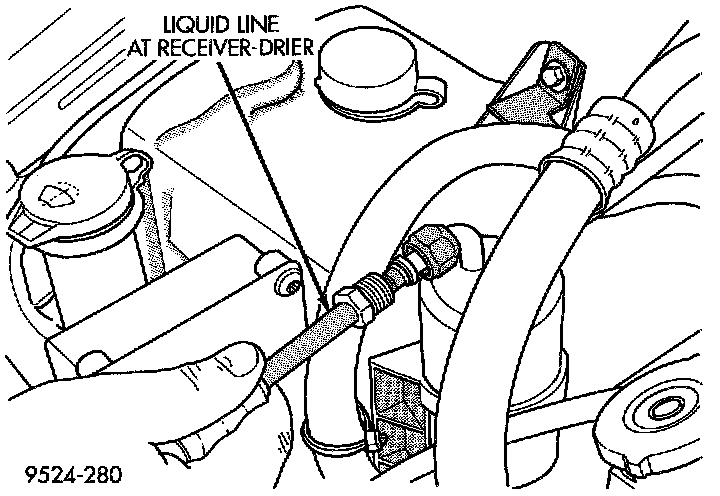

Liquid Line At Receiver/Drier:

4. Disconnect liquid line from the receiver/drier.
5. Remove the liquid line from the vehicle.

INSTALLATION
For installation, reverse the above procedures.

NOTE: When replacing a blown line add 44 ml (1.50 fl oz) of SP-15 PAG Oil compressor oil to the system.
