A/C Discharge Hose/Line Replacement

REMOVAL
1. Remove refrigerant from the A/C system using a refrigerant recovery machine.

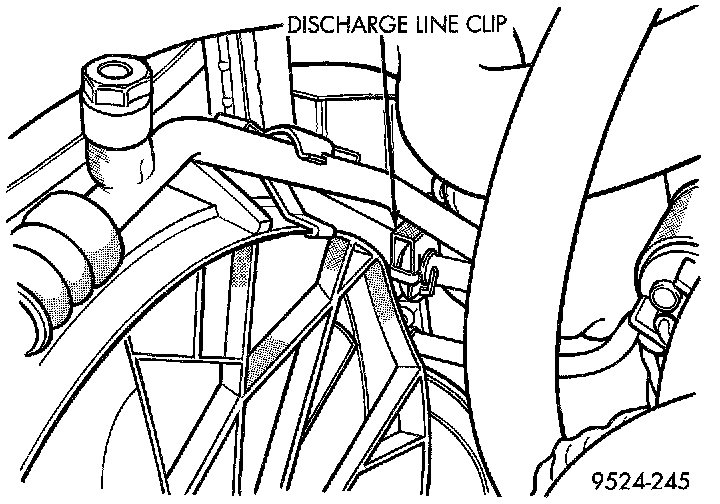

2. Disconnect A/C pressure transducer wire harness.

Quick Connect Clip:

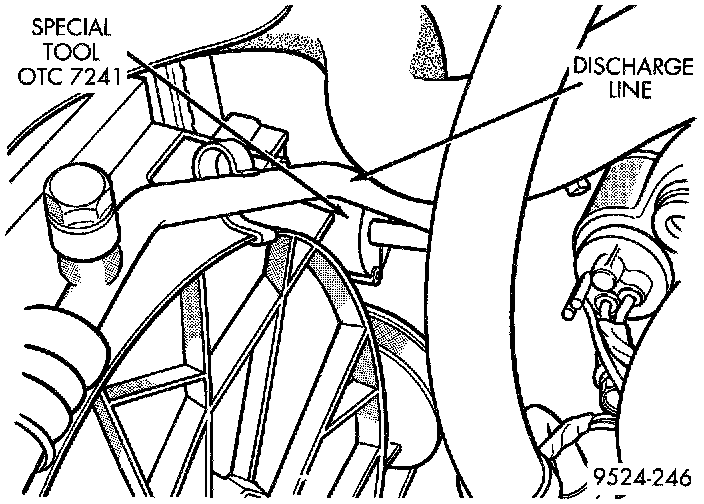

Special Tool For Line At Condenser:

3. Remove quick connect clip and disconnect quick connect at condenser using Special Tool kit 7193.

CAUTION: Cap all lines that are not being replaced and cap the expansion valve tubes.

Line At Compressor:

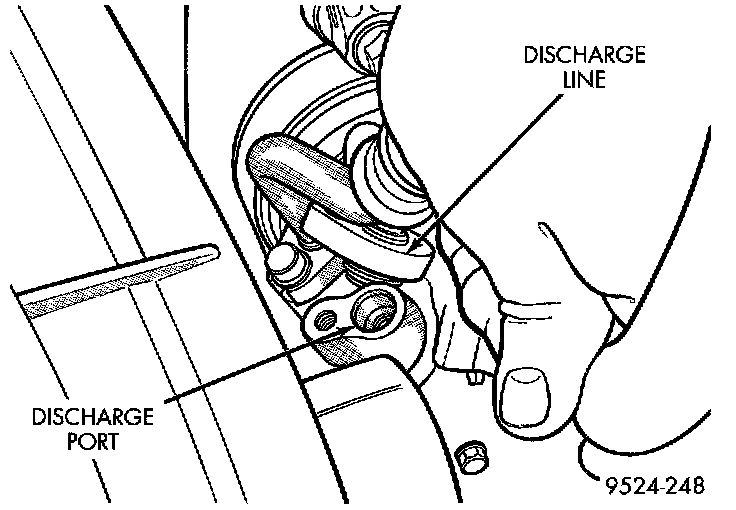

4. Disconnect line at A/C compressor. Remove discharge line.

INSTALLATION
For installation, reverse the above procedures. Tighten bolts to 22 N.m (200 in, lbs.).

NOTE: When replacing a blown line add 44 ml (1.50 fl oz) of SP-15 PAG Oil compressor oil to the system.
