Blower Motor and Wheel Assembly Replacement

REMOVAL
1. Disconnect battery.
2. Remove lower right under panel silencer duct.

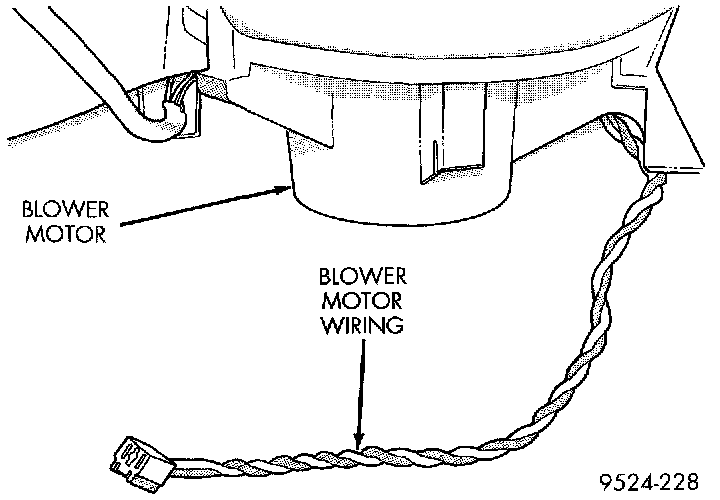

Blower Motor Wiring:

3. Remove blower motor connector from resistor block.
4. Remove blower motor case retaining screws.

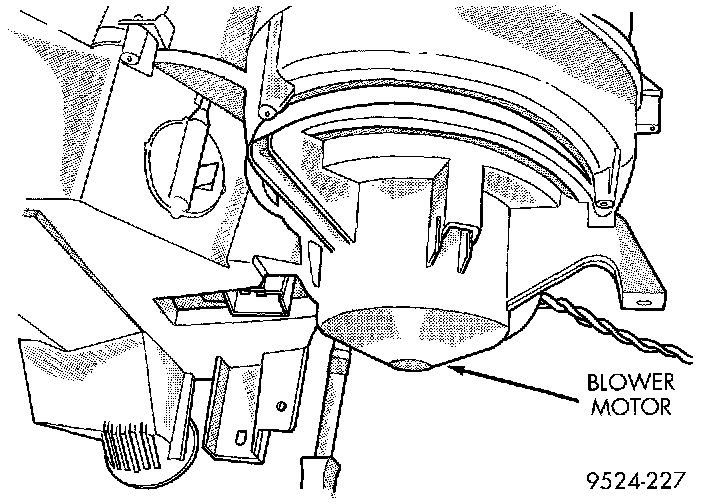

Blower Motor:

5. Lower blower motor case from housing.
6. Remove fan scroll from motor shaft.
7. Remove motor from motor case.

INSTALLATION
For installation, reverse the above procedures.
