Temperature Control Cable Replacement

The blend-air (temperature) door is actuated by a cable which mechanically positions the temperature door.

The temperature door actuator is located at the center of the A/C Heater housing at the center tunnel.

REMOVAL
1. Place the ignition key in the OFF position before removing control module.

Trim Bezel:

2. Remove trim bezel.

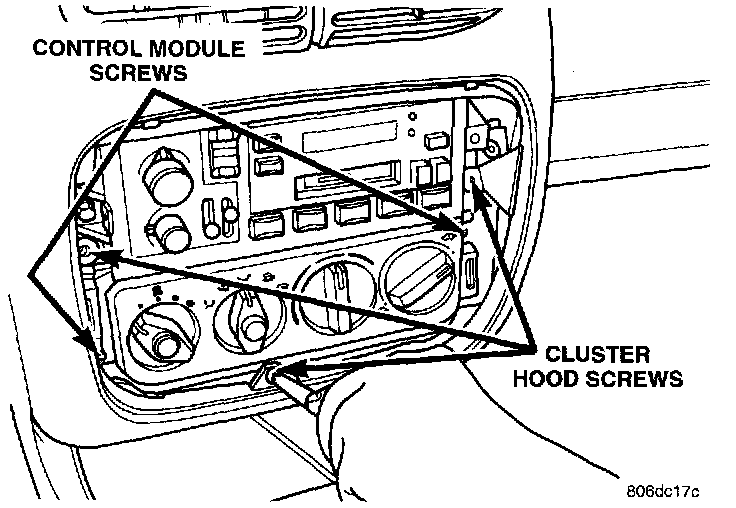

Control Module Screws:

3. Remove cluster hood bezel retaining screws in the trim bezel opening.
4. Pry up the cluster hood bezel a few inches to expose the cubby bin/cigar lighter bezel screws.
5. Remove the cubby bin/cigar lighter bezel and wiring.
6. Remove the control module retaining screws.
7. Remove control module and disconnect the wire connectors.
8. Release the temperature control cable retaining clip from the top of the control module. Retain the clip for future use. Then disconnect the temperature control cable.

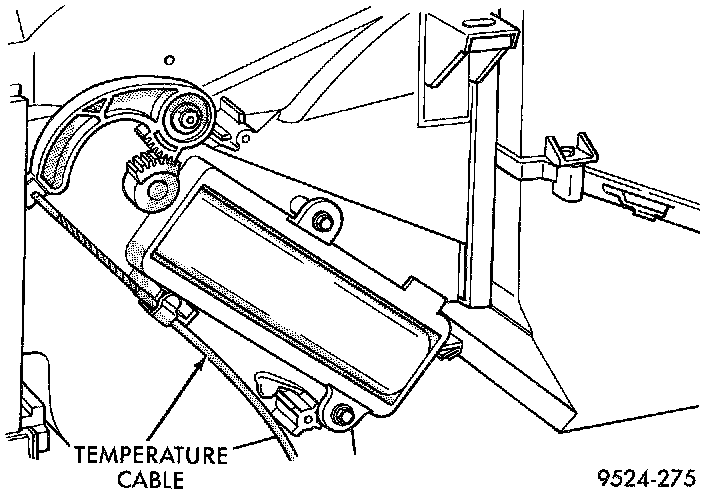

Temperature Cable At A/C Housing:

9. Disconnect cable at A/C housing.
10. Remove cable core end from temperature actuator lever.

INSTALLATION
For installation, reverse the above procedures.
