Recirculation Door Cable Replacement

The RECIRC door is actuated by a cable which mechanically positions the door.

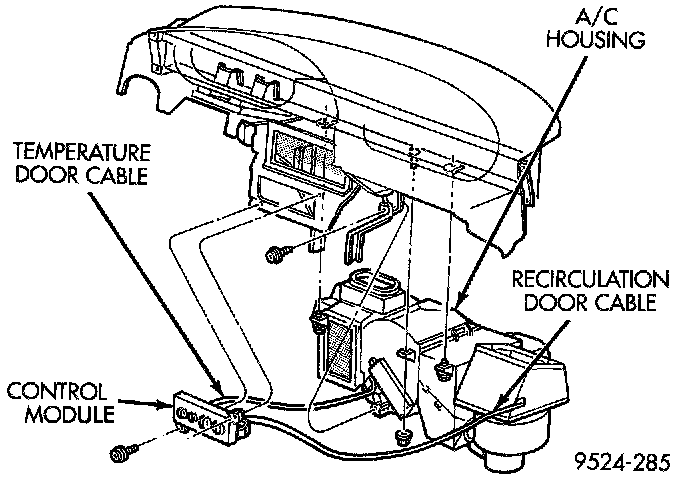

Recirculation Cable Location:

The RECIRC door actuator is located at the far right of the A/C Heater housing near the right A-pillar.

REMOVAL
1. Place the ignition key in the OFF position before removing control module.

Trim Bezel:

2. Remove trim bezel.

Control Module Screws:

3. Remove cluster hood bezel retaining screws in the trim bezel opening.
4. Pry up the cluster hood bezel a few inches to expose the cubby bin/cigar lighter bezel screws.
5. Remove the cubby bin/cigar lighter bezel and wiring.
6. Remove the control module retaining screws.

Control Module At Bezel Opening:

7. Drop the A/C control module into the cigar lighter/cubby bin bezel opening. Then disconnect the wiring on the rear of the control module.
8. Release the recirculation cable retaining clip from the top of the control module. Retain the clip for future use. Then disconnect the recirculation control cable.
9. Remove right under panel silencer/duct.

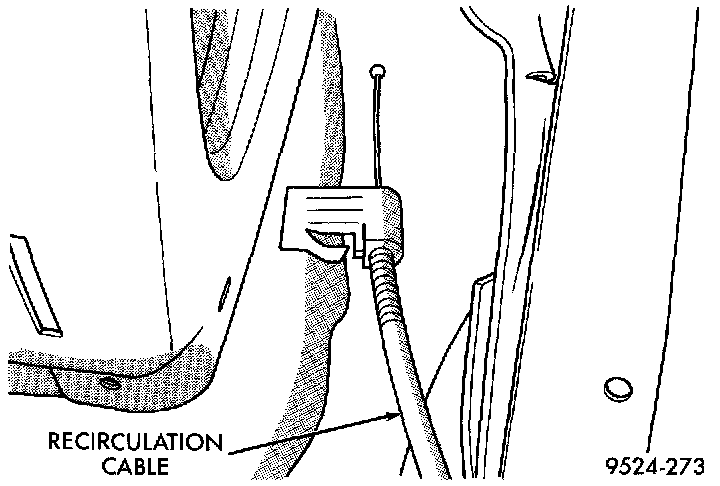

Disconnect Recirculation Cable:

10. Disconnect cable flag at right of recirculation housing.
11. Remove cable core end from recirculation actuator lever.

INSTALLATION
For installation, reverse the above procedures. Verify that the cables are properly adjusted, free of interference, and the module is seated properly.

CABLE ADJUSTMENT
The cables must be adjusted for proper function of the control module. To adjust the cable, attach the cable to the lever arm of the control module. Turn the knob fully counterclockwise. Pull the cable jacket away from the cable end until taut. Clip the cable jacket to the control module. The knob should travel a full 1800 if the cable is properly adjusted.
