Balance Shaft: Service and Repair
BALANCE SHAFT, REMOVAL1. Drain engine oil and remove oil pan.

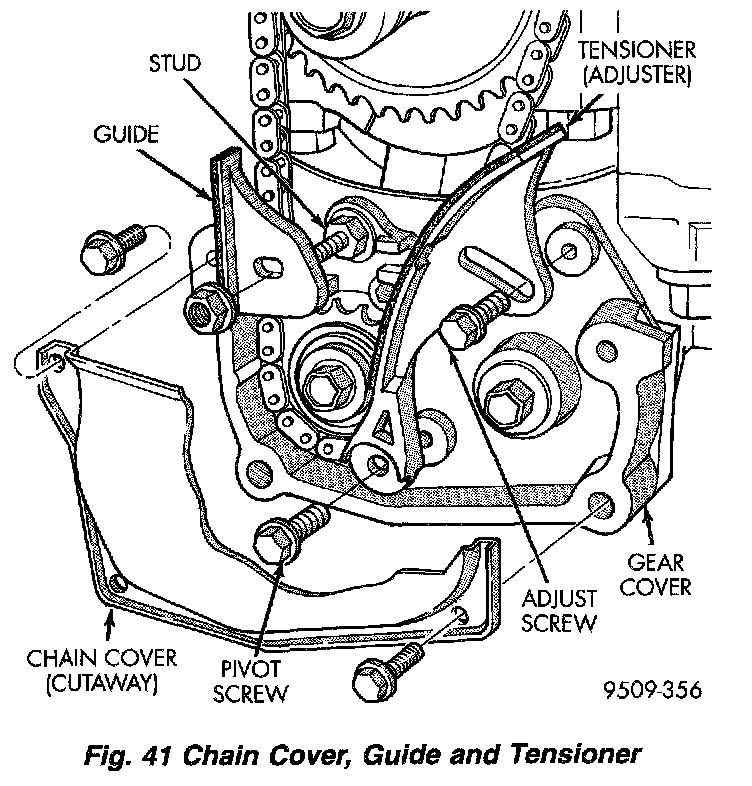

Figure 41:
2. Remove chain cover, guide and tensioner. Also see Carrier Assembly Removal for service procedures requiring only temporary relocation of assembly.
3. Remove gear cover retaining stud (double ended to also retain chain guide). Remove cover and balance shaft gears (Fig. 41).

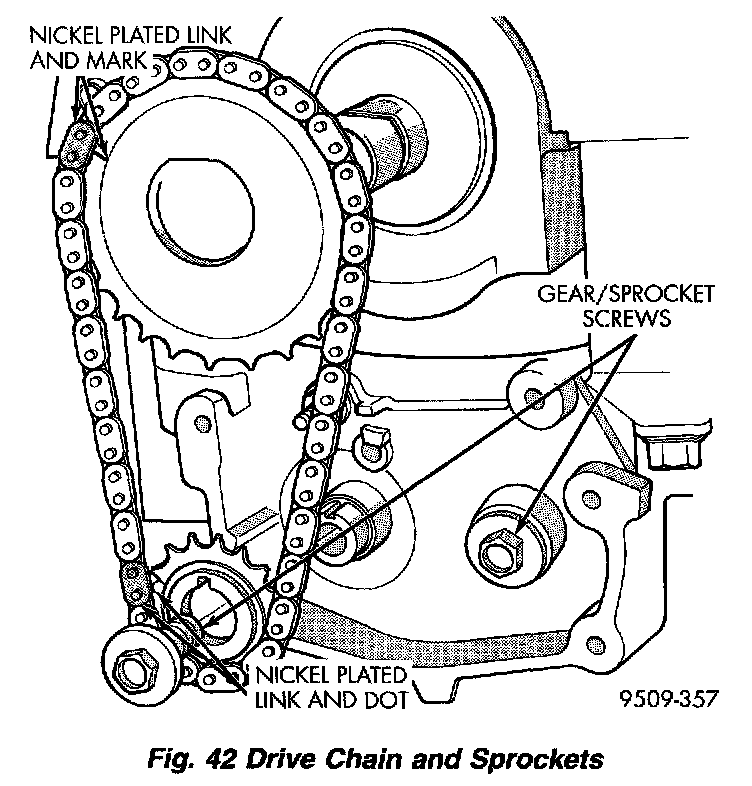

Figure 42:
4. Remove balance shaft gear and chain sprocket retaining screws and crankshaft chain sprocket. Remove chain and sprocket assembly (Fig. 42). Using two wide pry bars, work the sprocket back and forth until it is off the shaft.

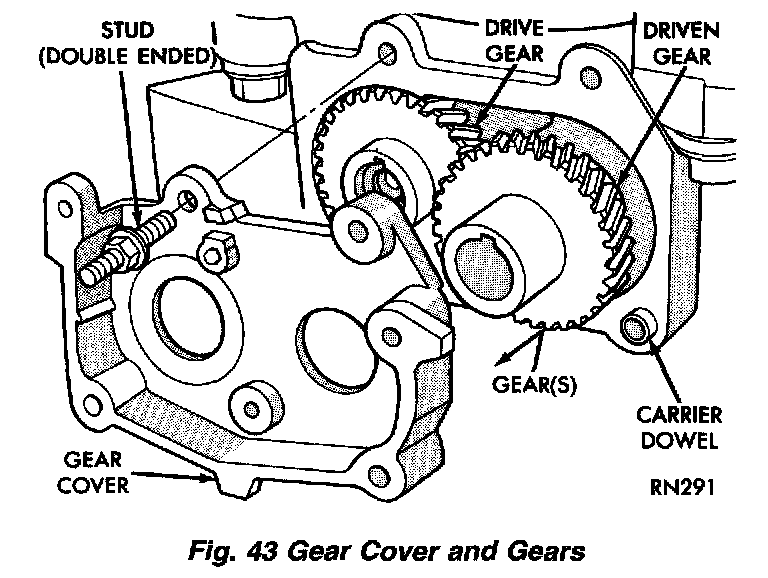

Figure 43:
5. Remove carrier gear cover and balance shafts (Fig. 43).
6. Remove four carrier to crankcase attaching bolts to separate carrier from engine bedplate.
BALANCE SHAFT CARRIER, REMOVAL

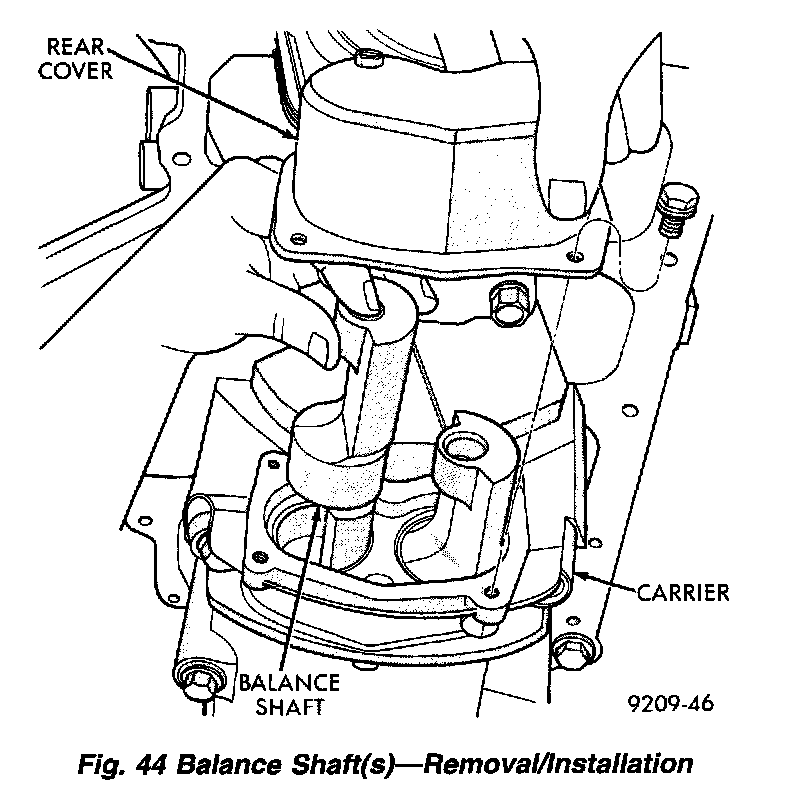

Figure 44:
The following components will remain intact during carrier removal. Gear cover, gears, balance shafts and the rear cover (Fig. 44).
1. Remove chain cover and driven balance shaft chain sprocket screw.
2. Loosen tensioner pivot and adjusting screws, move driven balance shaft inboard through driven chain sprocket. Sprocket will hang in lower chain loop.
3. Remove carrier to crankcase attaching bolts to remove carrier.
BALANCE SHAFT INSTALLATION
Balance shaft and carrier assembly installation is the reverse of the removal procedure. During installation crankshaft to balance shaft timing must be established.
BALANCE SHAFT TIMING
Figure 44:
1. With balance shafts installed in carrier (Fig. 44) position carrier on crankcase and install four attaching bolts and tighten to 54 Nm (40 ft. lbs.).

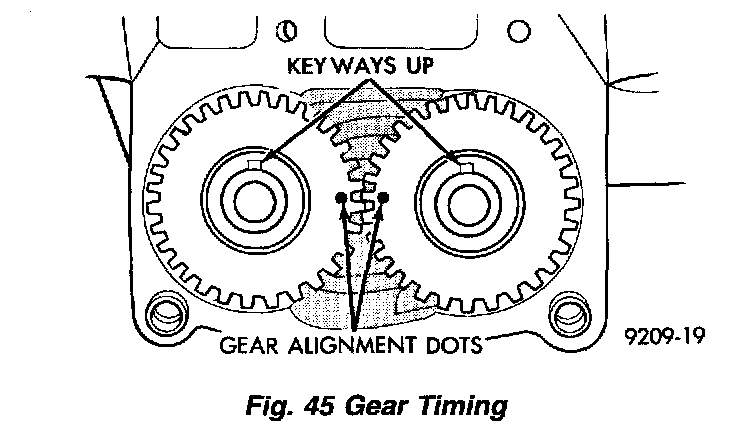

Figure 45:
2. Turn balance shafts until both shaft key ways are up Parallel to vertical centerline of engine. Install short hub drive gear on sprocket driven shaft and long hub gear on gear driven shaft. After installation gear and balance shaft keyways must be up with gear timing marks meshed as shown (Fig. 45).
3. Install gear cover and tighten double ended stud/washer fastener to 12 Nm (105 inch lbs.).

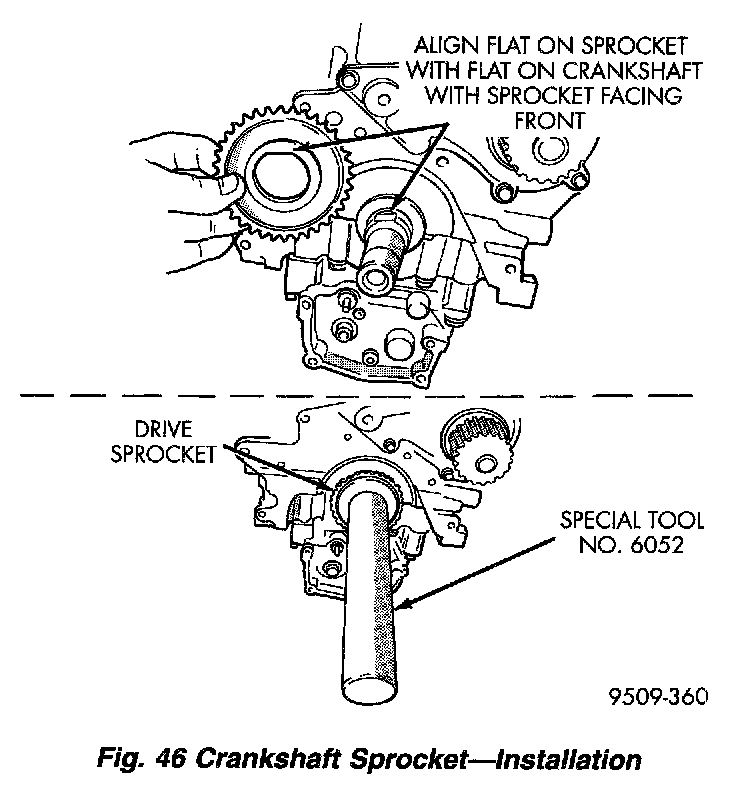

Figure 46:
4. Install crankshaft sprocket using Special Tool 6052 (Fig. 46).

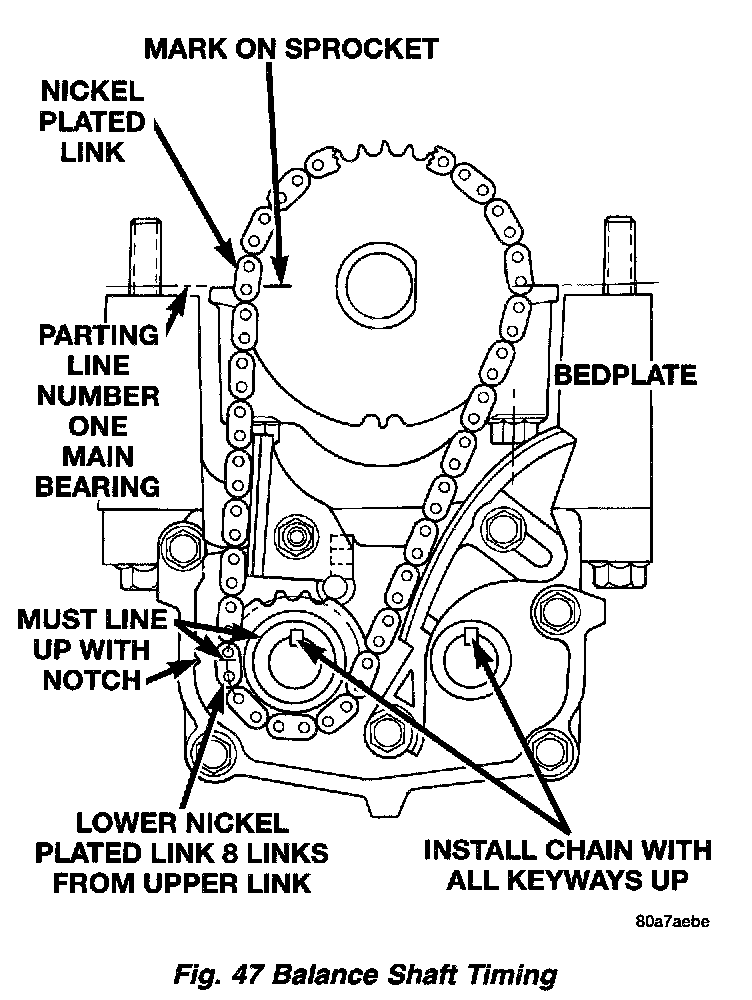

Figure 47:
5. Turn crankshaft until number one cylinder is at Top Dead Center (TDC). The timing marks on the chain sprocket should line up with the parting line on the left side of number one main bearing cap (Fig. 47).
6. Place chain over crankshaft sprocket so that the nickel plated link of the chain is over the number 1 cylinder timing mark on the crankshaft sprocket.
7. Place balance shaft sprocket into the timing chain so that the timing mark on the sprocket (yellow dot) mates with the (lower) nickel plated link on the chain.
8. With balance shaft keyways pointing up (12 o'clock) slide the balance shaft sprocket onto the nose of the balance shaft. The balance shaft may have to be pushed in slightly to allow for clearance.
NOTE: THE TIMING MARK ON THE SPROCKET, THE (LOWER) NICKEL PLATED LINK, AND THE ARROW ON THE SIDE OF THE GEAR COVER SHOULD LINE UP WHEN THE BALANCE SHAFTS ARE TIMED CORRECTLY.
9. If the sprockets are timed correctly install the balance shaft bolts and tighten to 28 Nm (250 inch lbs.). A wood block placed between crankcase and crankshaft counterbalance will prevent crankshaft and gear rotation.
CHAIN TENSIONING
1. Install chain tensioner loosely assembled.
2. Position guide on double ended stud making sure tab on the guide fits into slot on the gear cover. Install and tighten nut/washer assembly to 12 Nm (105 inch lbs.).

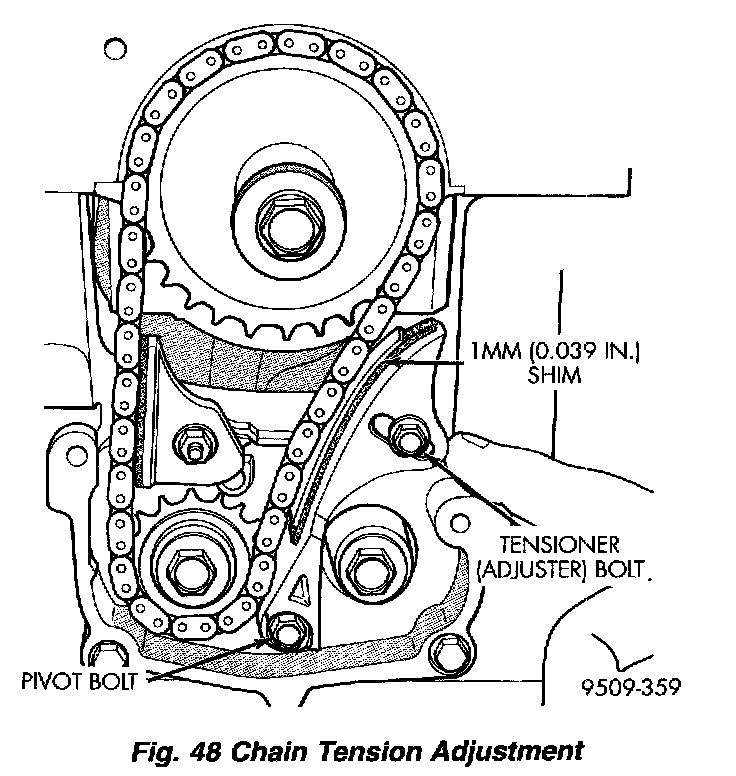

Figure 48:
3. Place a shim 1 mm (0.039 inch) thick x 70 mm (2.75 inch) long or between tensioner and chain. Push tensioner and shim up against the chain. Apply firm pressure (5.5 to 6.6 lbs.) directly behind the adjustment slot to take up all slack. Chain must have shoe radius contact as shown (Fig. 48).
4. With the load applied, tighten top tensioner bolt first, then bottom pivot bolt. Tighten bolts to 12 Nm (105 inch lbs.). Remove shim.
5. Install carrier covers and tighten screws to 12 Nm (105 inch lbs.).
6. Install oil pan and fill engine crankcase with proper oil to correct level.
