Left Mount

NOTE: If centering or adjusting the engine/transmission assembly is needed refer to Drive Belts, Mounts, Brackets and Accessories, Adjustments.

The left side engine mount is a Hydro-Mount and may show surface cracks. This will not effect its performance and should not be replaced. Only replace the Hydro-Mount when it's leaking fluid.

REMOVAL

1. Support the transmission with a transmission jack.

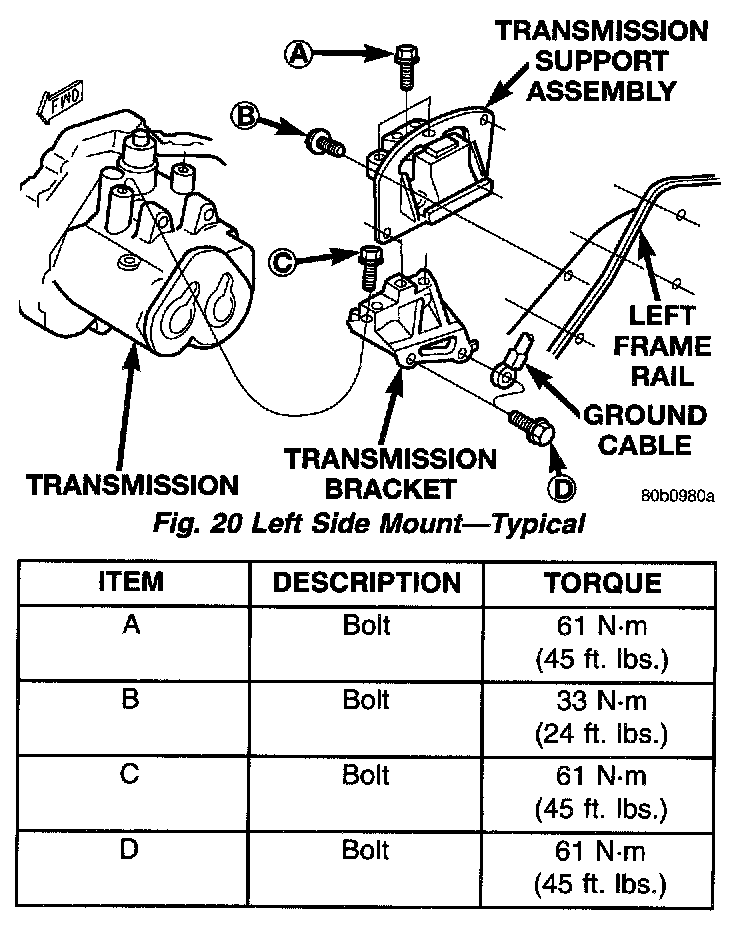

Figure 20:

2. Remove the three vertical bolts (A) from the mount to the transmission bracket (Fig. 20).
3. Remove the mount to frame rail fasteners (B) and remove mount.

INSTALLATION
1. Install mount. Tighten mount to frame rail fasteners (B) to 33 Nm (24 ft. lbs.).
2. Install mount to transmission bracket vertical bolts (A). Tighten to 61 Nm (45 ft. lbs.).
