Engine Support Module (Front and Rear Mounts)

REMOVAL
1. Raise vehicle on hoist.
2. Remove through bolt at rear mount and remove bolts attaching module to crossmember.

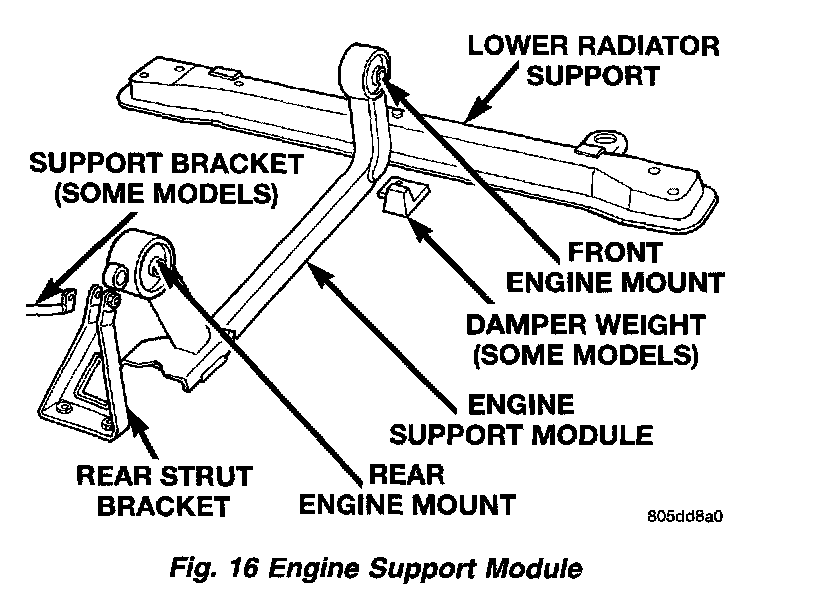

Figure 16:

3. Remove upper attaching bolt from rear support strut bracket (Fig. 16).
4. Remove front attaching bolts from support module to lower radiator support.
5. Support cooling module.
6. Remove lower radiator support bolts, and remove support.
7. Remove through bolt at front mount and remove support module.

INSTALLATION
1. Install through bolt at front mount. Do not tighten at this time.
2. Install lower radiator support.
3. Install attaching bolts from support module to lower radiator support.
4. Install upper bolt at rear support strut bracket.

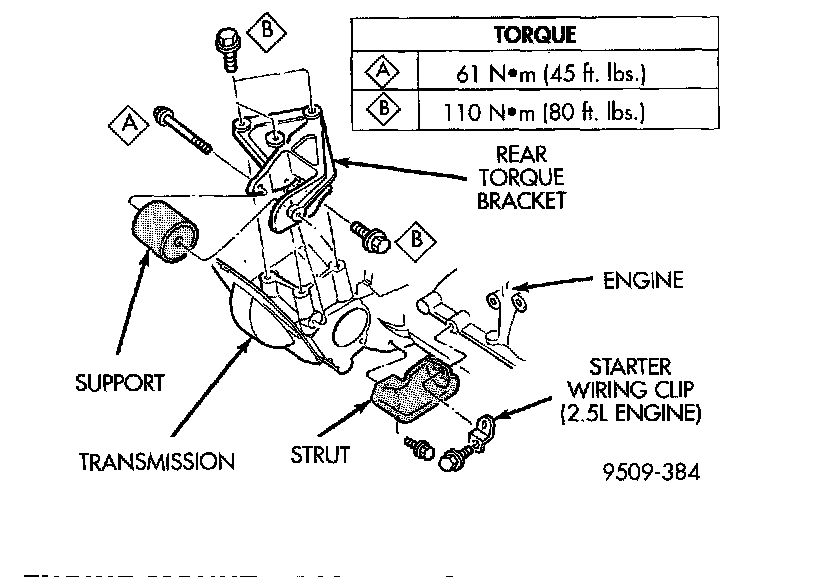

Figure 17:

5. Install through bolt at rear mount see (Fig. 17), tighten to 61 Nm (45 ft. lbs.).

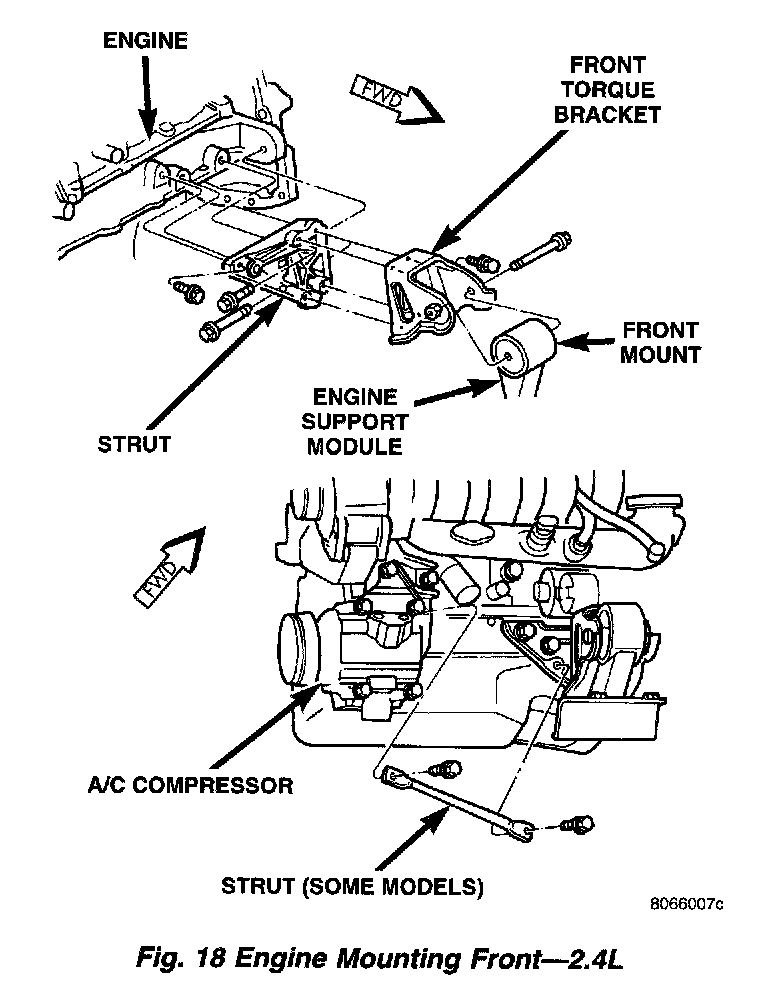

Figure 18:

6. Tighten through bolt at front mount see (Fig. 18), tighten to 61 Nm (45 ft. lbs.).
