Cleaning and Inspection

CLEANING
Remove all gasket material from cylinder head and block. Be careful not to gouge or scratch the aluminum head sealing surface.

INSPECTION

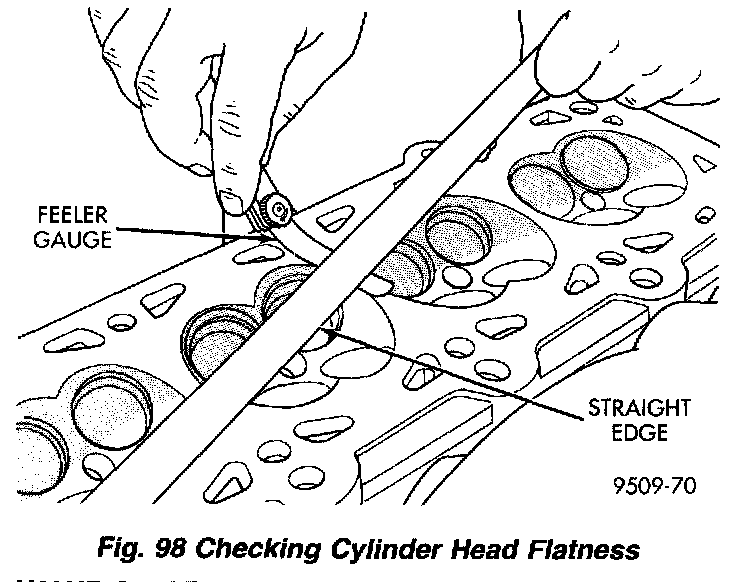

Figure 98:

1. Cylinder head must be flat within 0.1 mm (0.004 inch) (Fig. 98).
2. Inspect camshaft bearing journals for scoring.
