Fitting Piston Rings

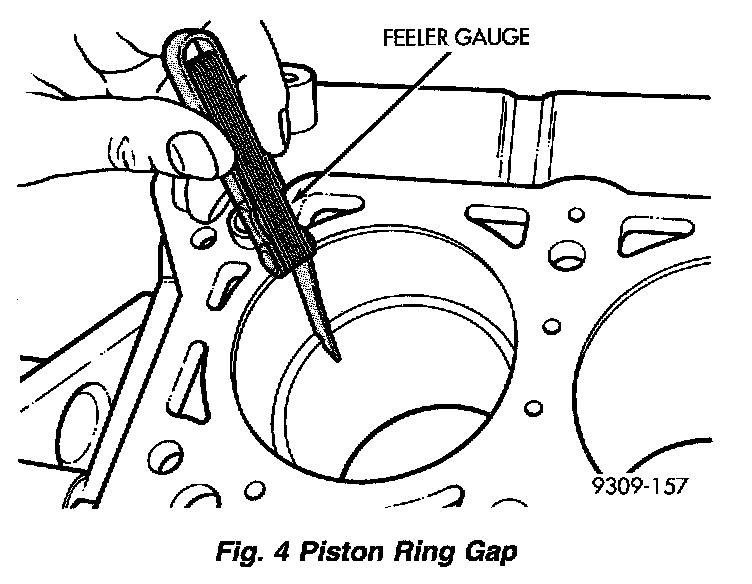

Figure 4:

1. Wipe cylinder bore clean. Insert ring and push down with piston to ensure it is square in bore. The ring gap measurement must be made with the ring positioning at least 12 mm (0.50 inch) from bottom of cylinder bore. Check gap with feeler gauge (Fig. 4). Refer to specification in Piston Ring Specification Chart.

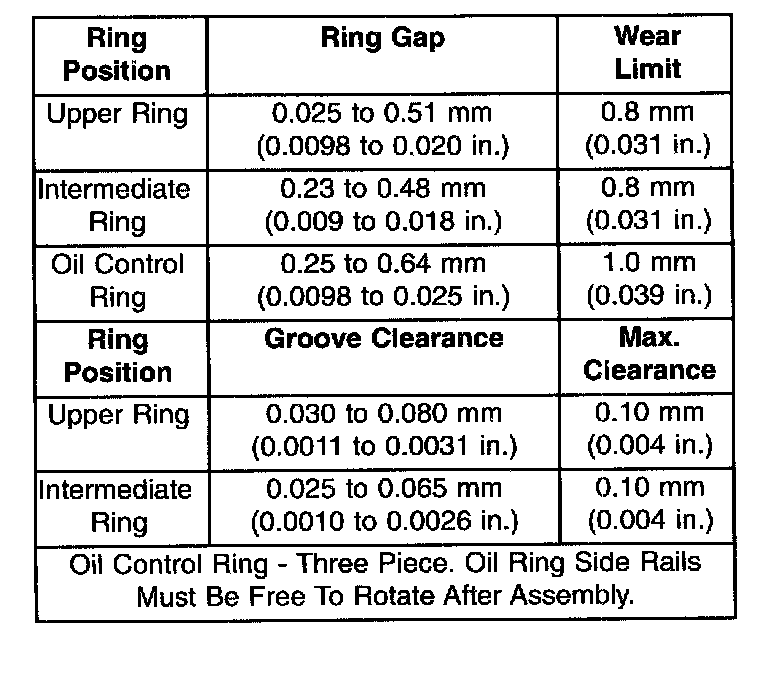

PISTON RING SPECIFICATION CHART

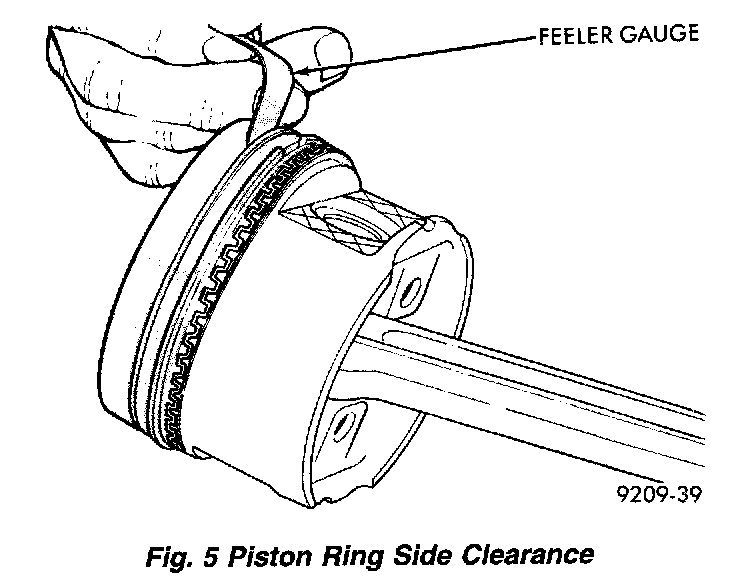

Figure 5:

2. Check piston ring to groove side clearance (Fig. 5). Refer to specification in Piston Ring Specification Chart.
