Harmonic Balancer - Crankshaft Pulley: Service and Repair

REMOVAL

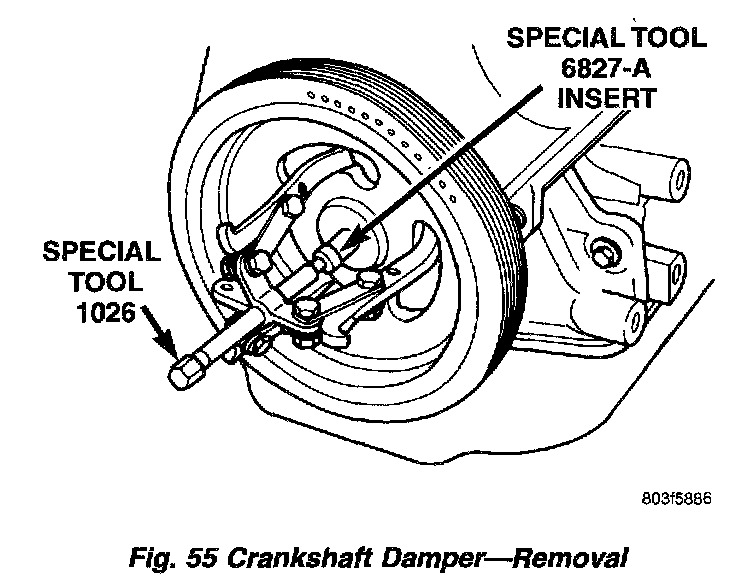

Figure 55:

Remove crankshaft damper bolt. Remove damper by using Special Tool 1026 and Insert 6827-A (Fig. 55).

INSTALLATION

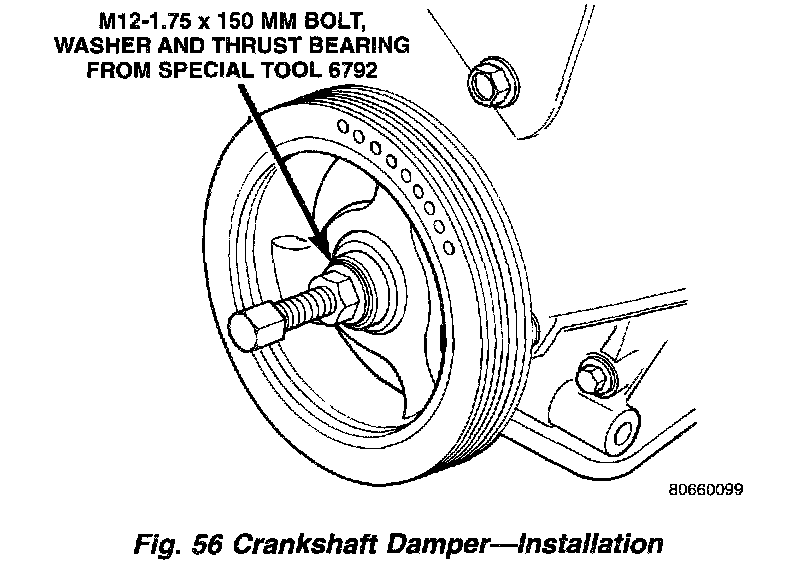

Figure 56:

Install crankshaft damper using M12 1.75 x 15() mm bolt, washer, thrust bearing and nut from Special Tool 6792. Install crankshaft vibration damper bolt and tighten to 142 Nm (105 ft. lbs.) (Fig. 56).
