Radiator Drain Plug: Service and Repair

REMOVAL

CAUTION: Plastic tanks, while stronger then brass are subject to damage by impact, such as wrenches.

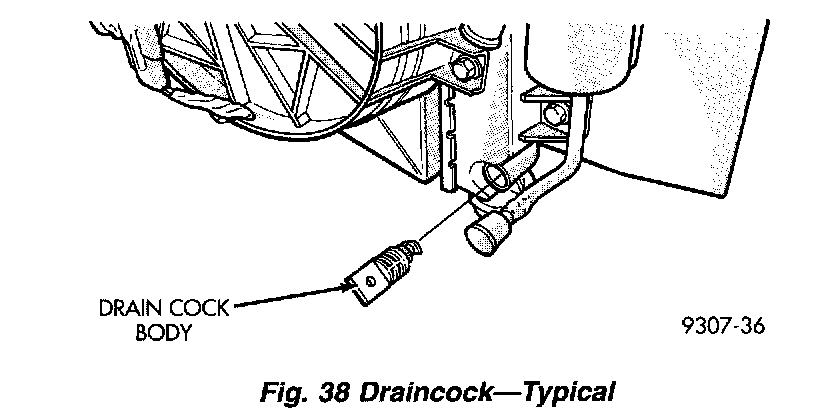

Figure 38:

1. Turn the draincock stem counterclockwise to unscrew the stem. When the stem is unscrewed to the end of the threads, pull the stem from the radiator tank.

NOTE: To open draincock on vehicle equipped with 2.5L engine, use a 3/8 inch drive extension 3" long, a 19mm socket with universal.


INSTALLATION
1. Push the draincock assembly body into the tank opening until it snaps into place.
2. Tighten the draincock stem by turning clockwise to 2.0-2.7 Nm (18-25 inch lbs.) torque.
