Home >> Chrysler >> 1999 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Shift Solenoid, A/T

Shift Solenoid, A/T

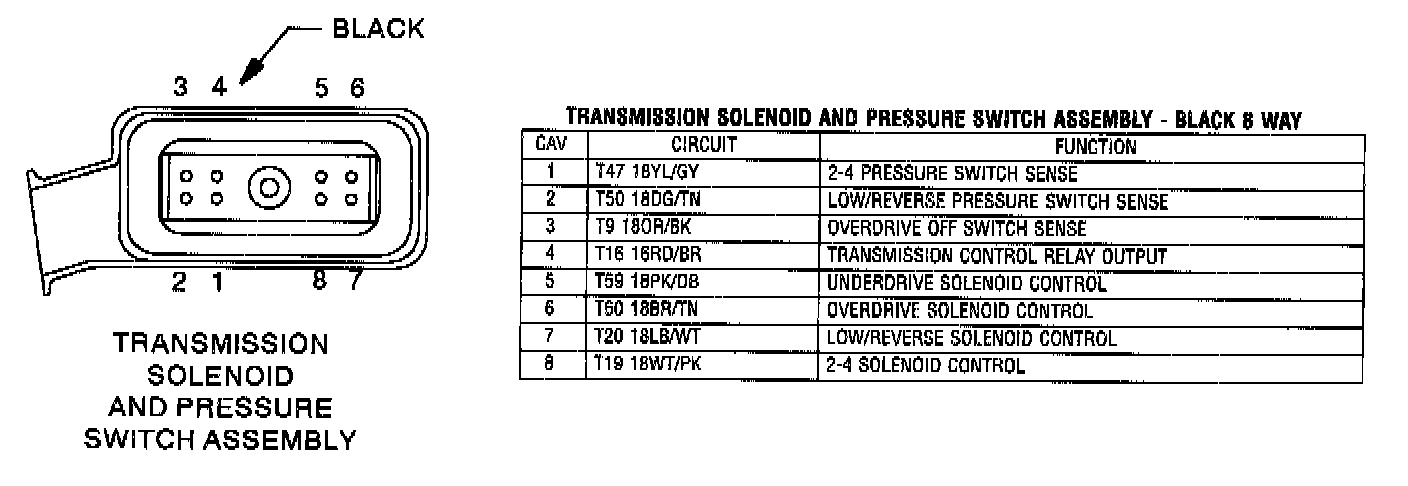

Transmission Solenoid And Pressure Switch Assembly Black 8 Way:
