Front End Lighting

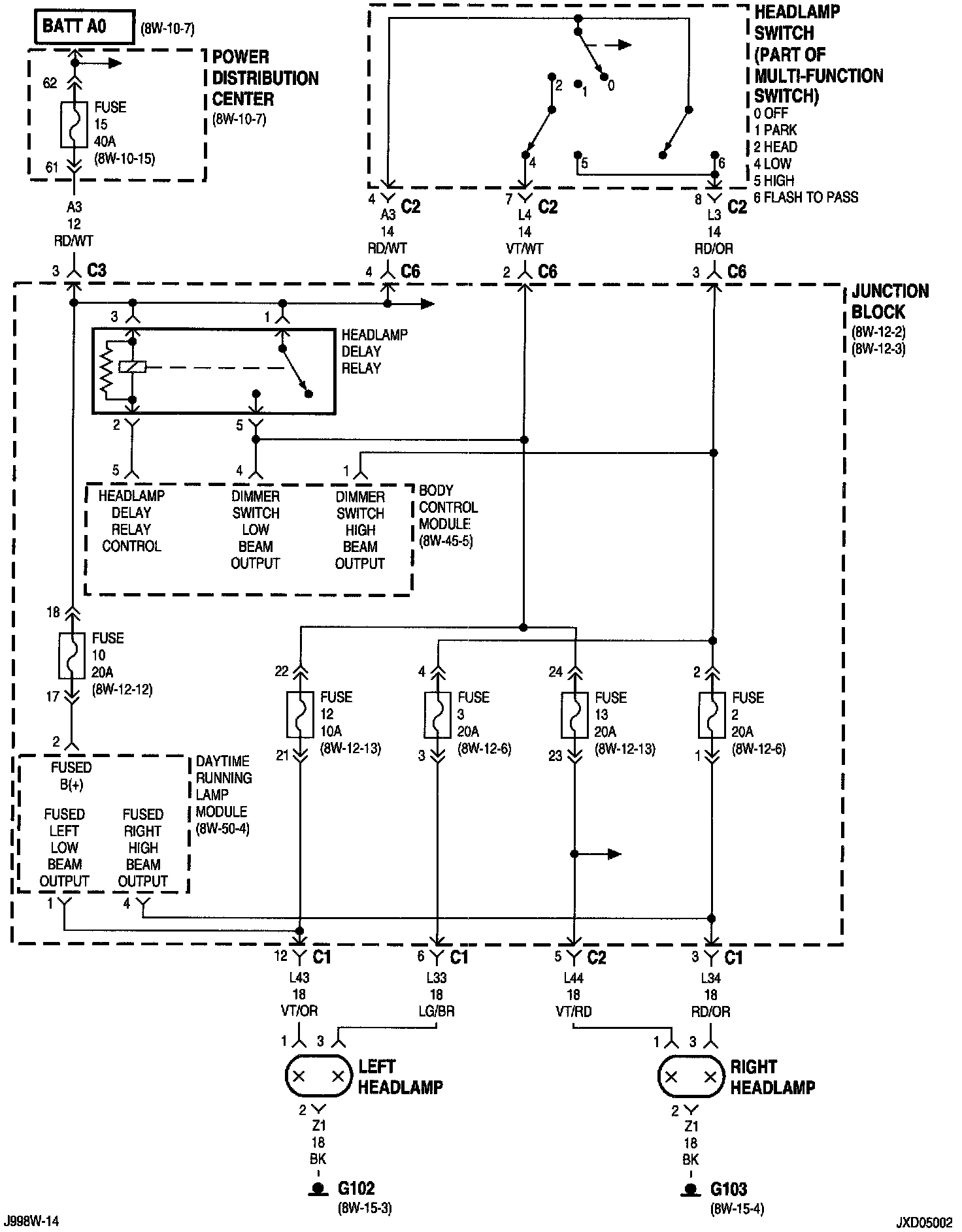

Front Lighting 8w-50-2:

Body Control Module
Daytime Running Lamp Module
Fuse 2 (JB)
Fuse 3 (JB)
Fuse 10 (JB)
Fuse 12 (JB)
Fuse 13 (JB)
Fuse 15 (PDC)
G102
G103
Headlamp Delay Relay
Headlamp Switch
Junction Block
Left Headlamp
Power Distribution Center
Right Headlamp

Front Lighting 8w-50-3:

Body Control Module
Fuse 13 (JB)
G102
G103
Headlamp Switch
Instrument Cluster
Junction Block
Left Fog Lamp
Left Park/Turn Signal Lamp
Right Fog Lamp
Right Park/Turn Signal Lamp
Traction Control Switch
Turn Signal/Hazard Warning Switch

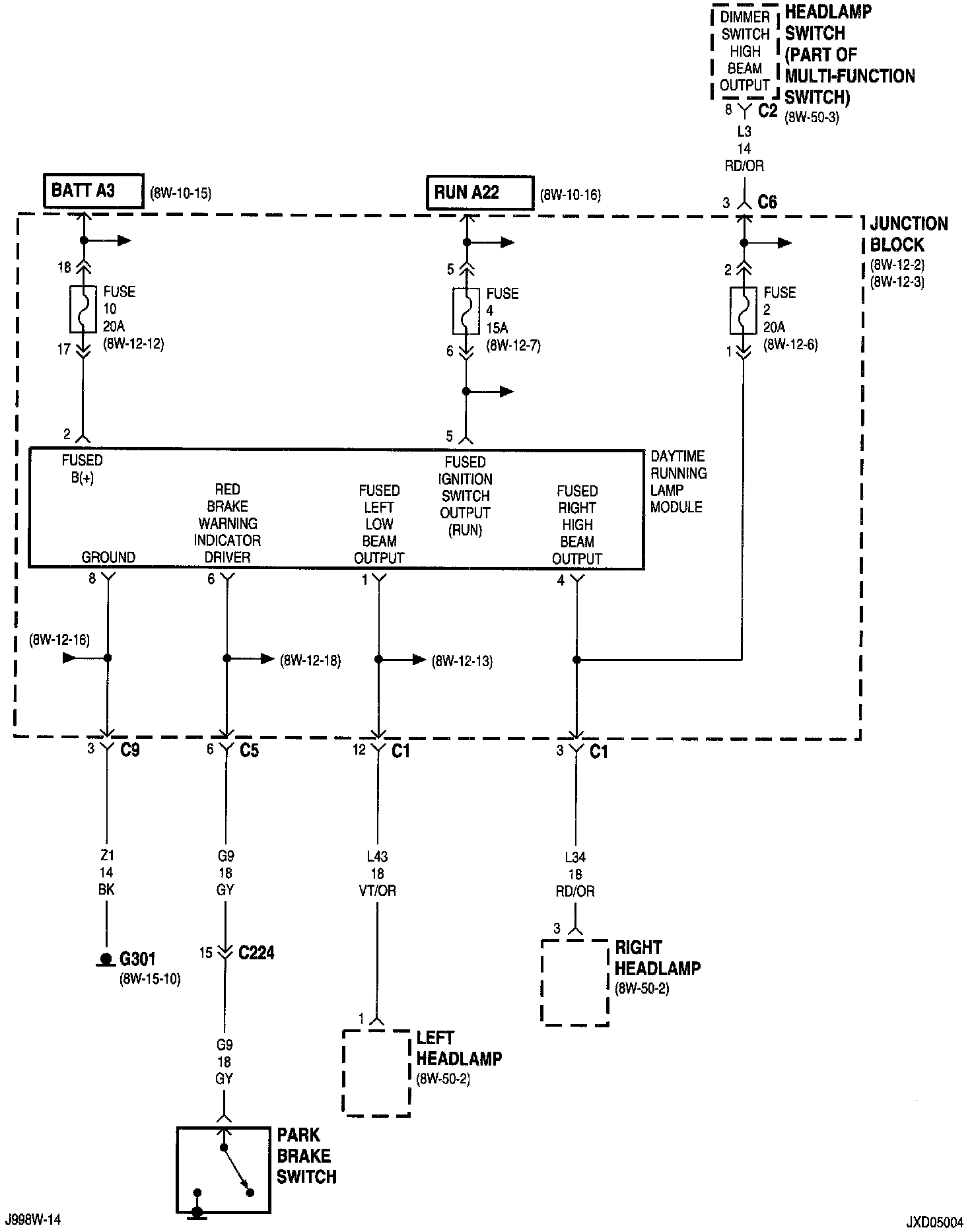

Front Lighting 8w-50-4:

Daytime Running Lamp Module
Fuse 2 (JB)
Fuse 4 (JB)
Fuse 10 (JB)
Headlamp Switch
Junction Block
Left Headlamp
Park Brake Switch
Right Headlamp


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Diagrams By Group Number.
