Home >> Chrysler >> 1999 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Group Number >> Group 8W-47 Audio System >> Sheet 8W-47-2

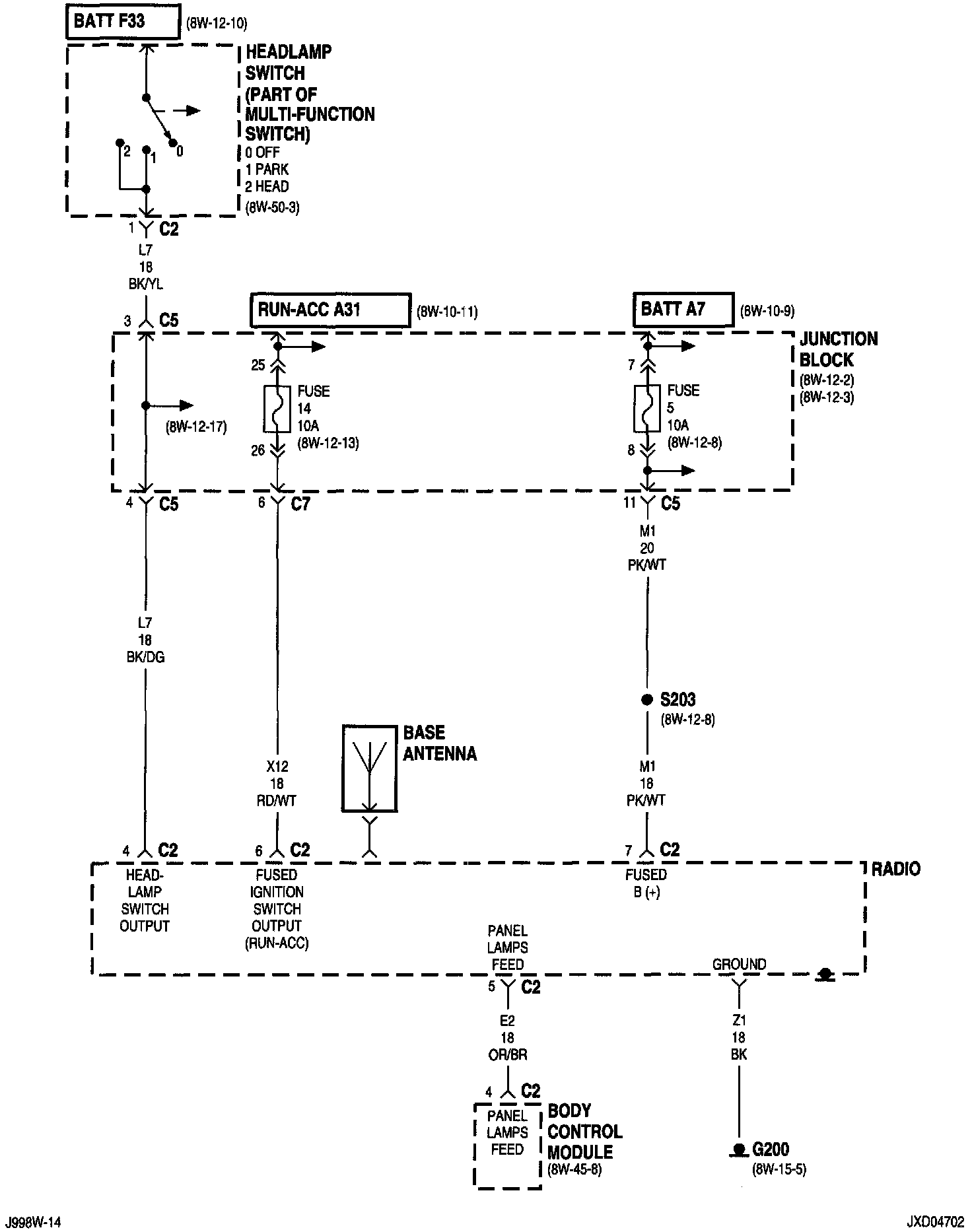

Sheet 8W-47-2

Audio System 8w-47-2:
