Home >> Chrysler >> 1999 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Group Number >> Group 8W-30 Fuel/Ignition System >> Sheet 8W-30-2

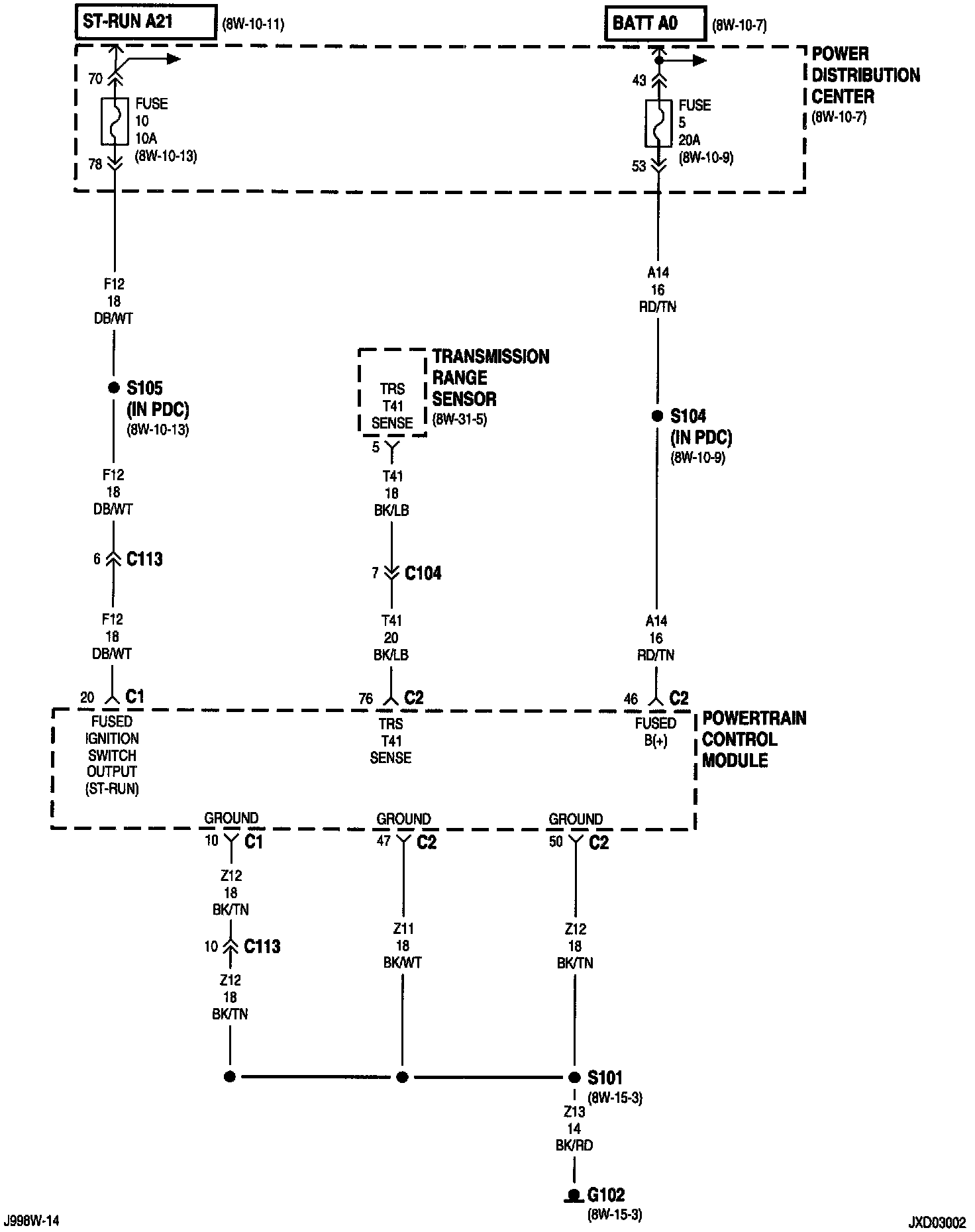

Sheet 8W-30-2

Fuel/Ignition System 8w-30-2:
