Wiring Diagrams

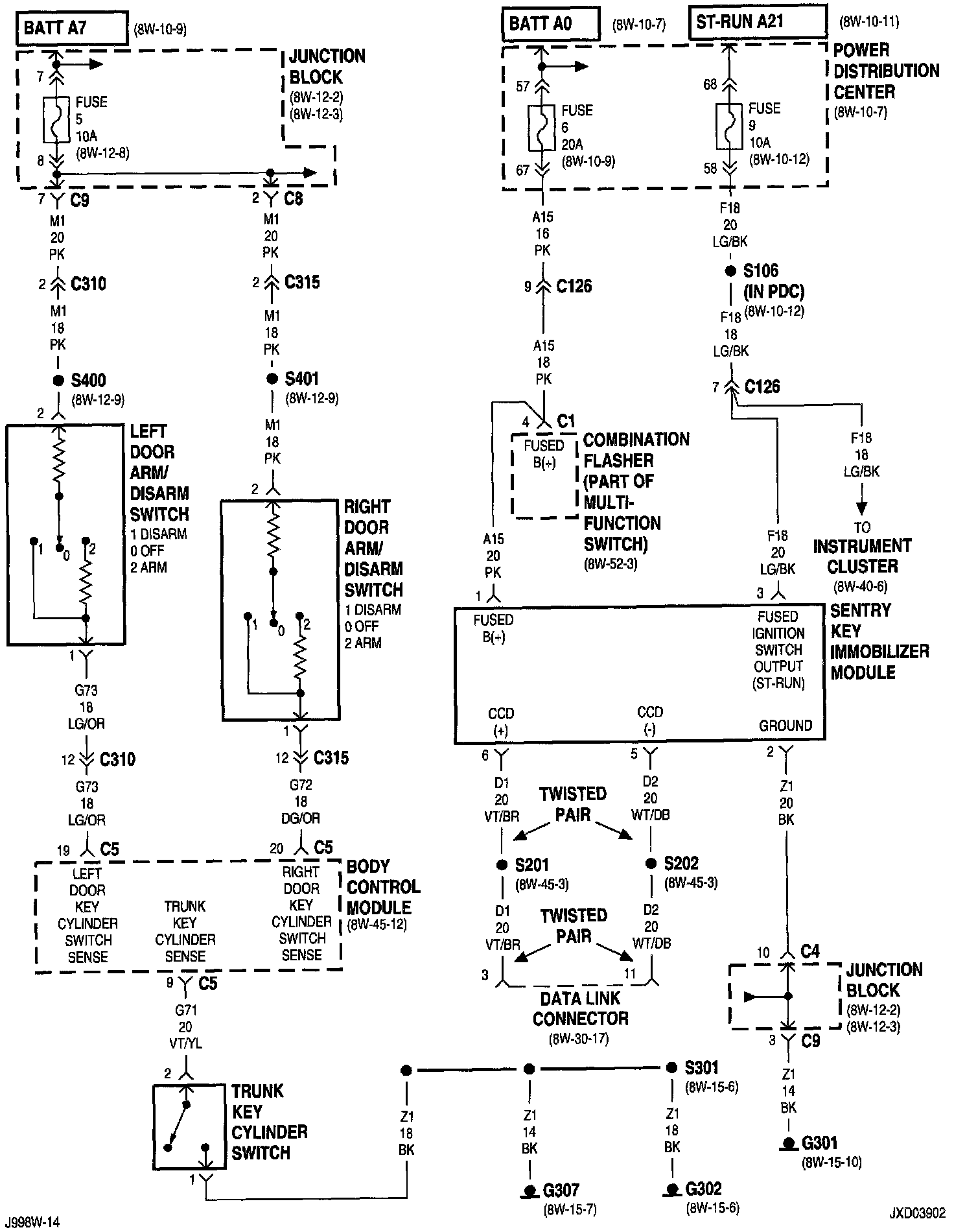

Vehicle Theft Security System 8w-39-2:

Body Control Module
Combination Flasher
Data Link Connector
Fuse 5 (JB)
Fuse 6 (PDC)
Fuse 9 (PDC)
G301
G302
G307
Instrument Cluster
Junction Block
Left Door Arm/Disarm Switch
Power Distribution Center
Right Door Arm/Disarm Switch
Sentry Key Immobilizer Module
Trunk Key Cylinder Switch

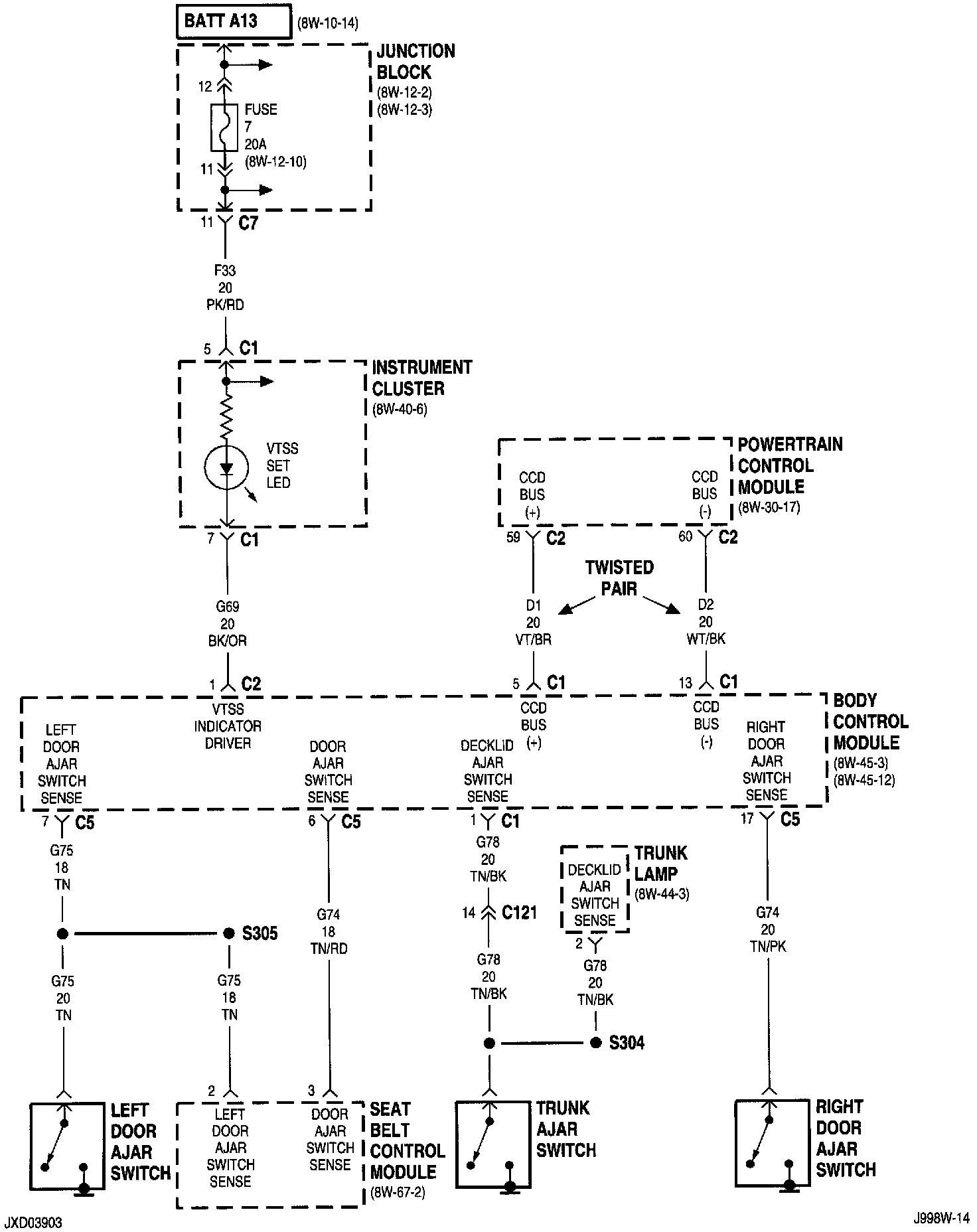

Vehicle Theft Security System 8w-39-3:

Body Control Module
Fuse 7 (JB)
Instrument Cluster
Junction Block
Left Door Ajar Switch
Poweftrain Control Module
Right Door Ajar Switch
Seat Belt Control Module
Trunk Ajar Switch
Trunk Lamp
VTSS Set LED

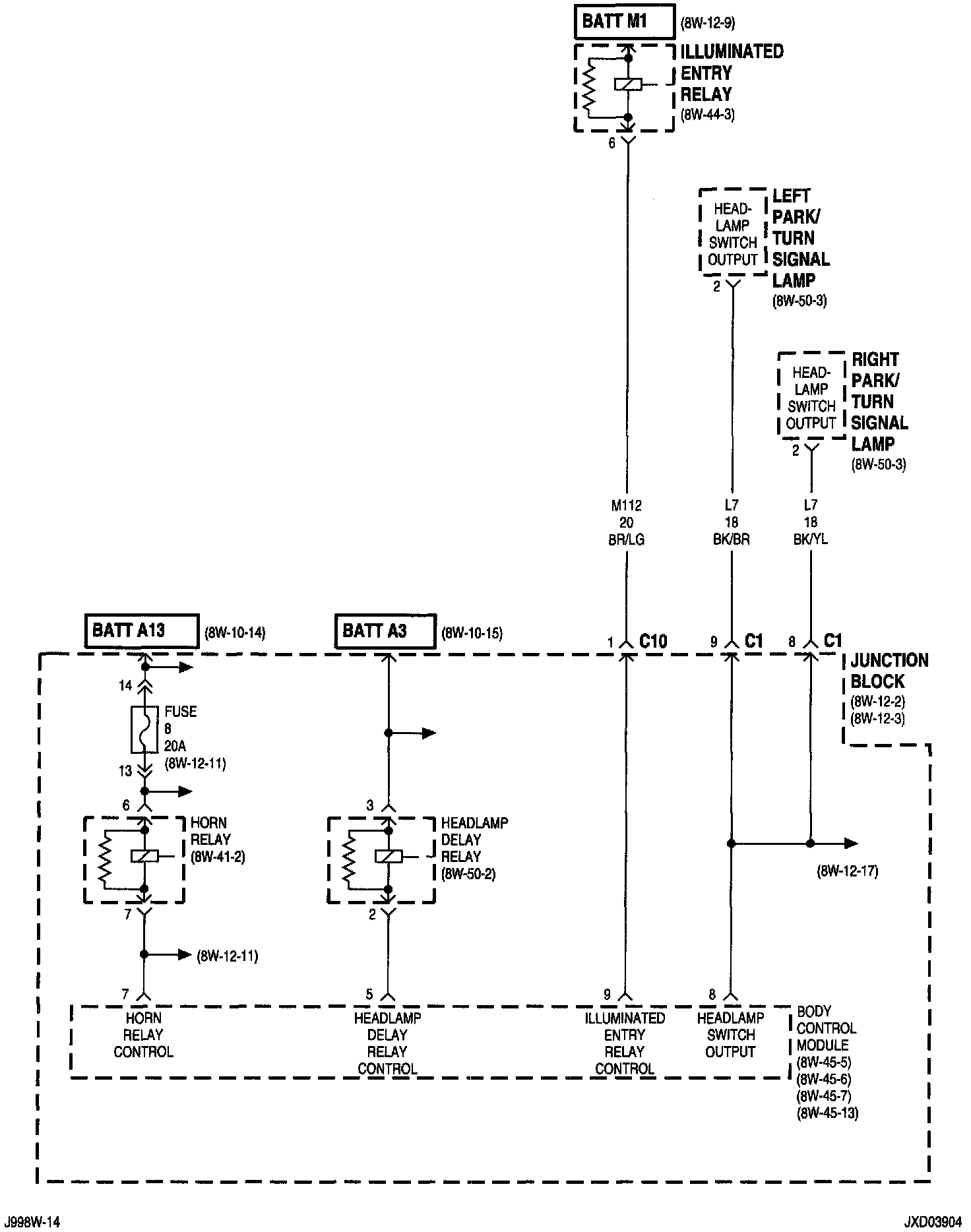

Vehicle Theft Security System 8w-39-4:

Body Control Module
Fuse 8 (JB)
Headlamp Delay Relay
Horn Relay
Illuminated Entry Relay
Junction Block
Left Park/Turn Signal Lamp
Right Park/Turn Signal Lamp


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Diagrams By Group Number.
