Home >> Chrysler >> 1999 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Diagrams >> Connector Views >> Windshield Washer Pump

Windshield Washer Pump

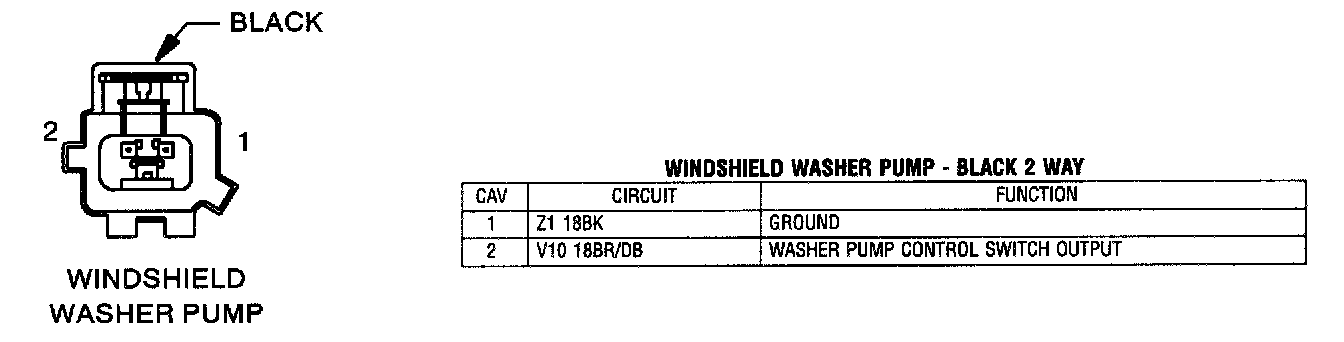

Windshield Washer Pump - Black 2 Way:
