Seat Belt

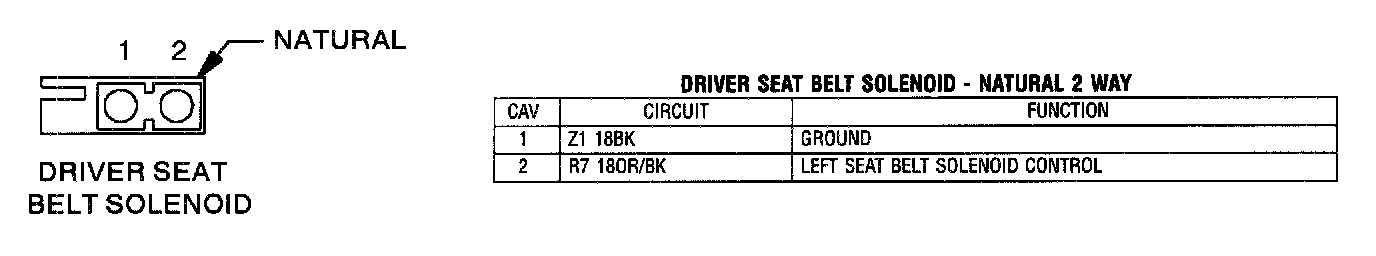

Driver Seat Belt Solenoid - Natural 2 Way:




Driver Seat Belt Solenoid - Natural 2 Way

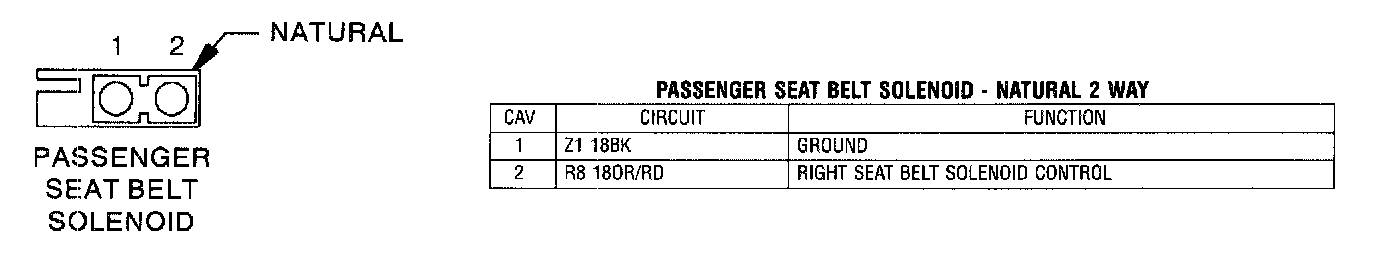

Passenger Seat Belt Solenoid:




Passenger Seat Belt Solenoid - Natural 2 Way
