Data Link Connector

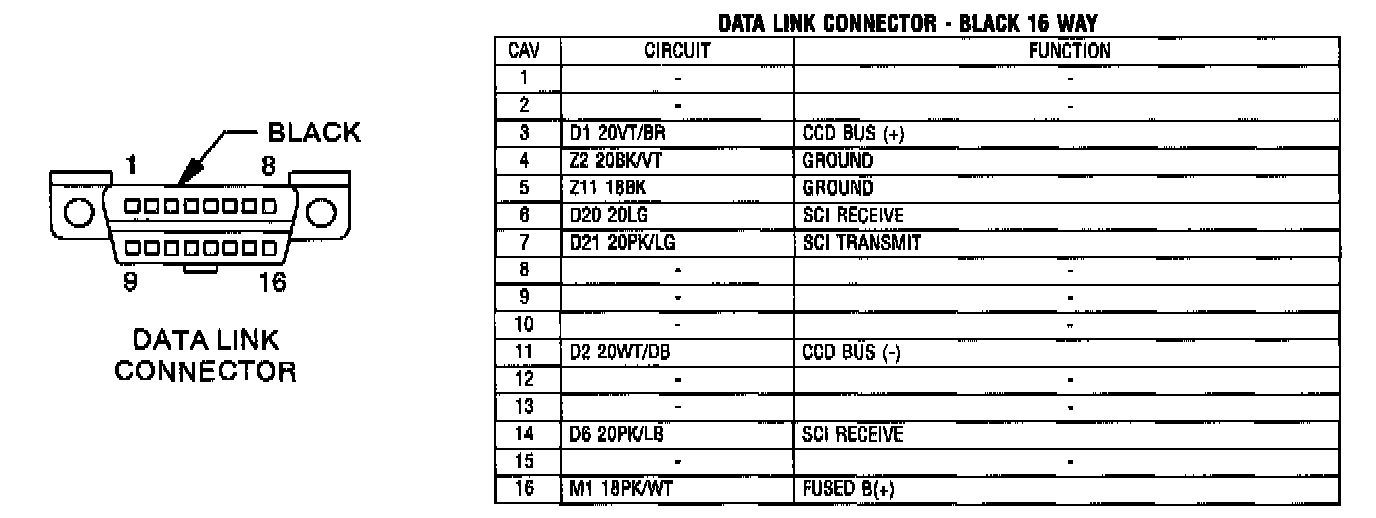

Data Link Connector Black 16 Way:

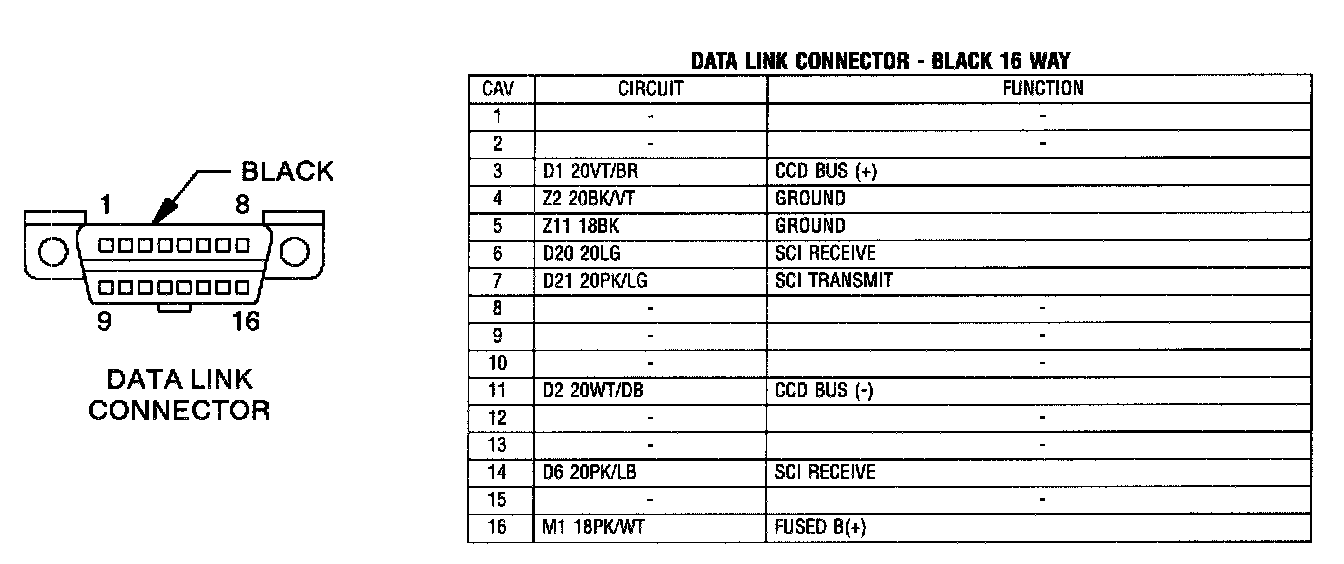

Connector Pin Identification:

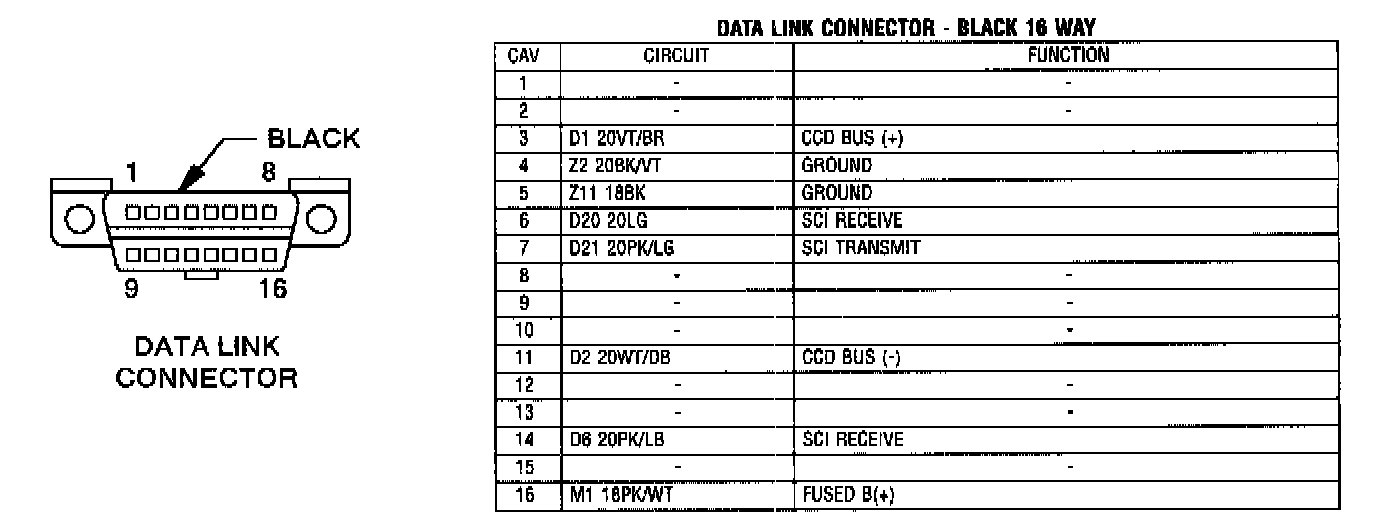

Data Link Connector - Black 16 Way:
