Home >> Chrysler >> 1999 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Body Control Module >> C2 - Natural 10 Way

C2 - Natural 10 Way

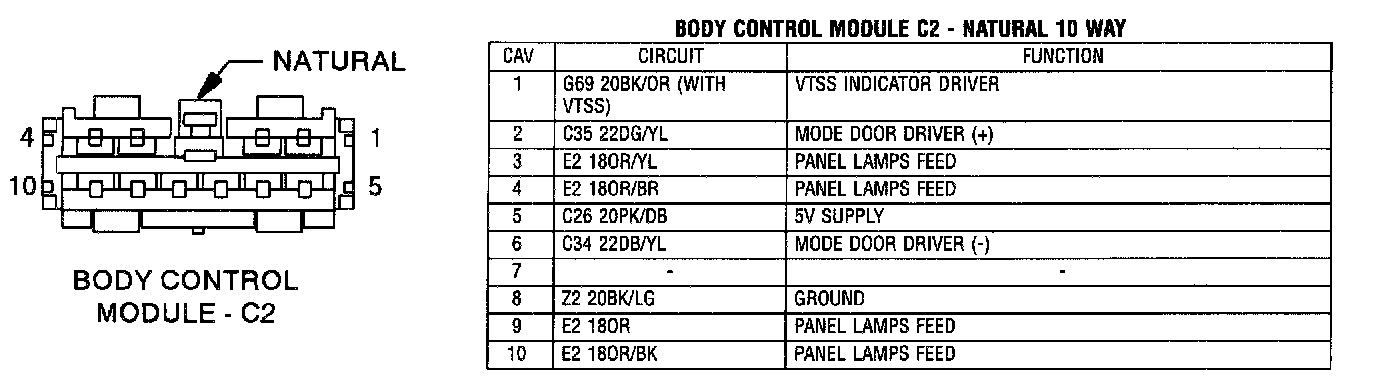

Body Control Module C2 - Natural 10 Way:
