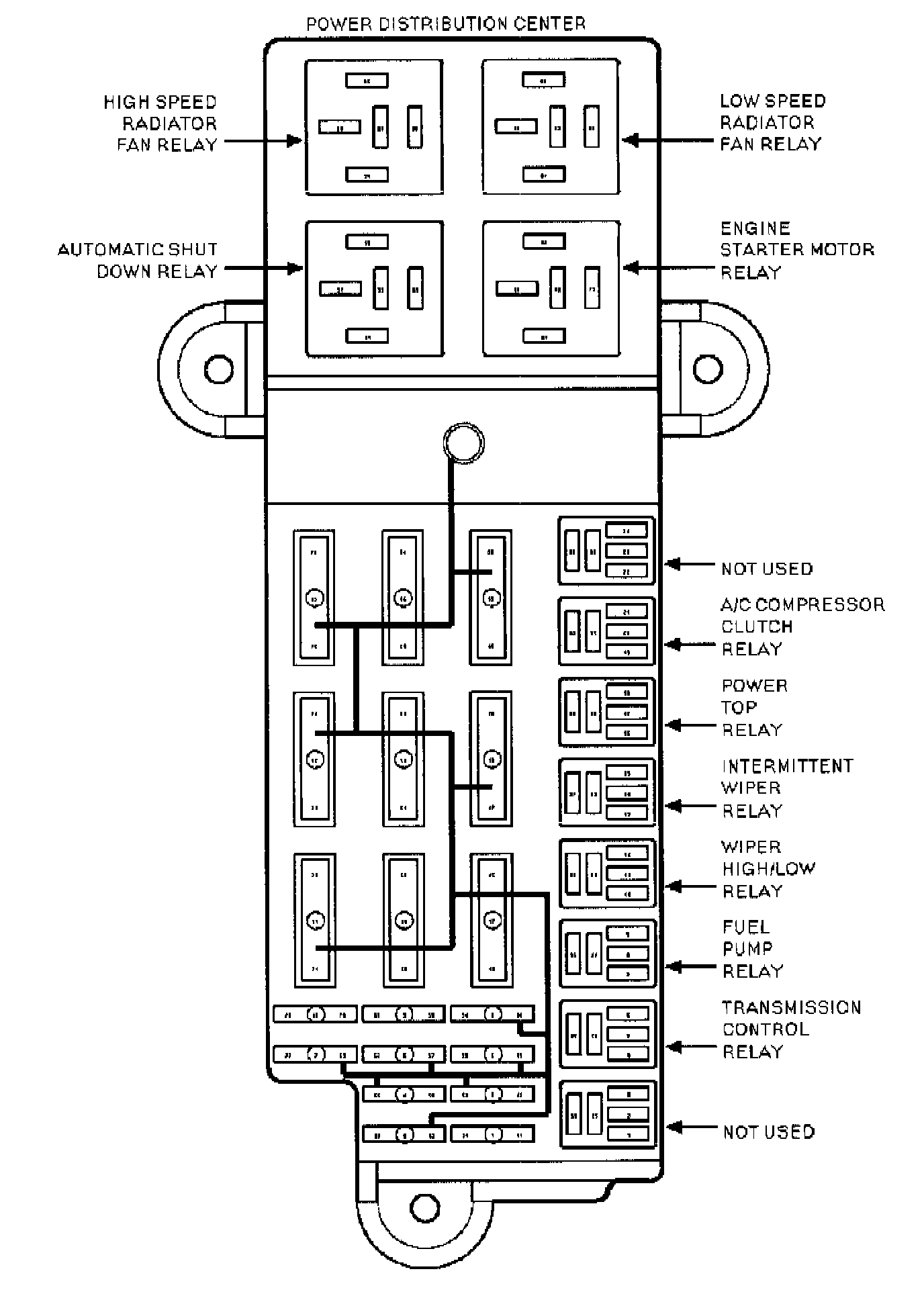

Power Distribution Block

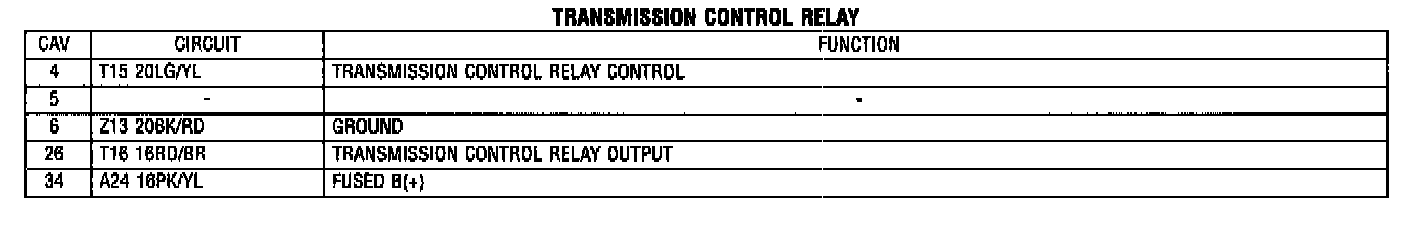

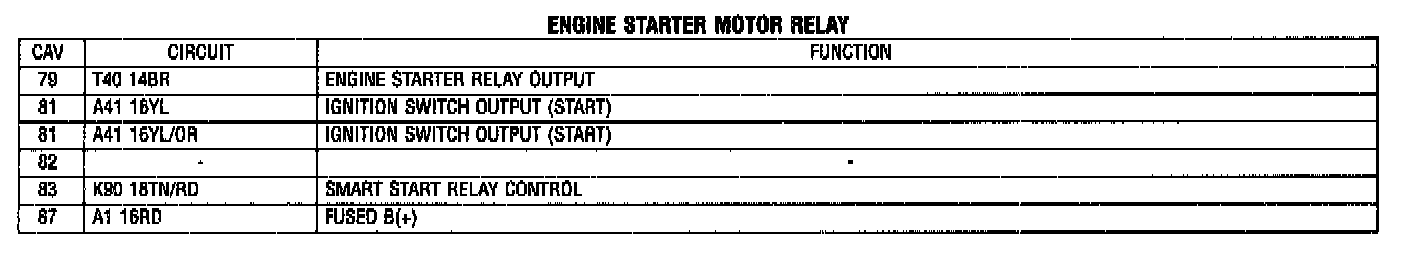

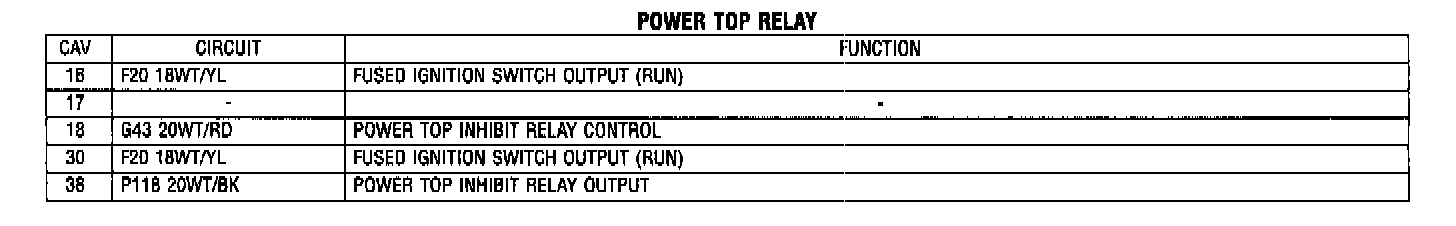

Connector Pin Identification (Part 1 Of 12):

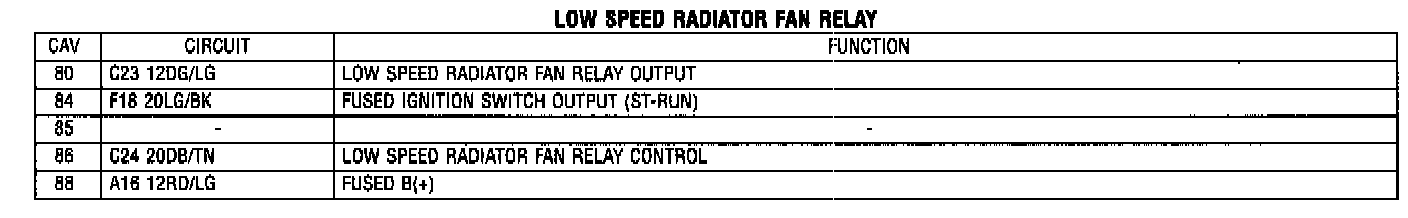

Connector Pin Identification (Part 2 Of 12):

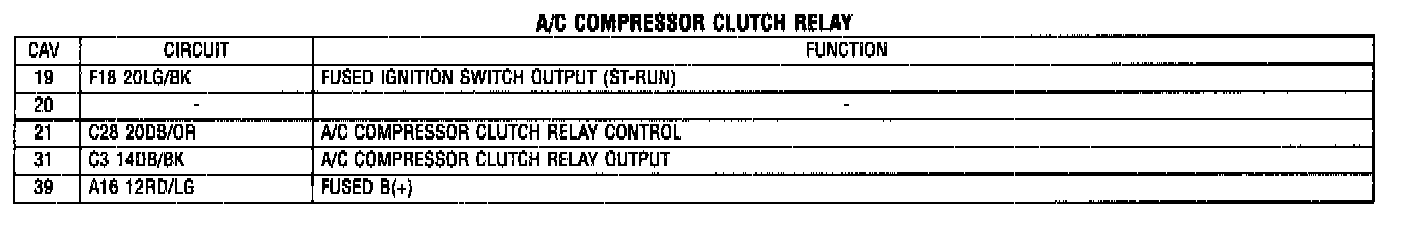

Connector Pin Identification (Part 3 Of 12):

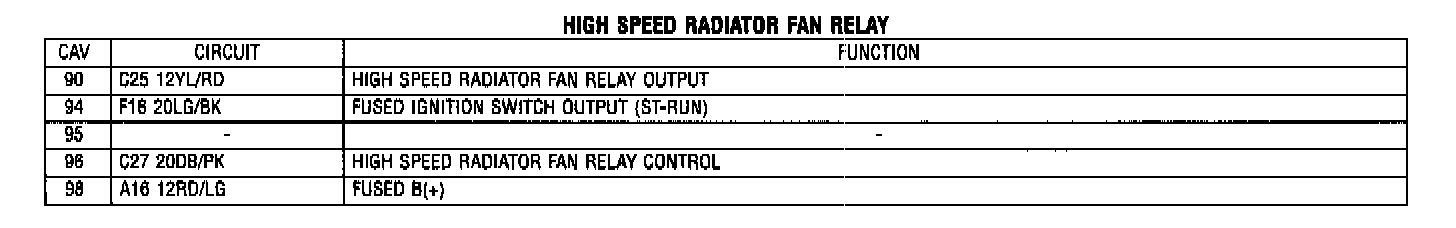

Connector Pin Identification (Part 4 Of 12):

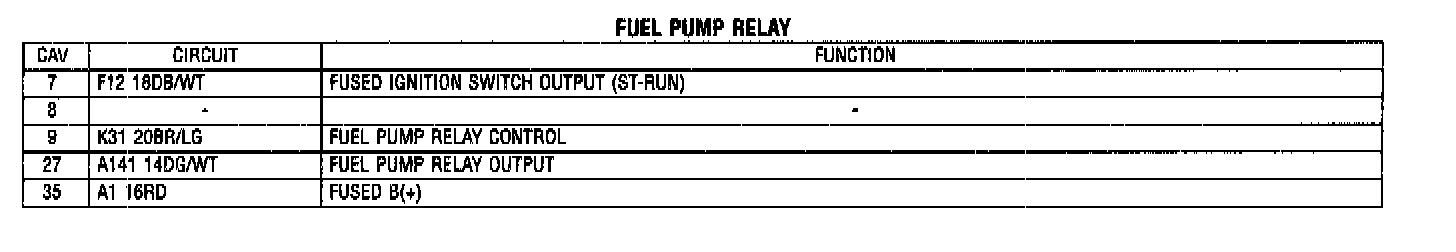

Connector Pin Identification (Part 5 Of 12):

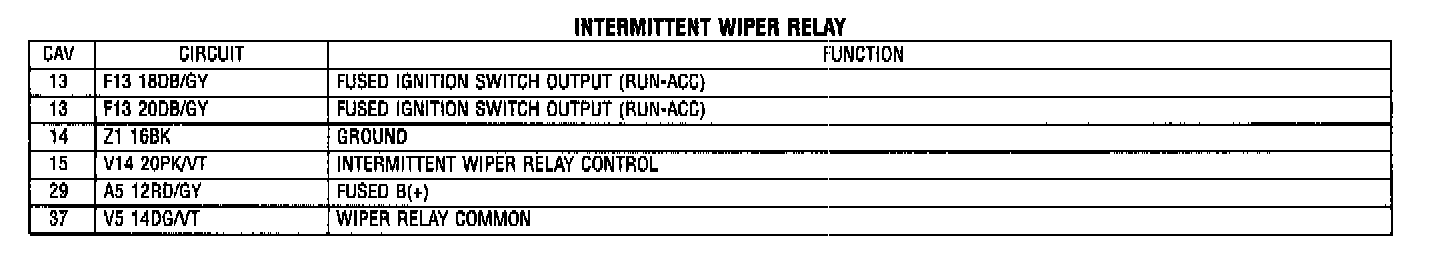

Connector Pin Identification (Part 6 Of 12):

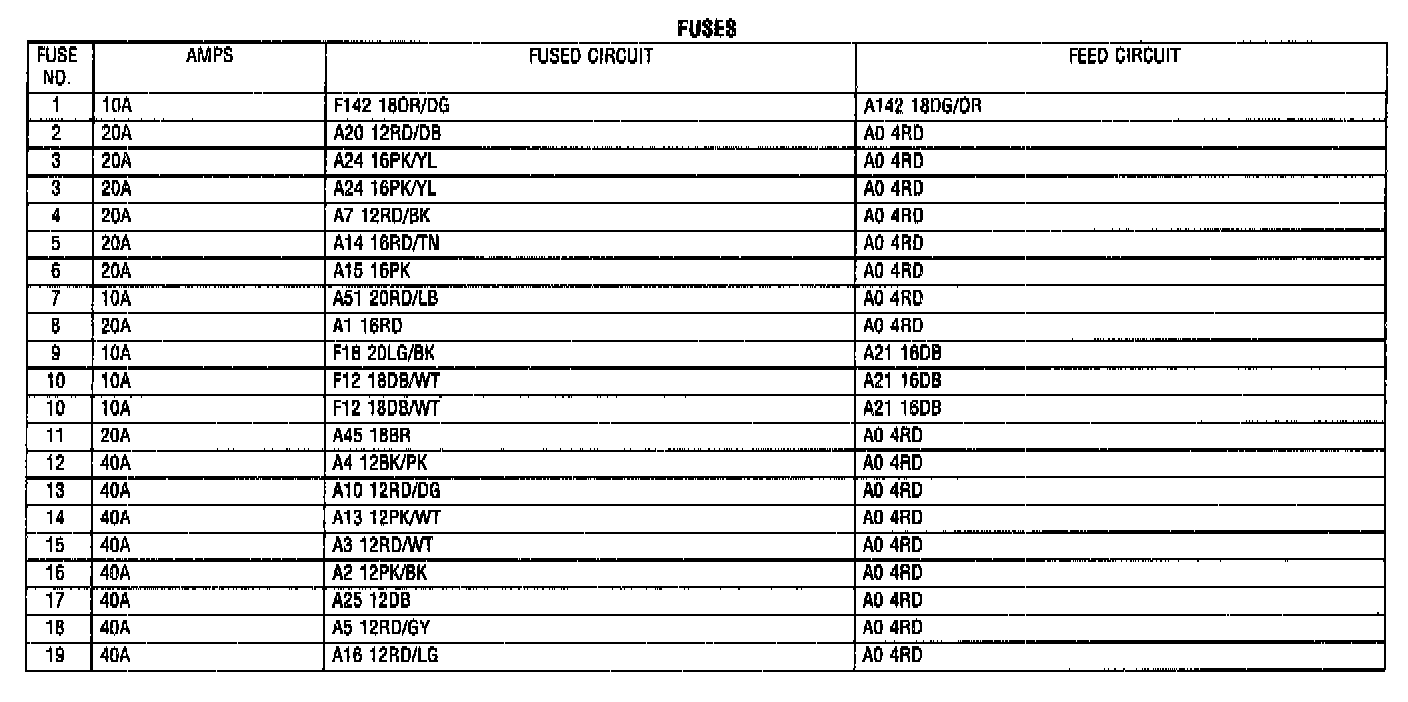

Connector Pin Identification (Part 7 Of 12):

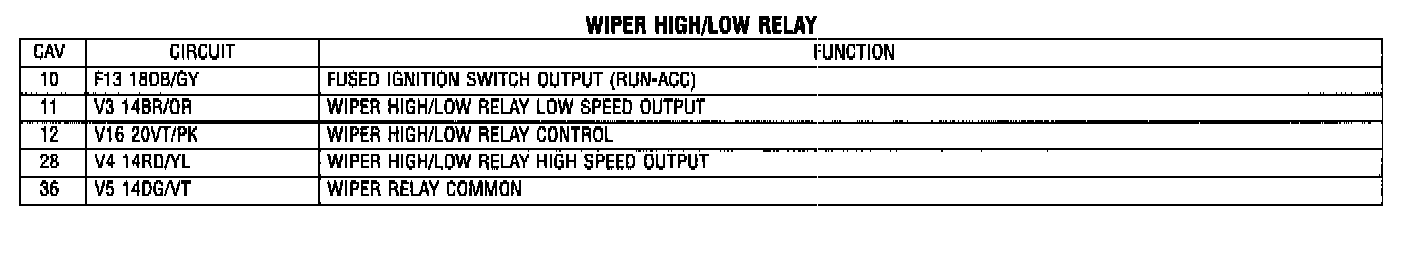

Connector Pin Identification (Part 8 Of 12):

Connector Pin Identification (Part 9 Of 12):

Connector Pin Identification (Part 10 Of 12):

Connector Pin Identification (Part 11 Of 12):

Connector Pin Identification (Part 12 Of 12):
