Home >> Chrysler >> 1999 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Diagrams >> Connector Views >> Convertible Top Relay >> Power Top Up/Down Relays - Black 6 Way

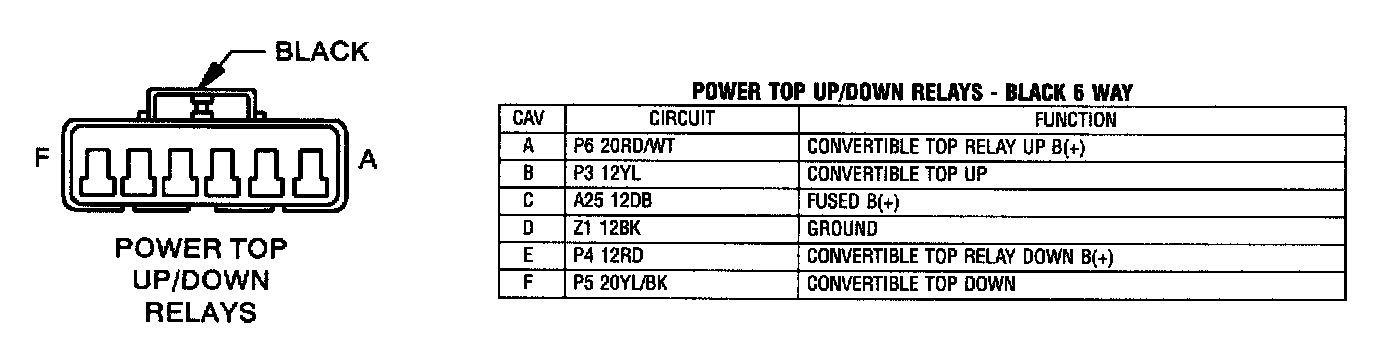

Power Top Up/Down Relays - Black 6 Way

Power Top Up/Down Relays - Black 6 Way:
