Home >> Chrysler >> 1999 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Diagrams >> Connector Views >> Convertible Top Motor

Convertible Top Motor

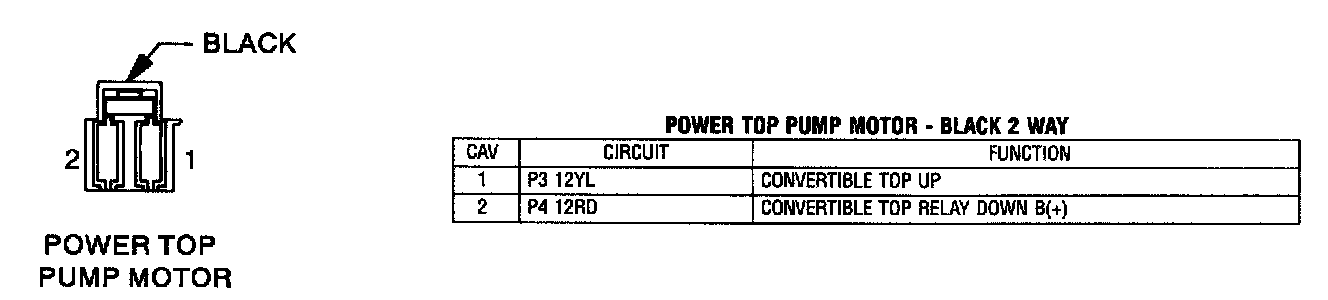

Power Top Pump Motor - Black 2 Way:

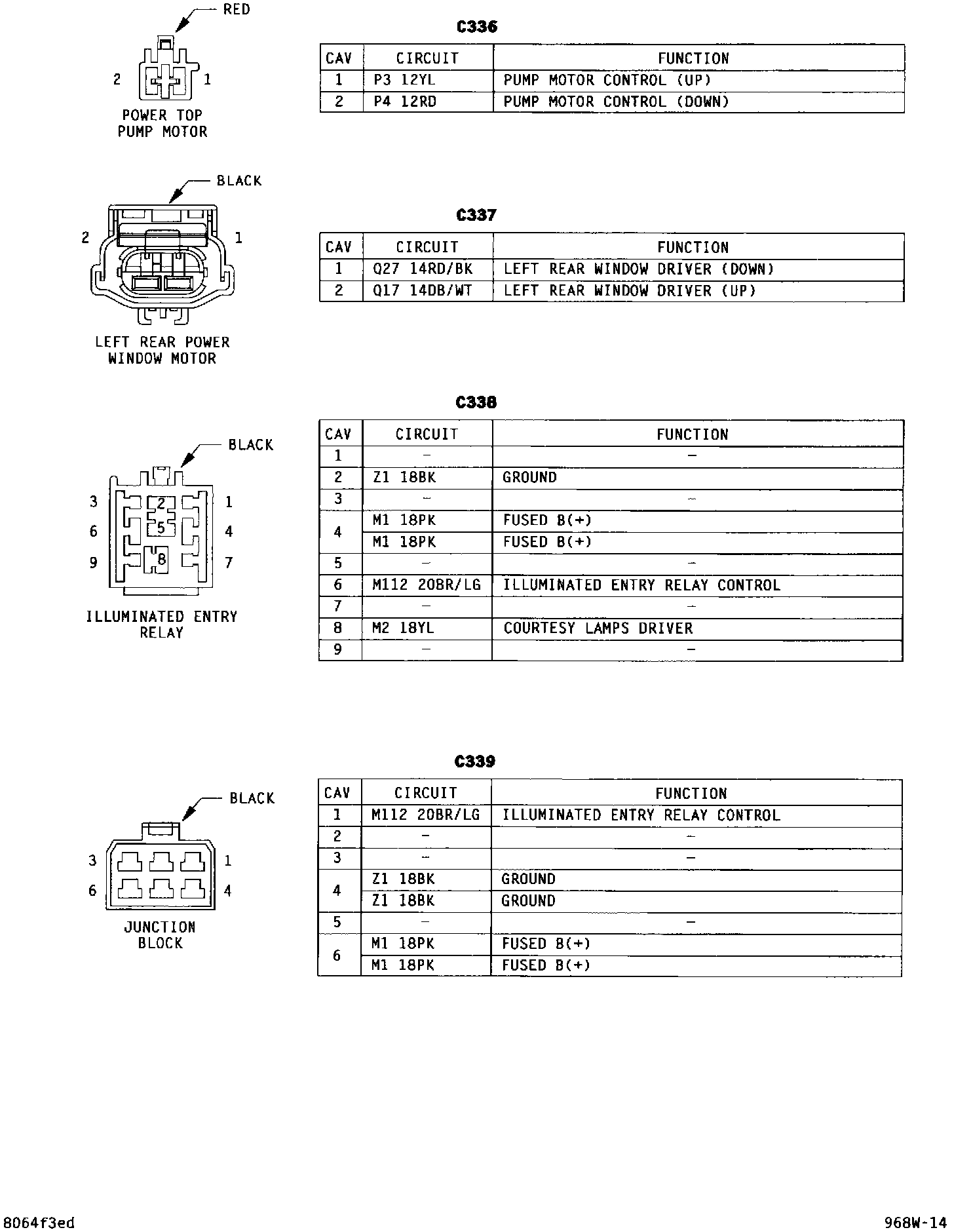

Connector Pin-Outs (Part 40 Of 52):
