Sebring Convertible L4-2.4L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brake Light Switch
Brake Light Switch

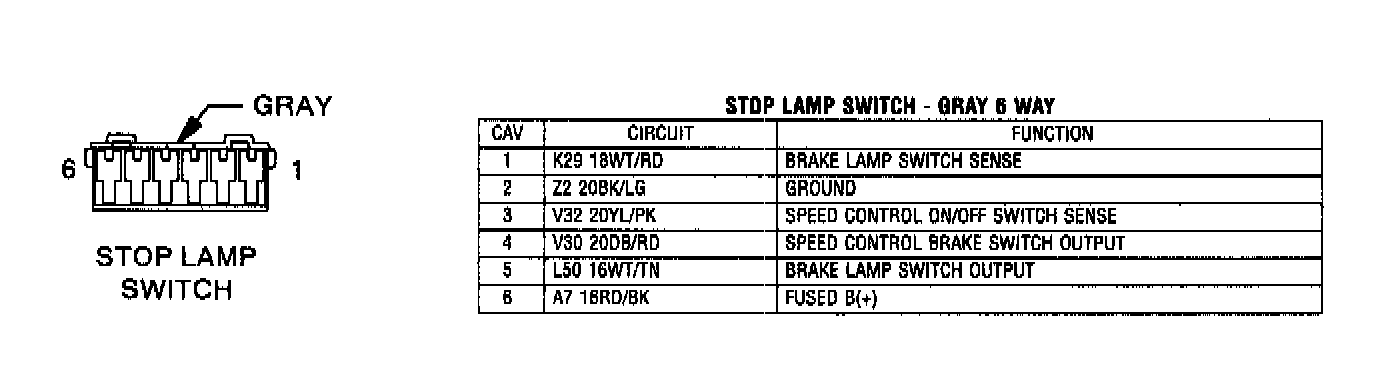

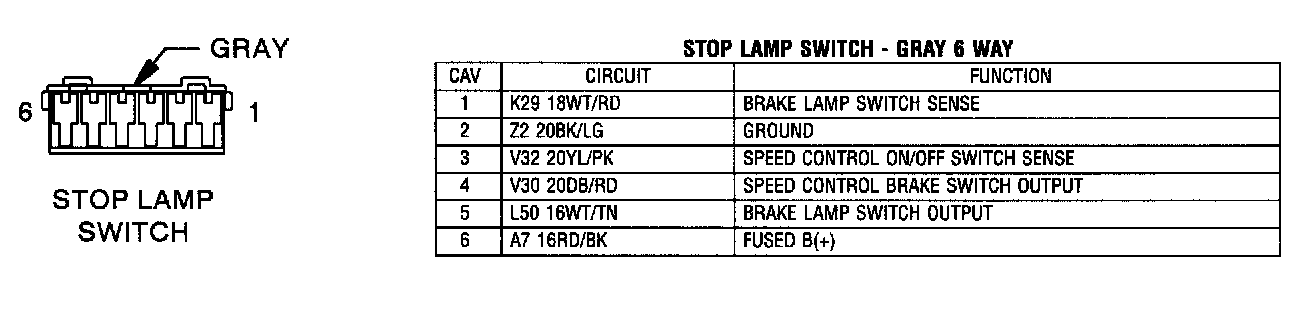

Connector Pin Identification:
Stop Lamp Switch - Gray 6 Way:
