Home >> Chrysler >> 1999 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Brakes and Traction Control >> Hydraulic System >> Hydraulic Control Assembly - Antilock Brakes >> Locations

Hydraulic Control Assembly - Antilock Brakes: Locations

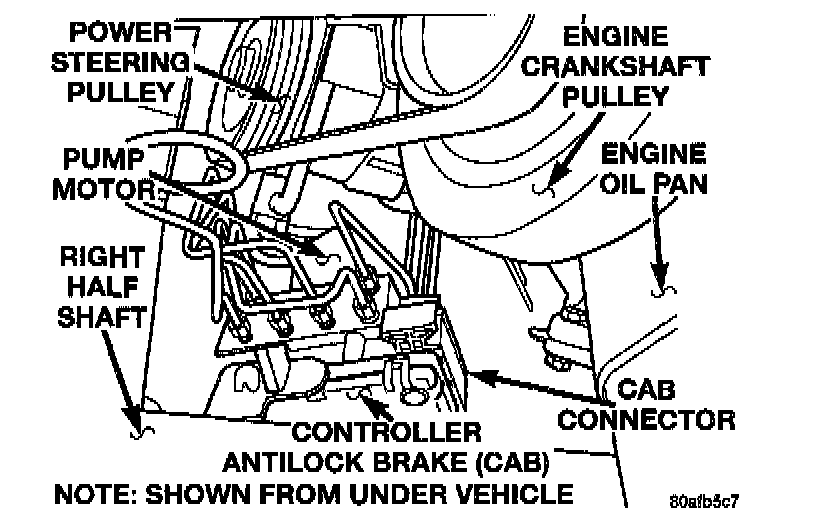

Hydraulic Control Unit:
