With Antilock Brakes

NOTE: The following procedure is for the removal and installation of one of two proportioning valves on a vehicle equipped with ABS. For removal and installation of proportioning valves on a vehicle without ABS, refer to Proportioning Valve under Hydraulic System.

REMOVAL

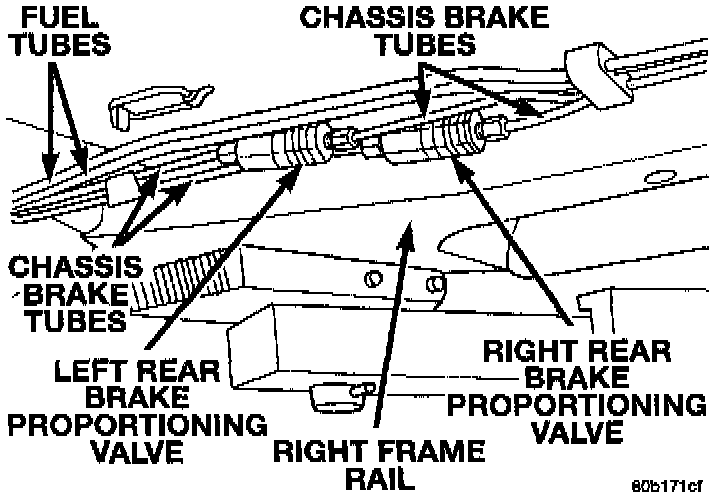

Proportioning Valve Location:

1. Remove the chassis brake tubes from the proportioning valve controlling the rear wheel of the vehicle which has premature wheel skid.
2. Remove the proportioning valve from the rear brake chassis tube.

INSTALLATION
1. Install the proportioning valve in the chassis brake tube.
2. Tighten both tube nuts on the chassis brake tubes into the proportioning valve to a torque of 17 Nm (145 inch lbs.).
3. Bleed the affected brake line. See Brake Bleeding.
