Rear Disc Brakes

The rear disc brakes are similar to the front disc brakes, however, there are several distinctive features that require different service procedures. The single piston, floating caliper rear disc brake assembly includes a hub and bearing assembly, adapter, brake rotor, caliper, brake pads/linings. The parking brake system on all vehicles equipped with rear disc brakes consists of a small duo-servo drum brake mounted to the caliper adapter. The drum brake shoes expand out against a braking surface (hat section) on the inside area of the rotor.

Vehicles are equipped with a caliper assembly that has a 33.4 mm (1.31 inch) piston and uses a solid non-vented rotor.

The caliper assembly on all applications float on rubber bushings using internal metal sleeves which are attached to the adapter using threaded guide pin bolts.

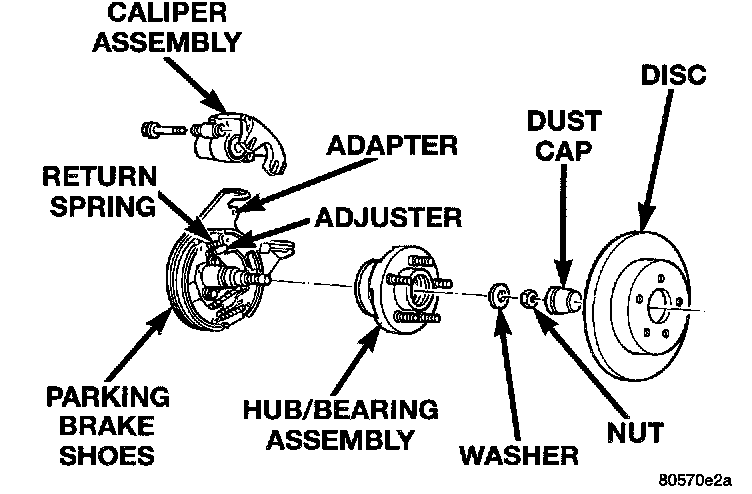

Rear Disc Brake Exploded View:

The adapter and rotor shield are mounted to the rear suspension knuckles of vehicle. The adapter is used to mount the brake shoes and actuating cables for the parking brake system. The adapter also mounts the rear caliper assembly to the vehicle. The adapter has two machined abutments which are used to position and align the caliper and brake pads for movement inboard and outboard.
