Diagnostic Self-Tests

The following information is presented to give the technician a general background on the diagnostic capabilities of the ABS system.

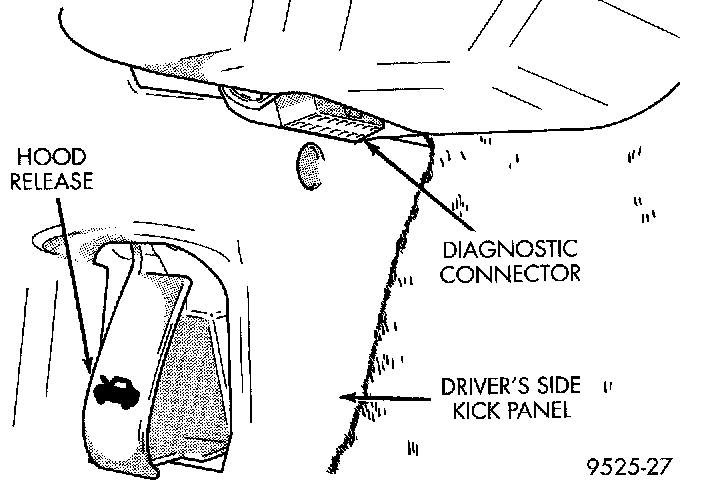

ABS System Diagnostic Connector Location:

Electronic diagnosis of the ABS used on this vehicle is performed using the DRB scan tool. The vehicle's scan tool diagnostic connector is located under the instrument panel, directly next to the left side kick panel.
