Home >> Chrysler >> 1999 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Locations

Antilock Brakes / Traction Control Systems: Locations

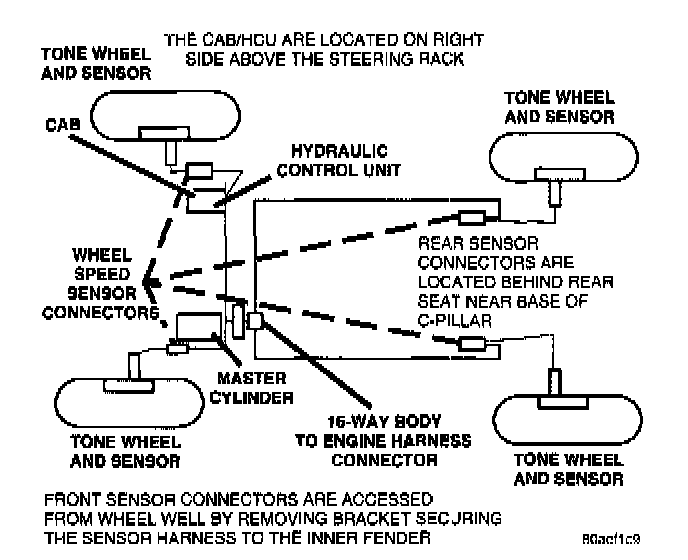

ABS Harness Routing:
