Power Seat Motor: Service and Repair

REMOVAL

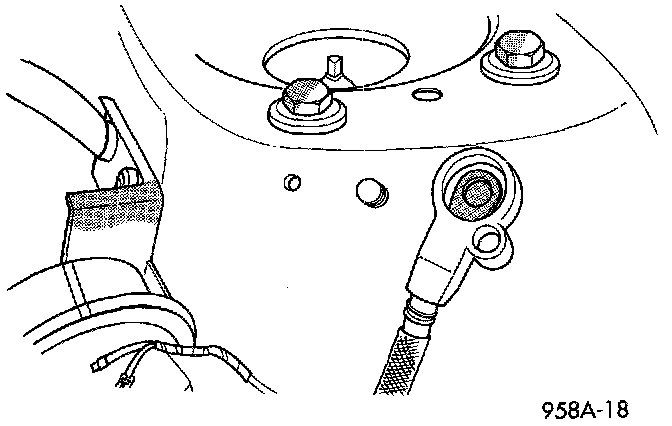

Disconnect Battery Negative Remote Cable:

1. Disconnect and isolate the battery negative remote cable.
2. Remove Front Seat Assembly from vehicle.
3. Remove Front Seat Back.
4. Separate power seat switch and harness from seat adjuster.
5. Remove four power seat adjuster mounting screws from cushion pan and remove from seat assembly.

INSTALLATION
For installation, reverse the above procedures.
