Convertible Top Hydraulic Cylinder: Service and Repair

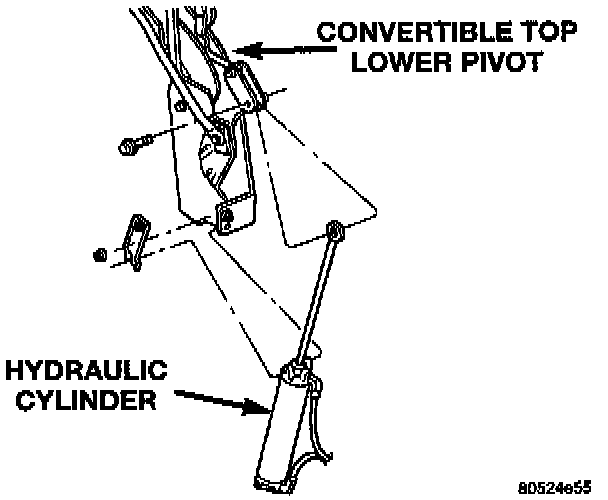

Hydraulic Cylinder:

REMOVAL
1. Disconnect battery negative cable.
2. Remove rear seat cushion and rear seat back.
3. Remove quarter trim panel.
4. Remove cylinder mounting bracket and nut.
5. Remove pivot bolt holding cylinder shaft to top linkage.
6. Disconnect hydraulic lines from the cylinder.
7. Remove cylinder from vehicle.

INSTALLATION
Reverse the preceding operation. Fill hydraulic system and check for proper operation.
