Inside Mirror/Reading Lamp Assembly Replacement

REMOVAL

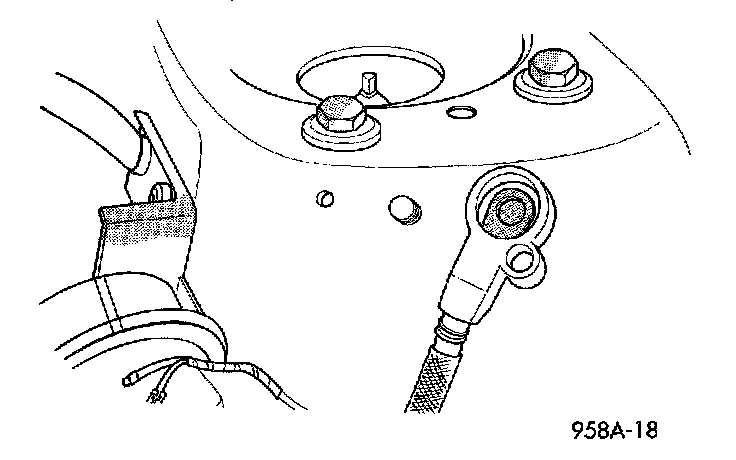

Battery Negative Remote Cable Removal:

1. Disconnect and isolate the battery negative remote cable.

Inside Mirror/Reading Lamps:

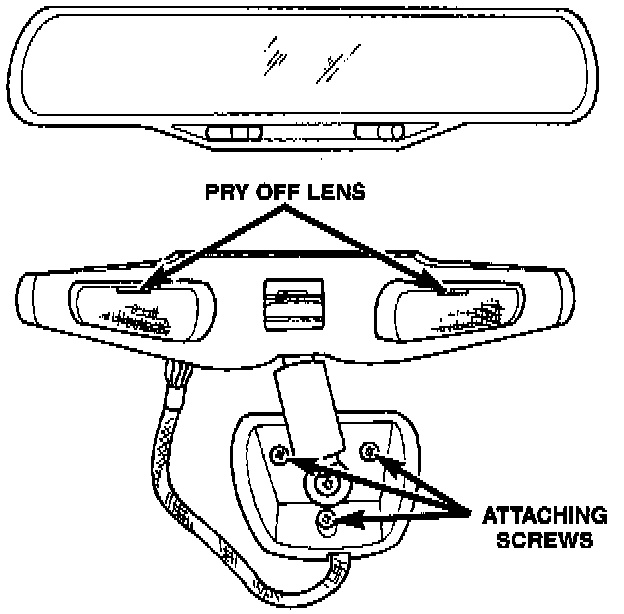

2. Remove attaching screws from header.
3. Lower mirror, and disconnect the wire harness connector.
4. Remove mirror assembly.

INSTALLATION
For installation, reverse the above procedure.
