Wiring Diagrams

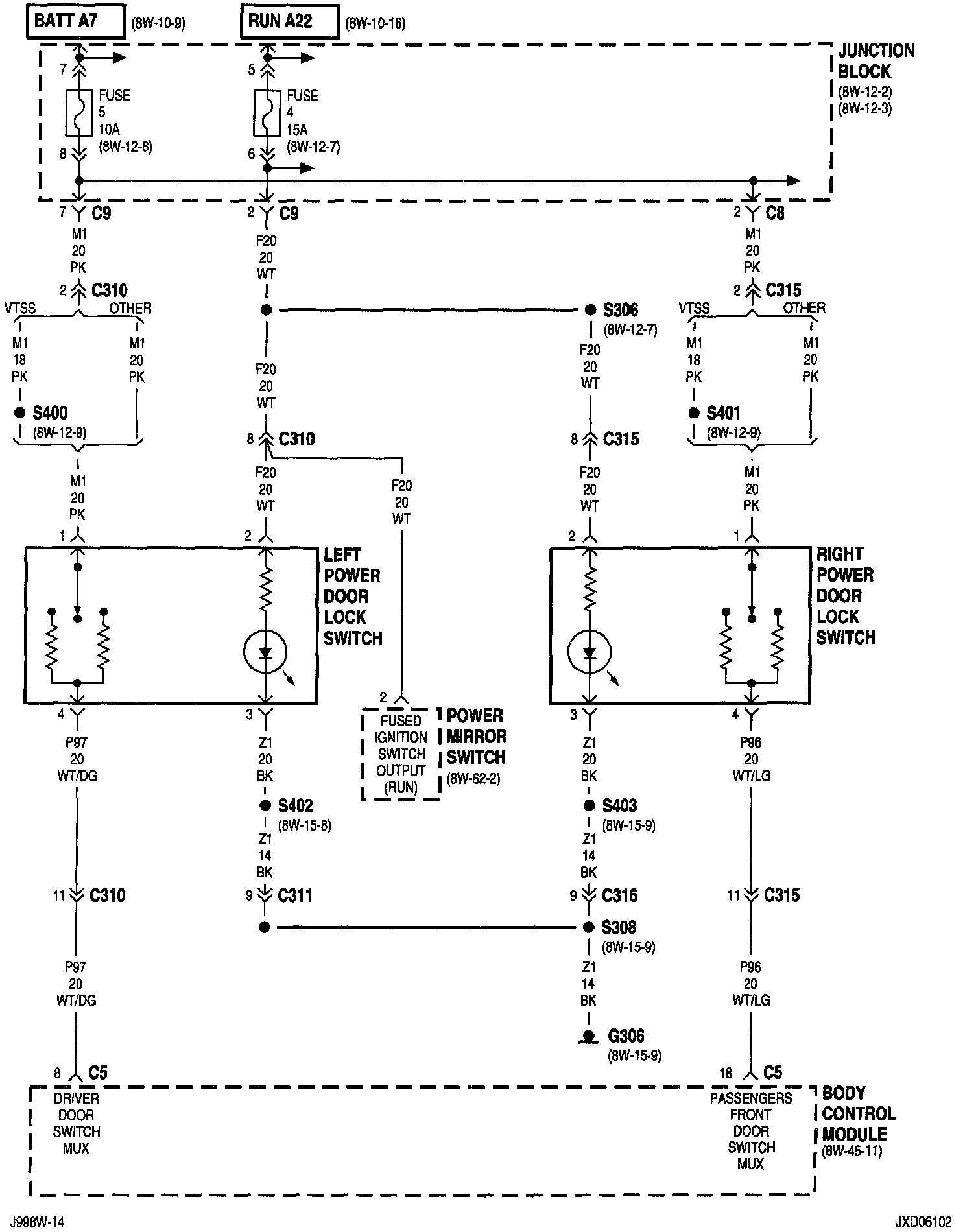

Power Locks 8w-61-2:

Body Control Module
Fuse 4 (JB)
Fuse 5 (JB)
G306
Junction Block
Left Power Door Lock Switch
Power Mirror Switch
Right Power Door Lock Switch

Power Locks 8w-61-3:

Body Control Module
Left Power Door Lock Motor
Left Remote Keyless Entry Antenna
Right Power Door Lock Motor
Right Remote Keyless Entry Antenna

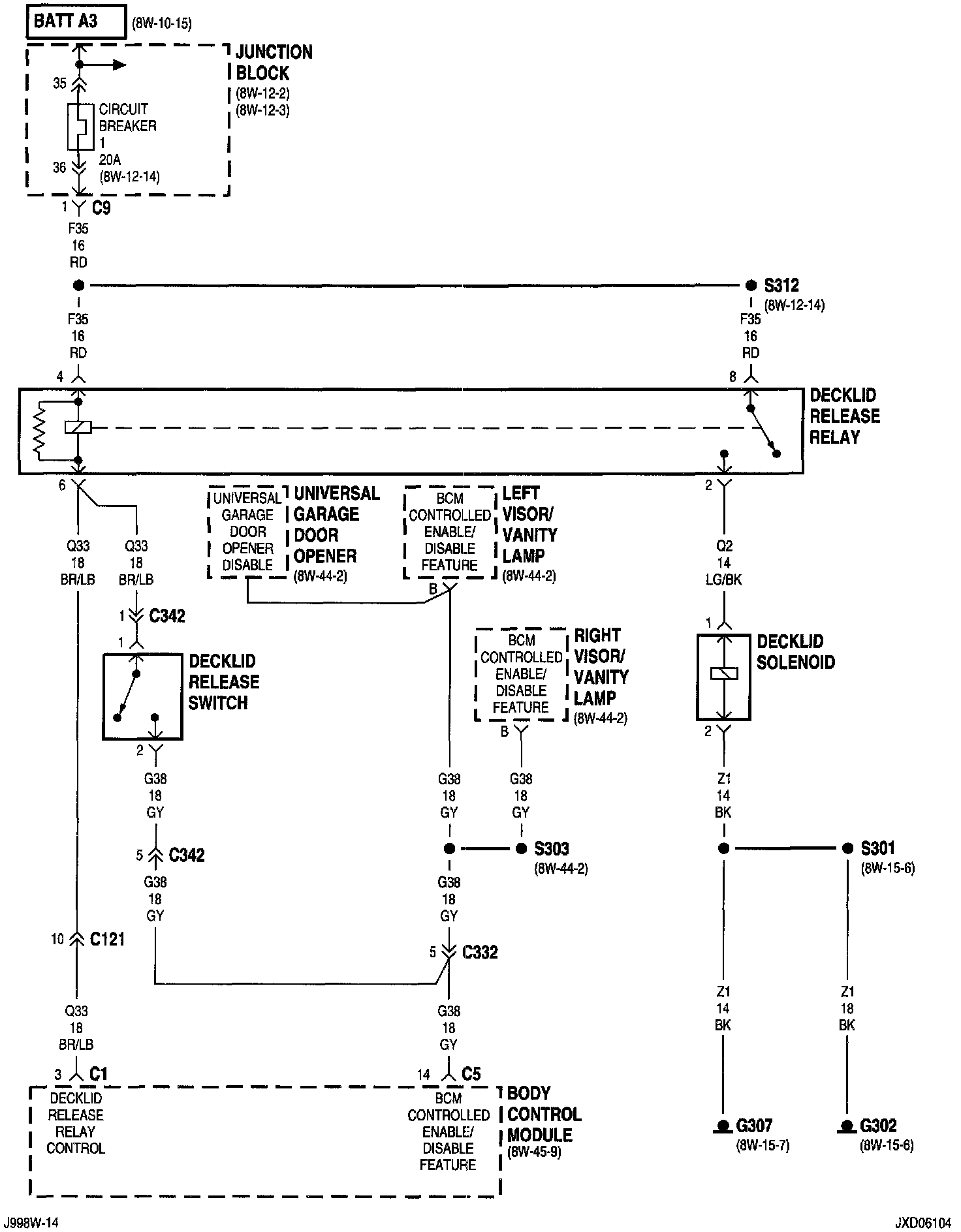

Power Locks 8w-61-4:

Body Control Module
Circuit Breaker 1 (JB)
Decklid Release Relay
Decklid Release Switch
Decklid Solenoid
G302
G307
Junction Block
Left Visor/Vanity Lamps
Right Visor/Vanity Lamps
Universal Garage Door Opener


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Diagrams By Group Number.
