Quarter Trim Panel
REMOVAL1. Lower convertible top.
2. Remove rear seat cushion and rear seat back.
3. Remove door sill trim panel.
4. Remove push-in fastener holding quarter trim panel to door sill panel.

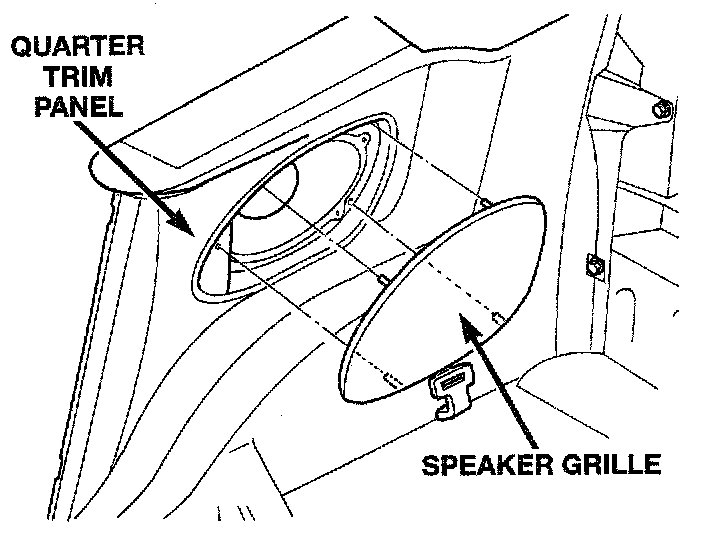

5. Remove speaker grille.

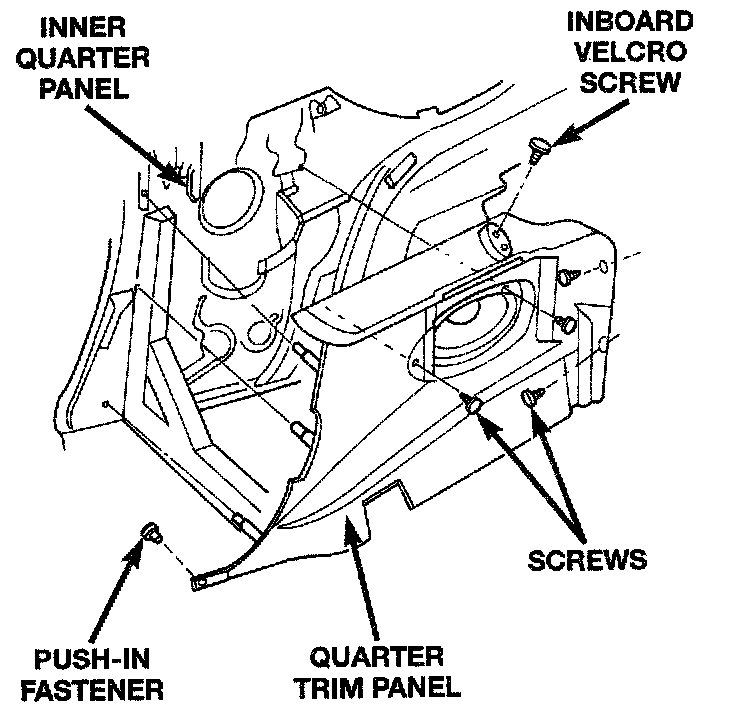

6. Remove vertical screws and inboard velcro screw holding quarter trim panel to inner quarter panel.
7. Remove screws holding quarter trim panel to inner quarter panel through the speaker opening.
8. Remove screws holding quarter trim panel to inner quarter panel at rear of trim panel.
9. Remove push-in fasteners holding quarter trim panel to inner quarter panel at front of trim panel.
10. Pull trim panel from inner quarter panel and disconnect speaker wiring connector.
11. Separate quarter trim panel from vehicle.
INSTALLATION
1. Position quarter trim panel on vehicle.
2. Connect speaker wiring connector.
3. Install push-in fasteners holding quarter trim panel to inner quarter panel at front of trim panel.
4. Install screws holding quarter trim panel to inner quarter panel through the speaker opening.
5. Install vertical screws and inboard velcro screw holding quarter trim panel to inner quarter panel.
6. Install screws holding quarter trim panel to inner quarter panel at rear of trim panel.
7. Install push-in fastener holding quarter trim panel to door sill panel.
8. Install door sill trim panel.
9. Install speaker grille.
10. Install rear seat cushion and rear seat back.
