Rear Quarter Panel Speaker(S) Replacement

CAUTION: Do not operate the radio with speaker leads detached. Damage to the output devices may result.

REMOVAL

Battery Negative Remote Cable:

1. Disconnect and isolate the battery negative remote cable.

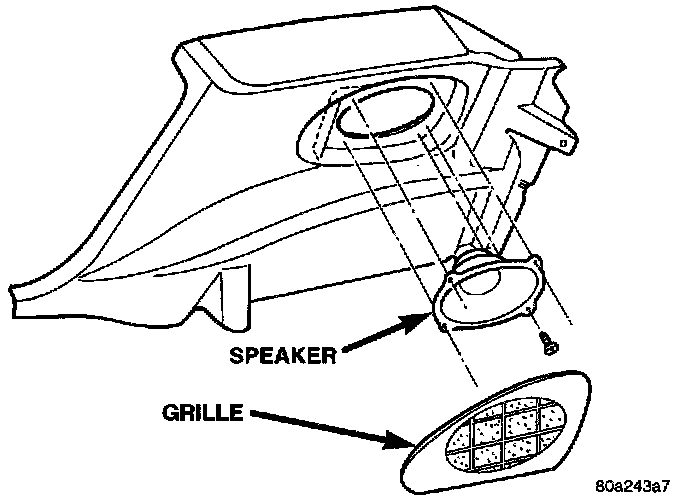

2. Remove rear quarter panel speaker grille.

Rear Speakers:

3. Remove four retaining screws.
4. Disconnect wire connector and remove speaker.

INSTALLATION
For installation reverse the above procedures. Be sure that the wire connectors are facing rearward in vehicle.
