Radio/Stereo: Service and Repair

REMOVAL

Battery Negative Remote Cable:

1. Disconnect and isolate the battery negative remote cable.

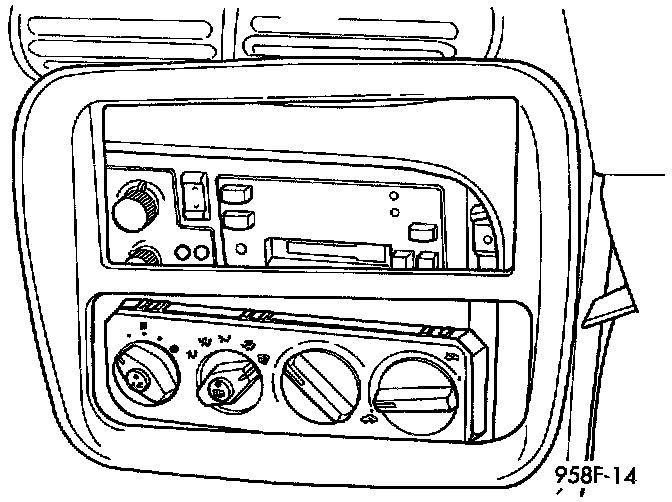

Center Bezel Removal:

2. Remove center bezel by pulling straight back.

Radio Assembly:

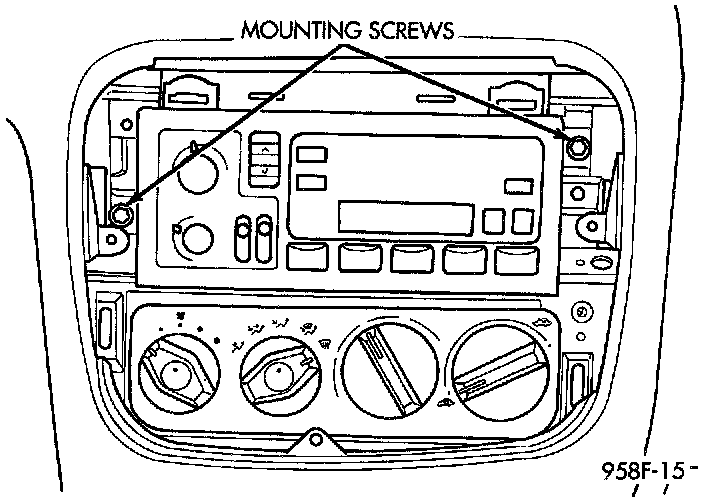

3. Remove two radio mounting screws.
4. Pull radio from panel and disconnect wire connectors and antenna lead from radio.
5. Remove radio from vehicle.

INSTALLATION
For installation, reverse the above procedures.
