Amplifier: Service and Repair

REMOVAL

Battery Negative Remote Cable:

1. Disconnect and isolate the battery negative remote cable.

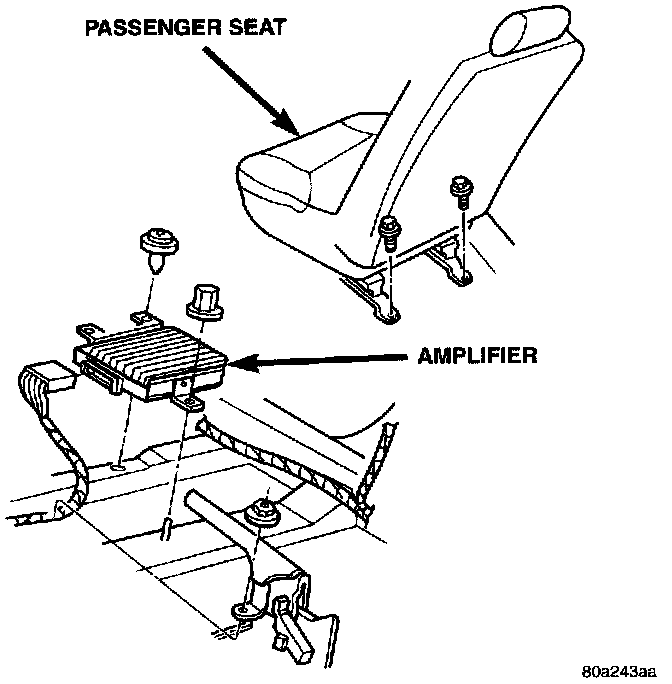

Amplifier Location:

2. Loosen the two attaching screws and the nut.
3. Disconnect the electrical connector and remove amplifier from vehicle.

INSTALLATION
For installation, reverse the above procedures. Tighten fasteners to 4 N.m (40 in. lbs.) torque.
