Vehicle Theft Security System LED Replacement

The Instrument Cluster must be removed to service the Vehicle Theft/Security System LED. Refer to Instrument Cluster Replacement.

REMOVAL

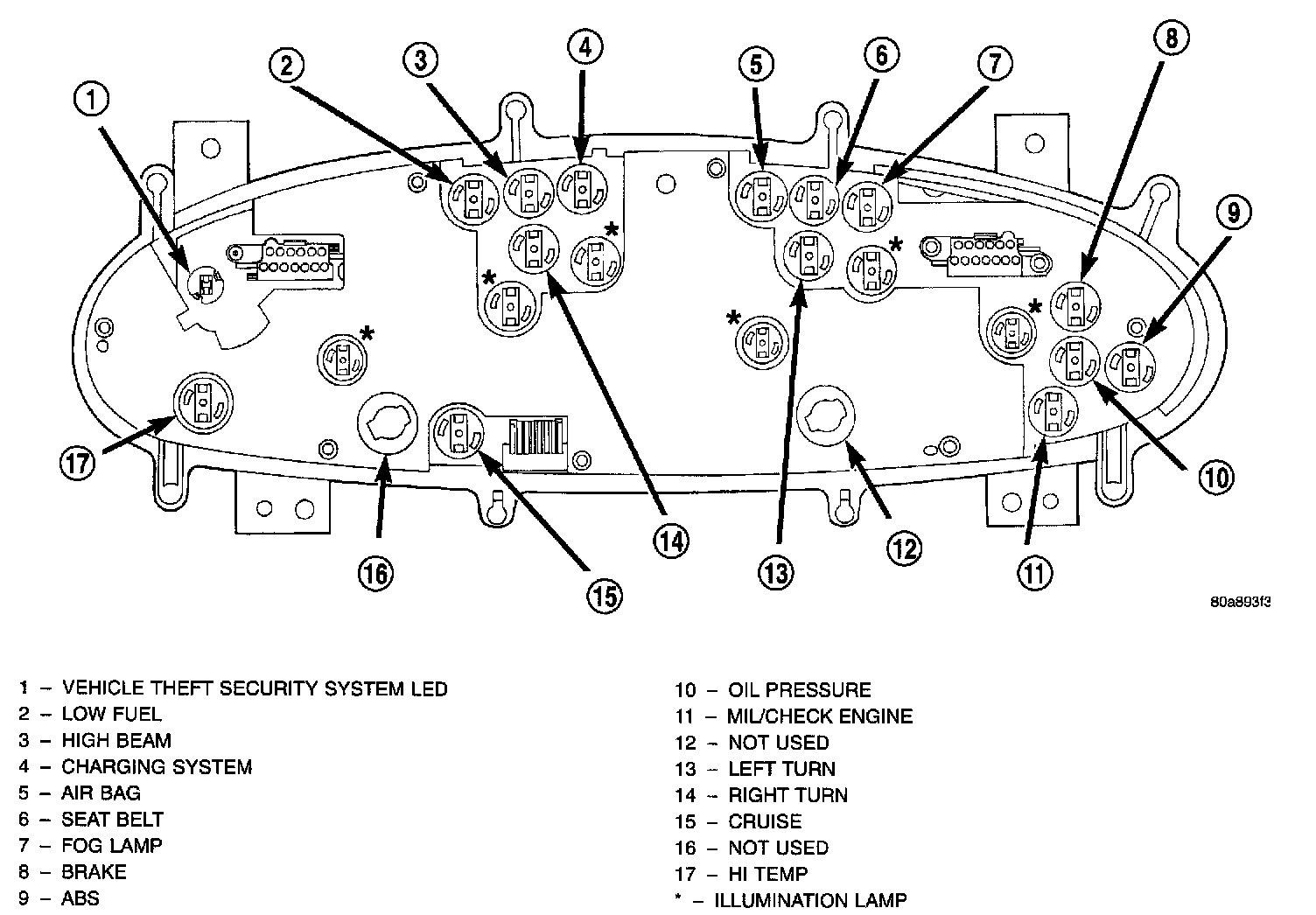

Lamp Location:

1. Disconnect Vehicle Theft/Security System LED socket assembly from the printed circuit board.
2. Rotate LED socket counter clockwise and remove from printed circuit board.

INSTALLATION
For installation reverse the above procedures.
