Performance Verification Test - Transmission Control System
Performance Verification Test - Transmission Control System

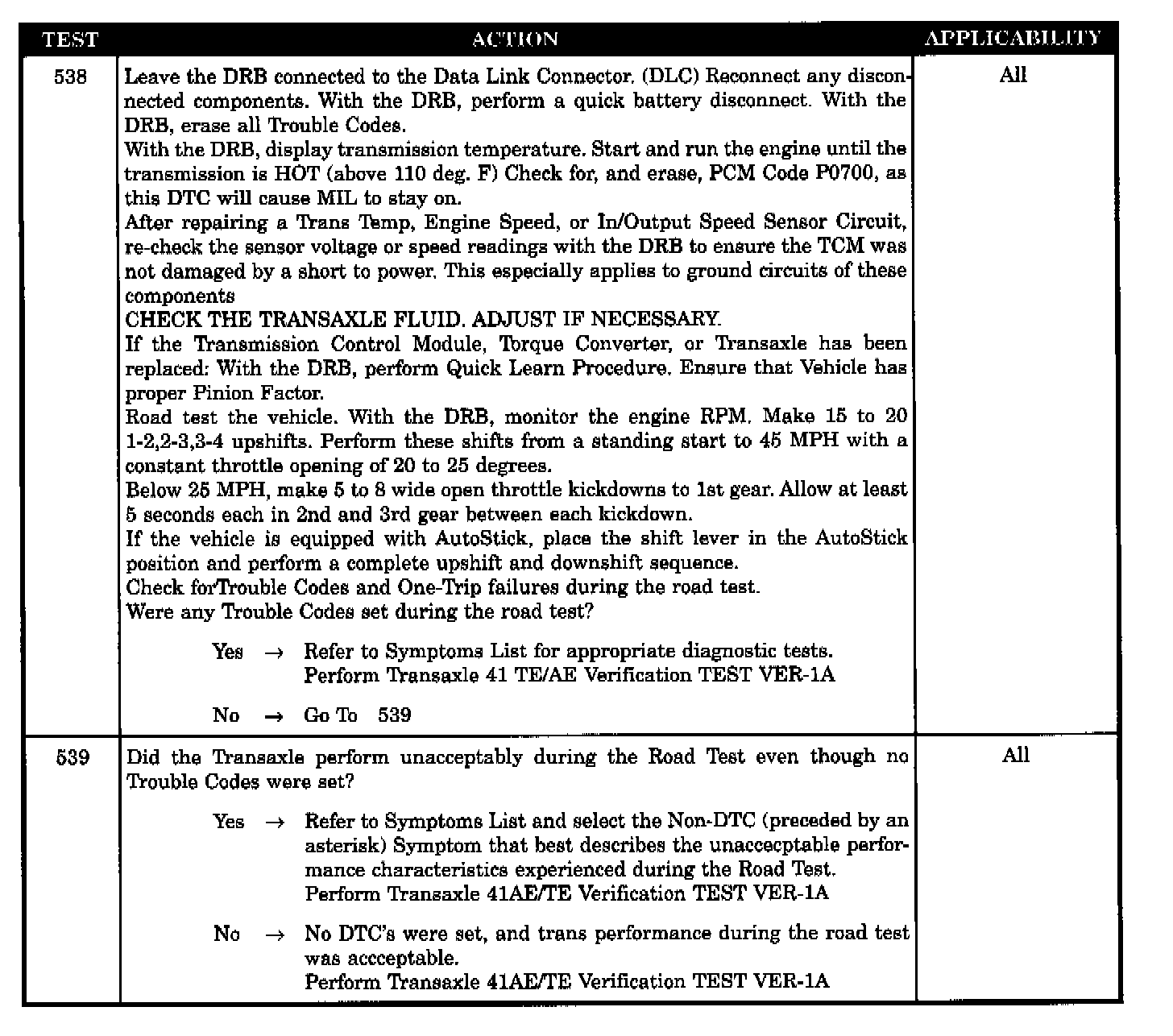

Test 538 - 539:
Symptom:
PERFORMANCE VERIFICATION TEST
POSSIBLE CAUSES
VERIFICATION TEST
BAD ROAD TEST WITHOUT DTC'S
NO PROBLEM
