P1798

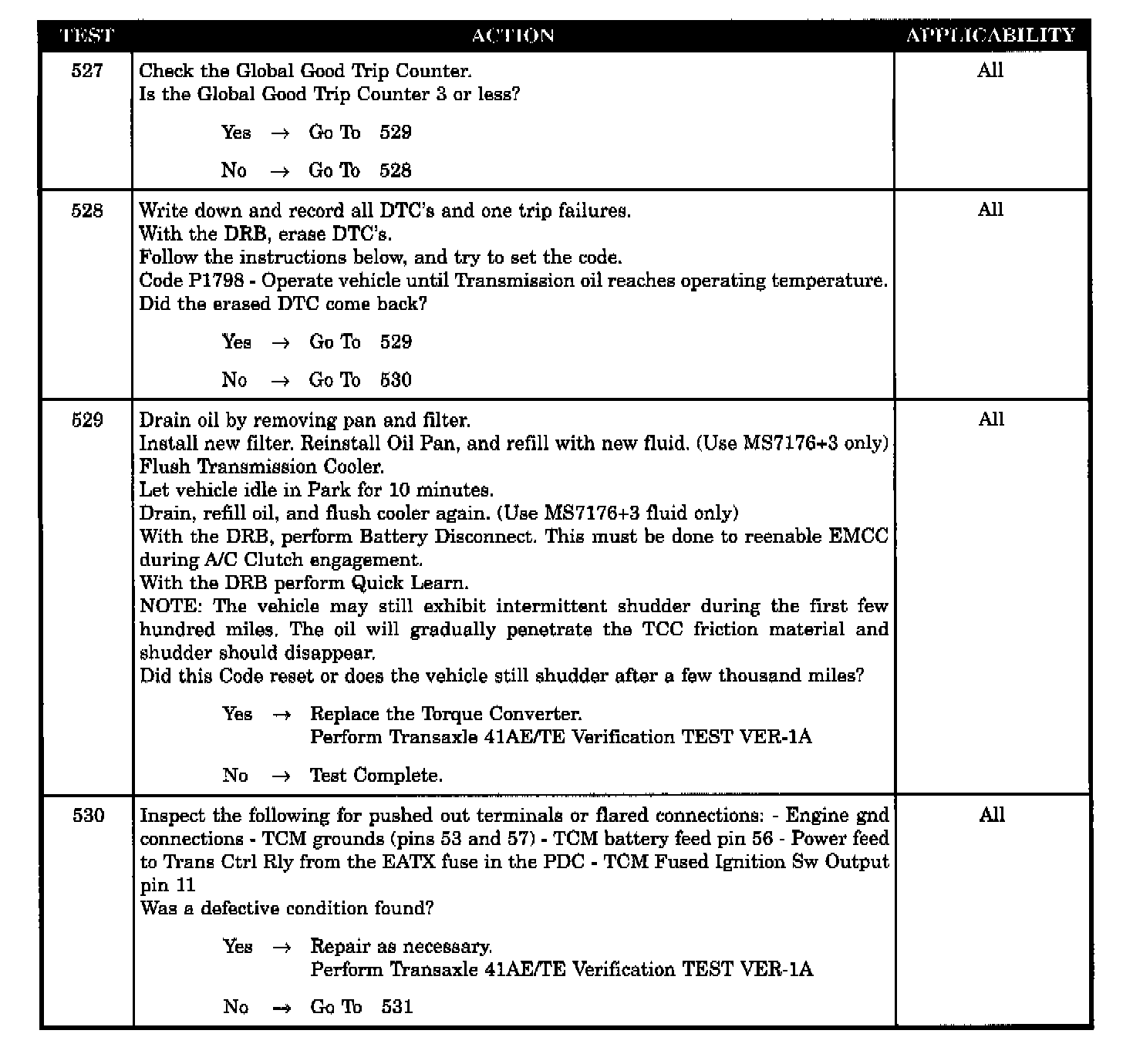

Test 527 - 530:

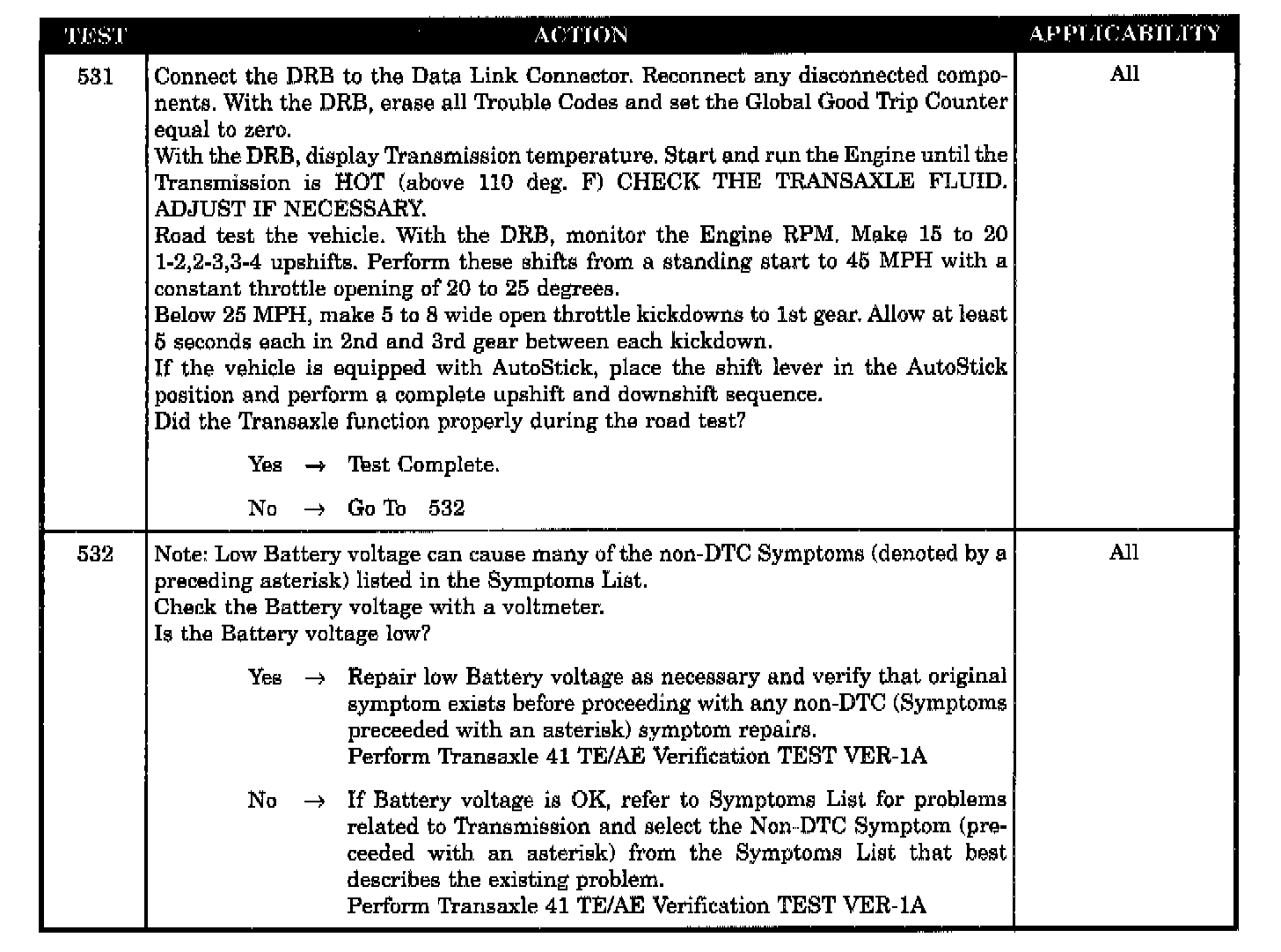

Test 531 - 532:

Symptom:
P1798-WORN OUT/BURNT TRANSAXLE FLUID

When Monitored:
Each transition from a full torque converter lock to partial torque converter lock for A/C bump prevention.

Set Condition:
This code will set when vehicle shudder is detected during partial lockup. The vehicle shudder event must occur 20 times to set the code.

POSSIBLE CAUSES
TORQUE CONVERTER CAUSES SHUDDER
CHECKING SYMPTOMS AND POSSIBLE CAUSES
LOW BATTERY VOLTAGE CAUSING SYMPTOM
INTERMITTENT CODE P1798
