P1792

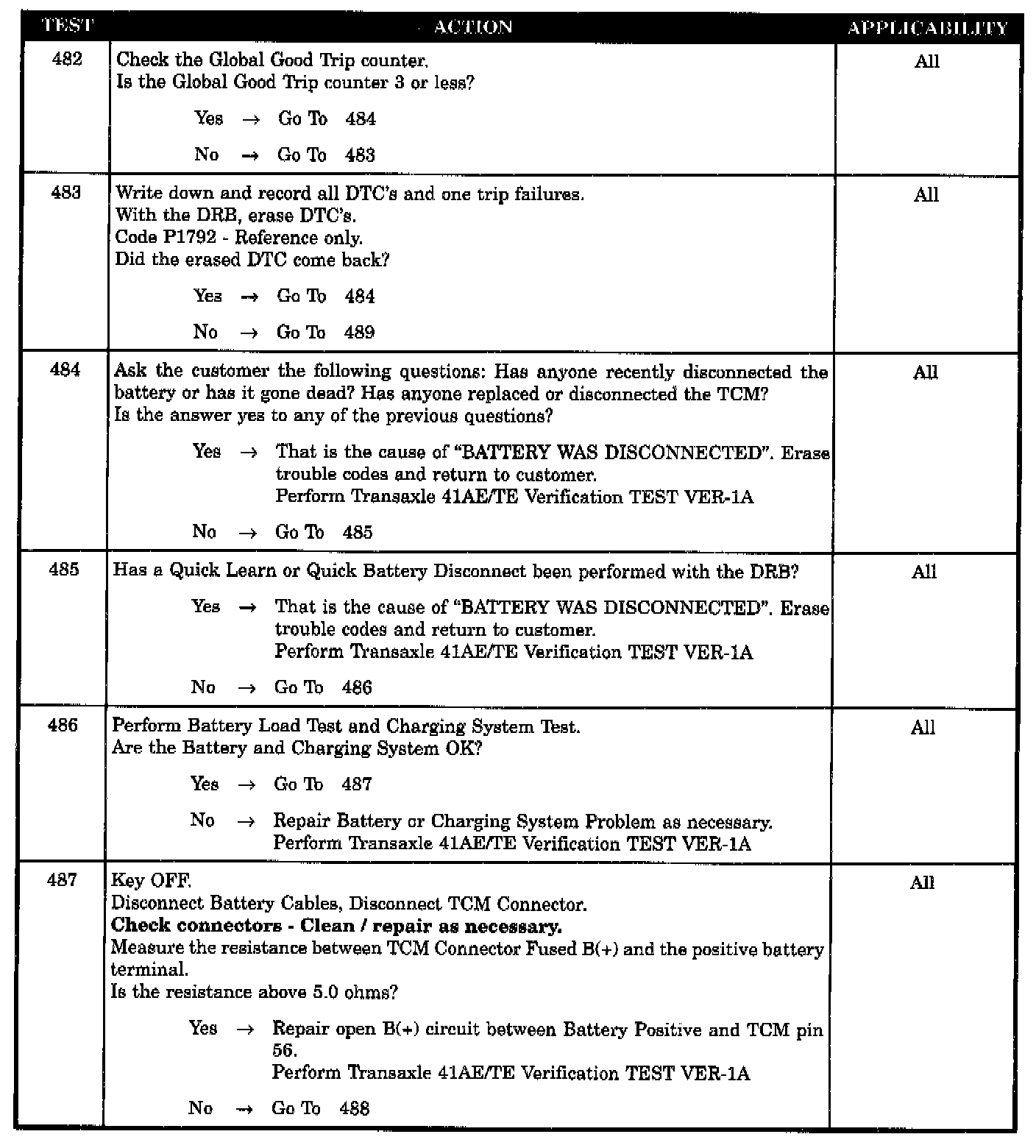

Test 482 - 487:

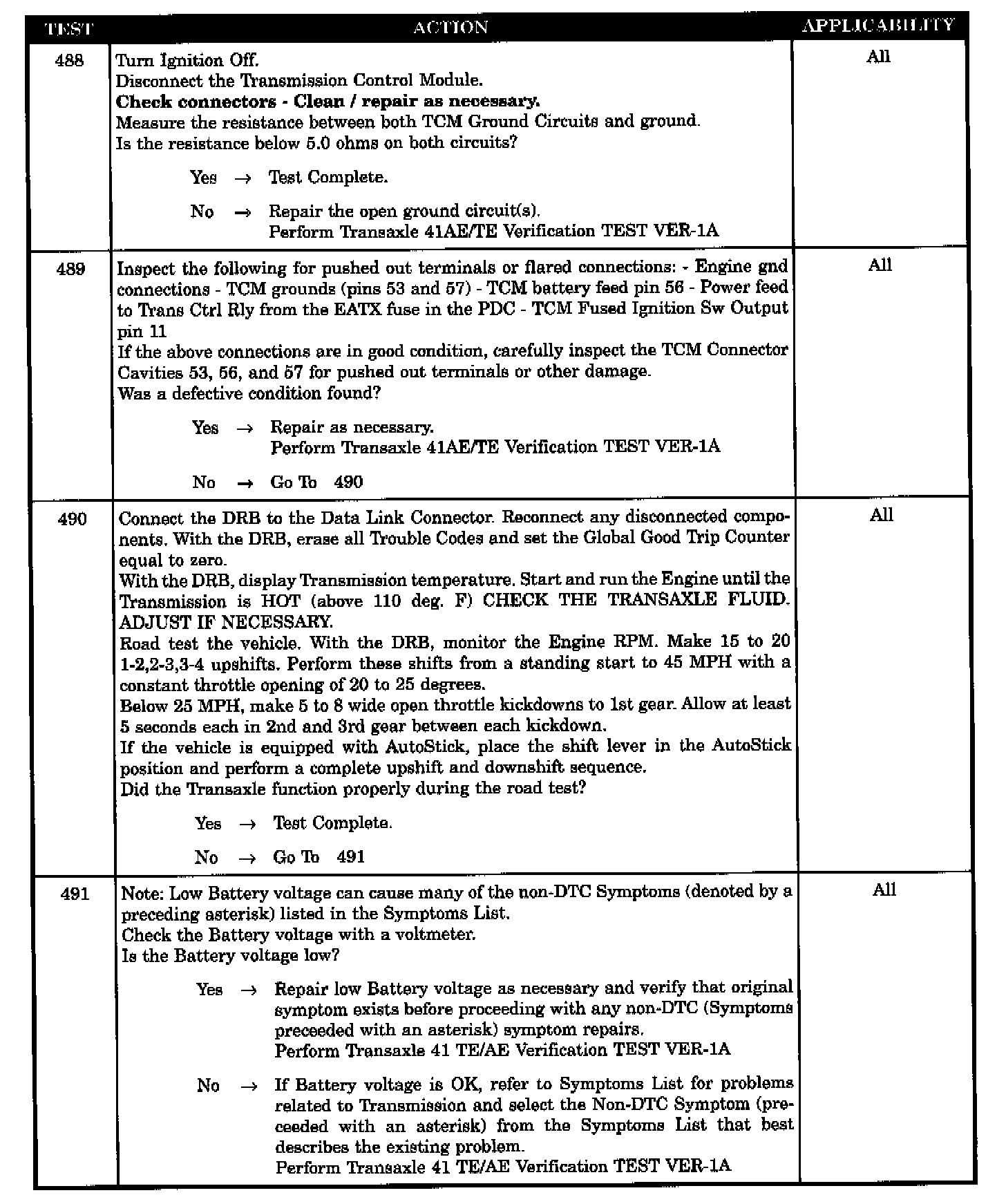

Test 488 - 491:

Symptom:
P1792-BATTERY WAS DISCONNECTED

When Monitored:
Whenever the key is in the RUN/START position.

Set Condition:
The code sets whenever the TCM is disconnected from B(+) or ground. It will also be set during the DRB "Quick Battery Disconnect" procedure.

POSSIBLE CAUSES
CHECKING SYMPTOMS AND POSSIBLE CAUSES
LOW BATTERY VOLTAGE CAUSING SYMPTOM
BATTERY OR CHARGING SYSTEM DEFECTIVE
QUICK LEARN OR QUICK BATTERY DISCONNECT PERFORMED
FUSED B(+) CKT TO TCM OPEN
TCM GROUND CIRCUITS OPEN
TCM HAS BEEN DISCONNECTED OR BATTERY DEAD
INTERMITTENT CODE P1792
