P1787

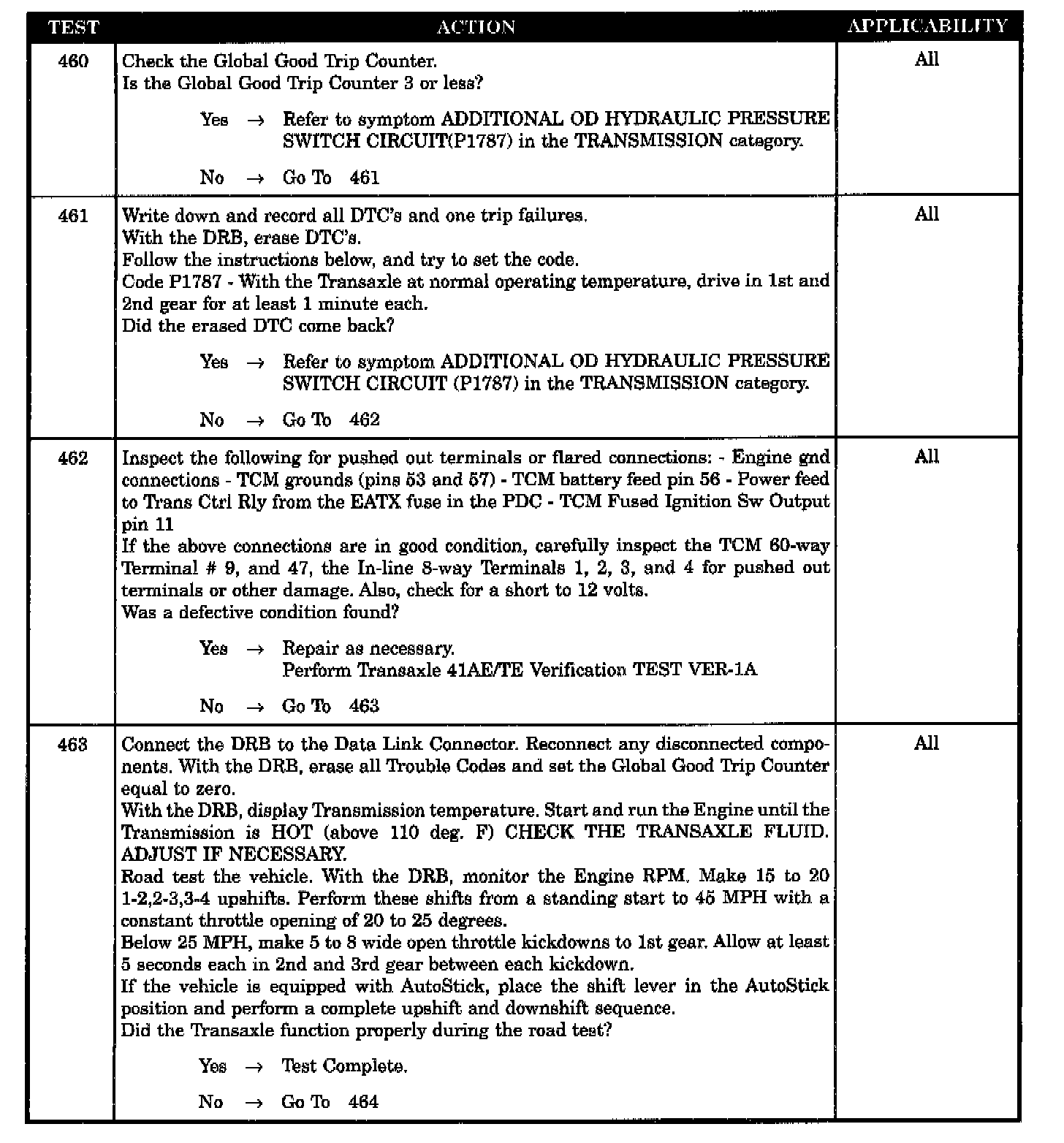

Test 460 - 463:

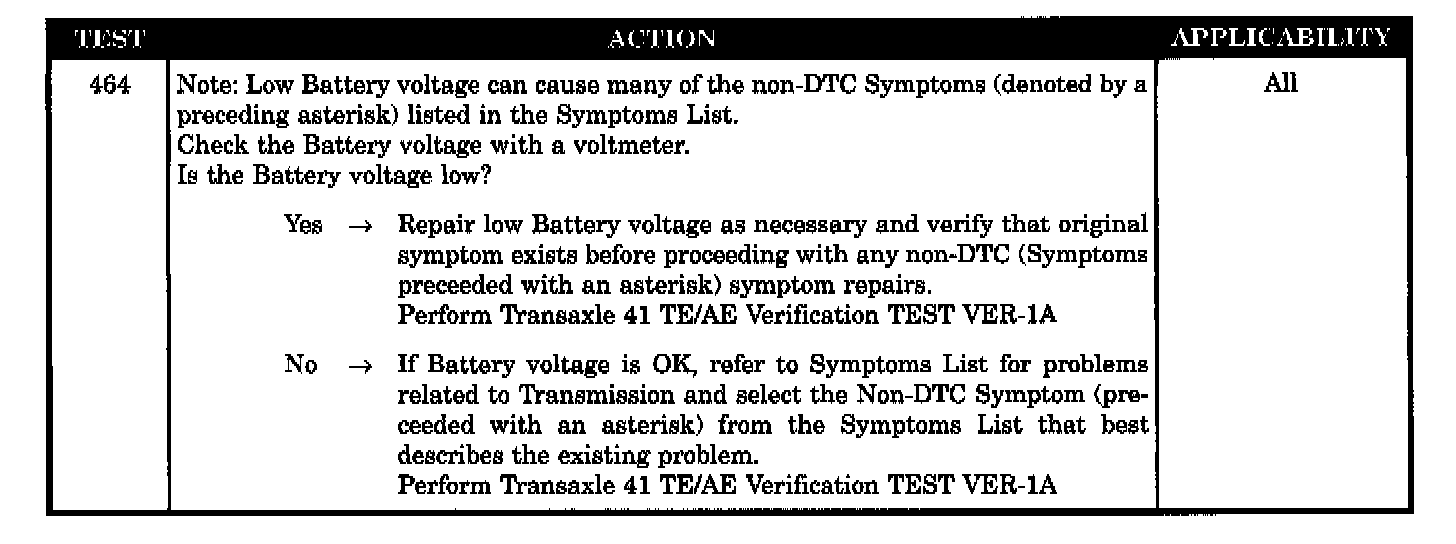

Test 464:

Symptom:
P1787-OD HYDRAULIC PRESSURE SWITCH CIRCUIT

When Monitored:
In 1st, 2nd, or 3rd gear with engine speed above 1000 RPM shortly after a shift and every minute there after.

Set Condition:
TCM momentarily turns on element pressure to the OD clutch circuit to identify that the pressure switch closes. If the switch does not close the first time it is retested again. If the switch does not close on the second test, the code is set.

POSSIBLE CAUSES
CHECKING SYMPTOMS AND POSSIBLE CAUSES
LOW BATTERY VOLTAGE CAUSING SYMPTOM
INTERMITTENT CODE P1787

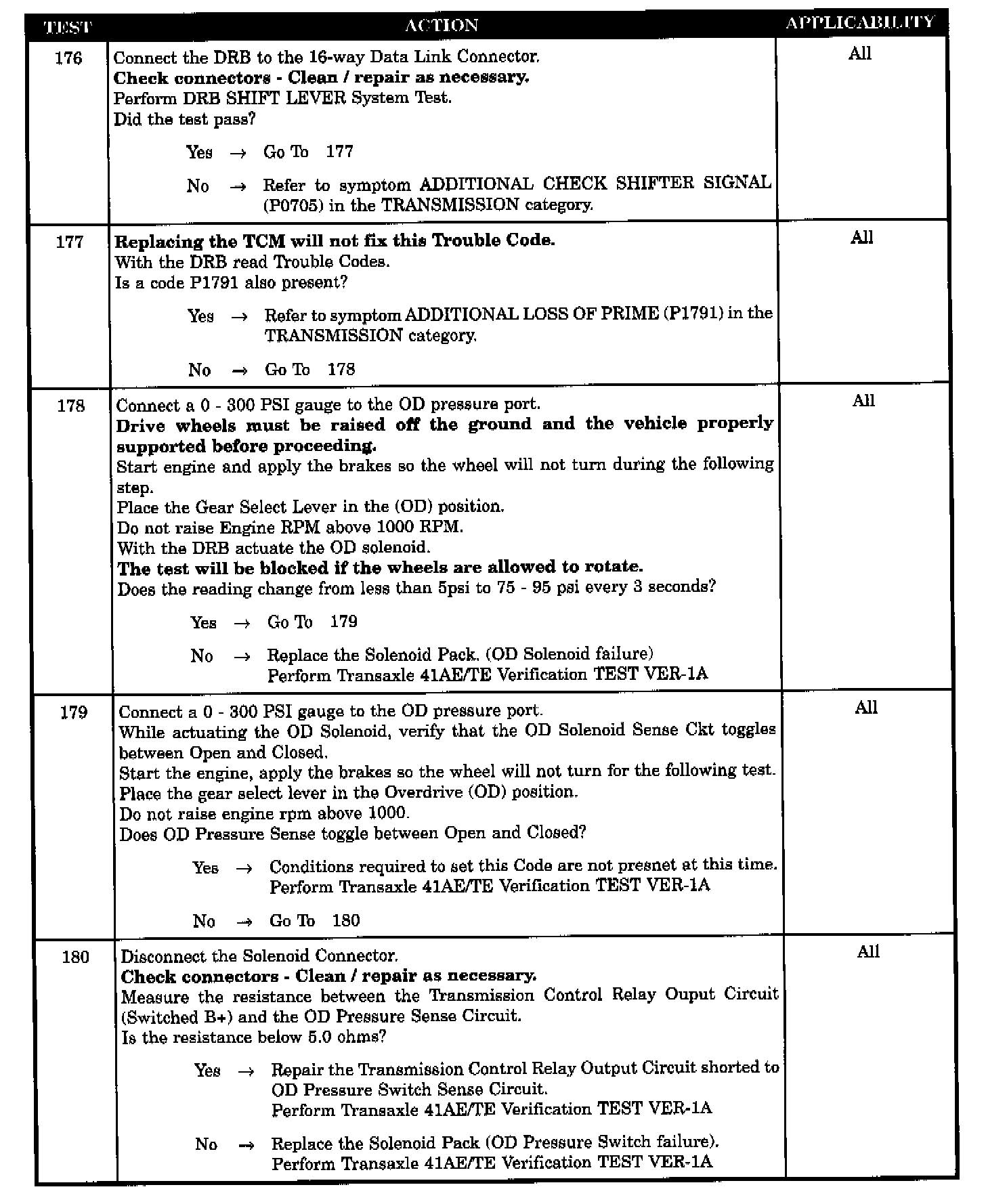

Test 176 - 180:

POSSIBLE CAUSES
CONDITIONS REQUIRED TO SET THIS CODE ARE NOT PRESENT AT THIS TIME
SHORT BETWEEN TCR OUTPUT CIRCUIT AND OD PRESSURE SWITCH SENSE CIRCUIT
OD SOLENOID FAILURE
OD SOLENOID DEFECTIVE
