P1765

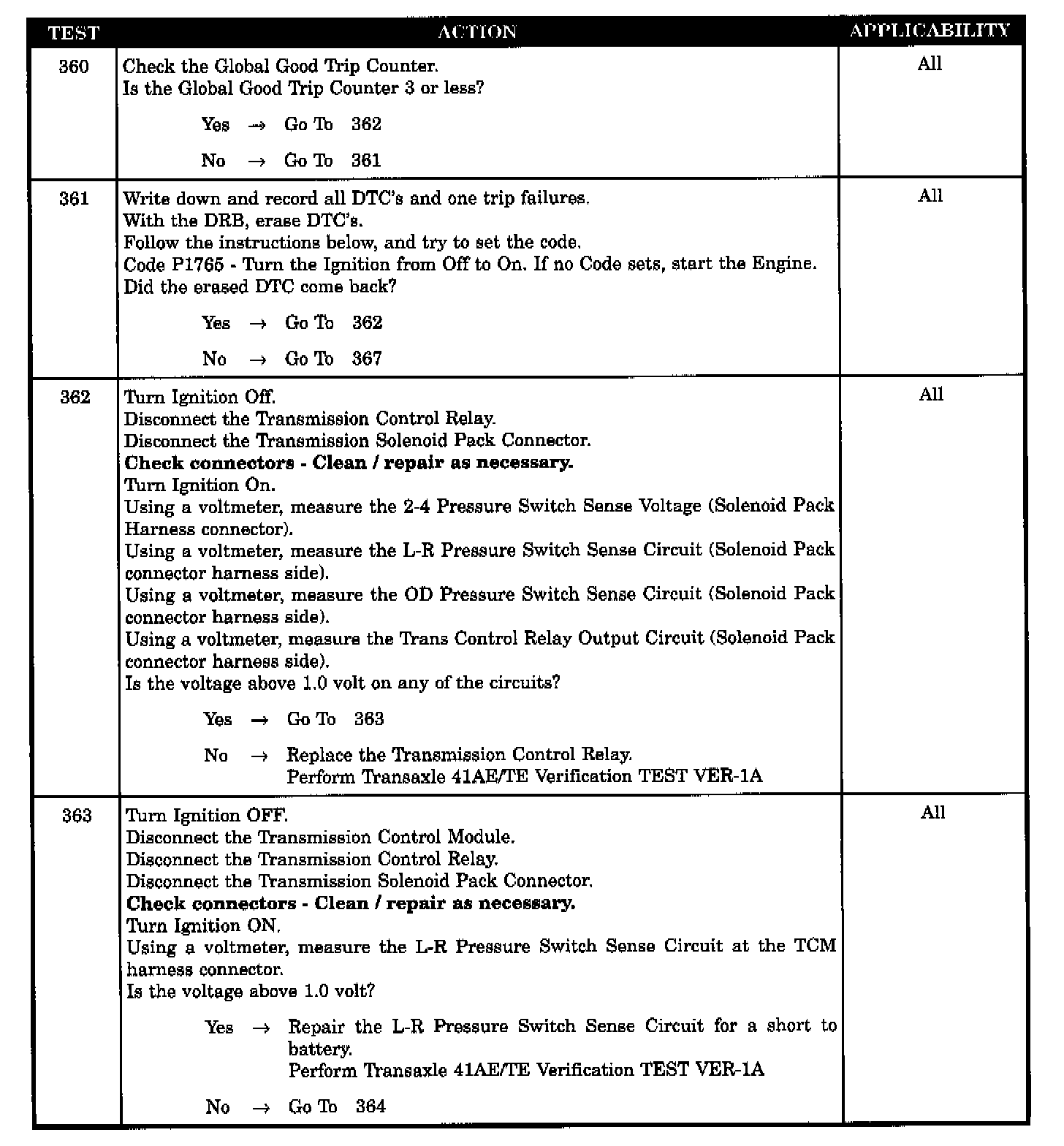

Test 360 - 363:

Test 364 - 367:

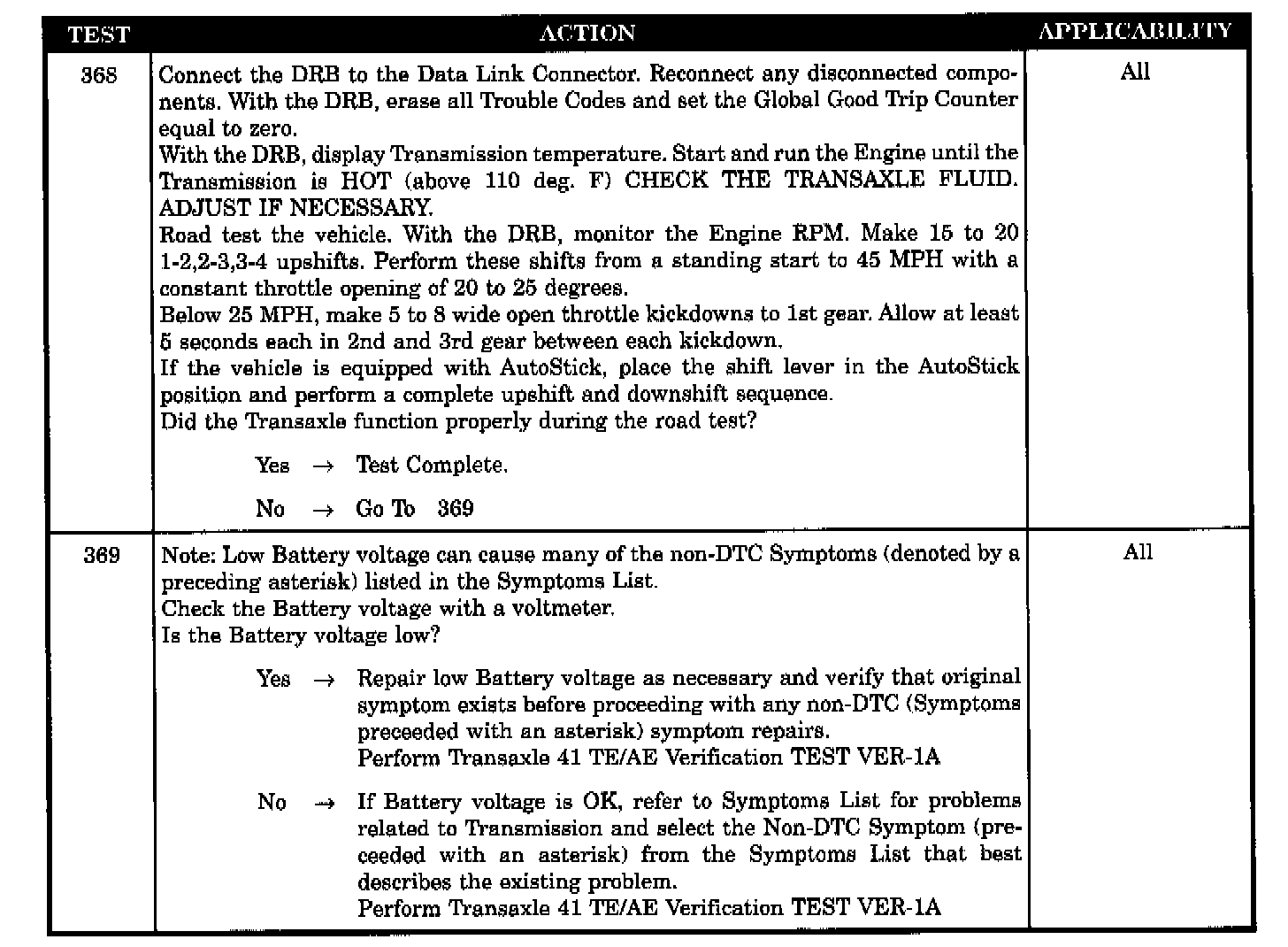

Test 368 - 369:

Symptom:
P1765-SWITCHED BATTERY

When Monitored:
One time after a reset (ignition key is turned from the OFF to RUN position and/or key is turned from the CRANK to the RUN position).

Set Condition:
The code is set if the transmission Control Module (TCM) senses voltage on any of the pressure switch inputs prior to the TCM energizing the relay.

POSSIBLE CAUSES
CHECKING SYMPTOMS AND POSSIBLE CAUSES
LOW BATTERY VOLTAGE CAUSING SYMPTOM
L-R PRESSURE SWITCH SENSE CIRCUIT SHORTED TO BATTERY
2-4 PRESSURE SWITCH SENSE CIRCUIT SHORTED TO BATTERY
OD PRESSURE SWITCH SENSE CIRCUIT SHORTED TO BATTERY
TRANS CONTROL RELAY OUTPUT CIRCUIT SHORTED TO BATTERY
TRANSMISSION CONTROL RELAY DEFECTIVE
TCM PRESSURE SWITCH SENSE INTERNAL SHORT TO VOLTAGE
INTERMITTENT CODE P1765
