P1695

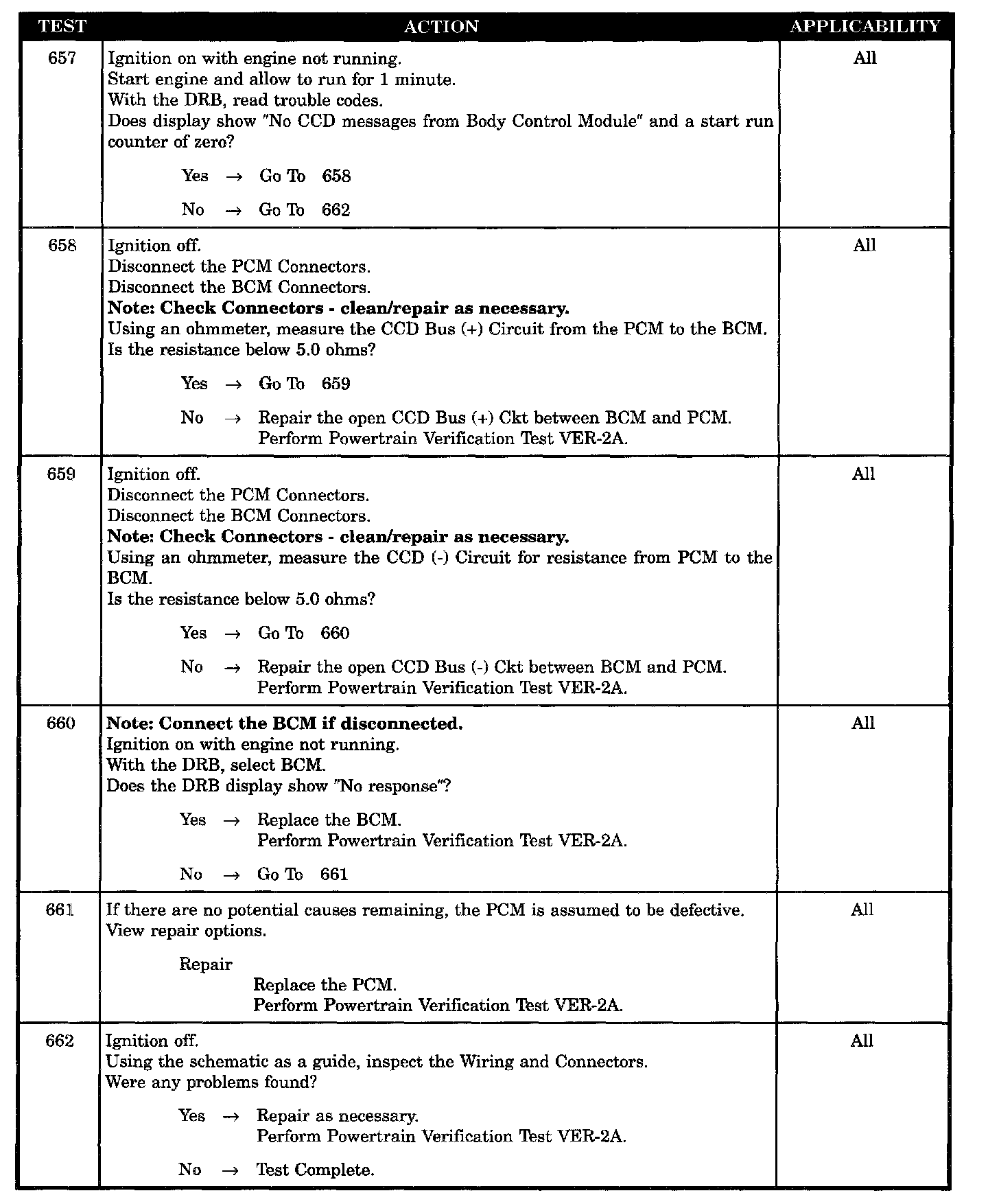

Test 657 - 662:

SYMPTOM
P-1695 NO CCD MESSAGE FROM BODY CONTROL MODULE

WHEN MONITORED
Any time the engine is running.

SET CONDITION
No CCD messages from the BCM for 30 seconds.

POSSIBLE CAUSES
- CCD bus (+) circuit open
- CCD bus (-) circuit open
- Wiring harness observable defect
- BCM "NO RESPONSE"
- PCM def (no CCD msg)
