P0765

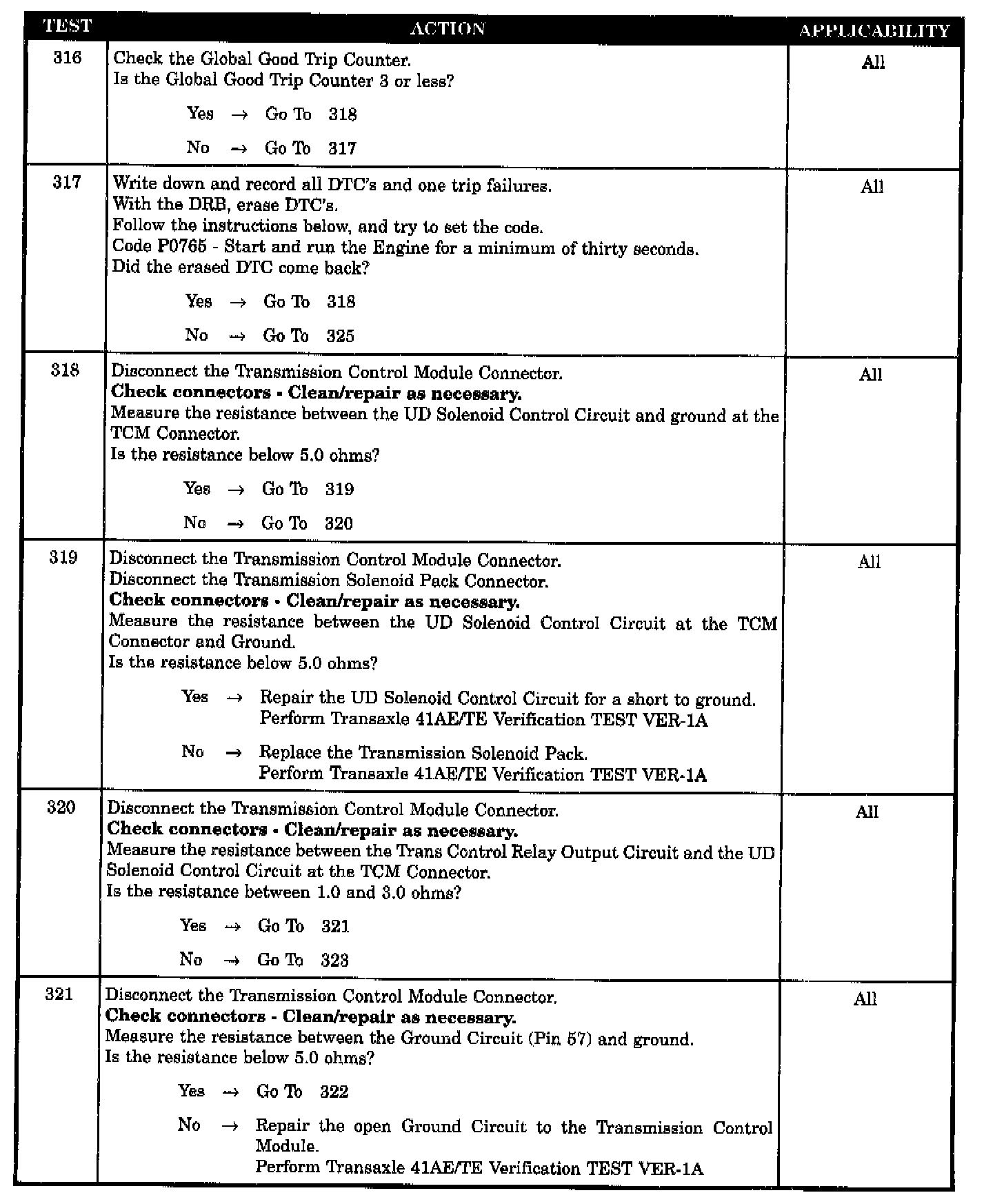

Test 316 - 321:

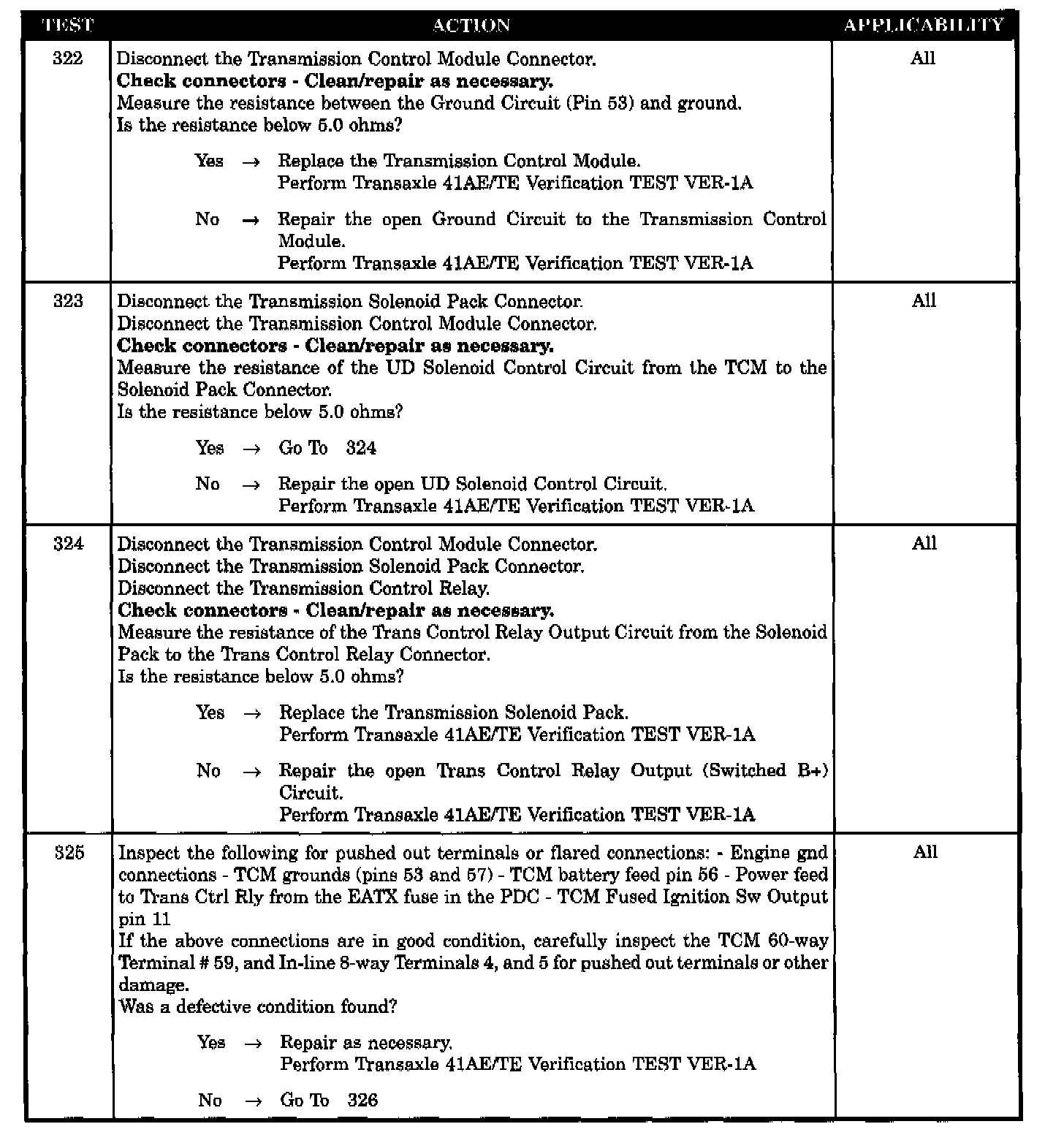

Test 322 - 325:

Test 326 - 327:

Symptom:
P0765-UD SOLENOID CIRCUIT

When Monitored:
Ignition key is turned from the OFF to RUN position and/or key is turned from the CRANK to the RUN position, then every 10 secs thereafter, or when a speed ratio or pressure switch error occurs. All 4 solenoids are tested for continuity continuously.

Set Condition:
If a solenoid is On, power is momentarily interrupted, then reenergized. If solenoid is Off, power is momentarily energized, then deenergized. If an inductive spike is not sensed by the TCM, it is retested. If the solenoid fails 4 times the code sets.

POSSIBLE CAUSES
CHECKING SYMPTOMS AND POSSIBLE CAUSES
LOW BATTERY VOLTAGE CAUSING SYMPTOM
PIN 53 GROUND CKT OPEN TO THE TCM
PIN 57 GROUND CIRCUIT OPEN TO THE TRANSMISSION CONTROL MODULE
TCR OUTPUT (SWITCHED B+) CIRCUIT OPEN
UD SOLENOID CNTRL CKT TO SOLENOID CONNECTOR OPEN
UD SOLENOID CONTROL CIRCUIT SHORT TO GROUND
TRANSMISSION CONTROL MODULE OPEN GND
TSP OPEN (UD SOLENOID)
TSP UD SOLENOID CONTROL CKT SHORT TO GND
INTERMITTENT CODE P0765
