P0760

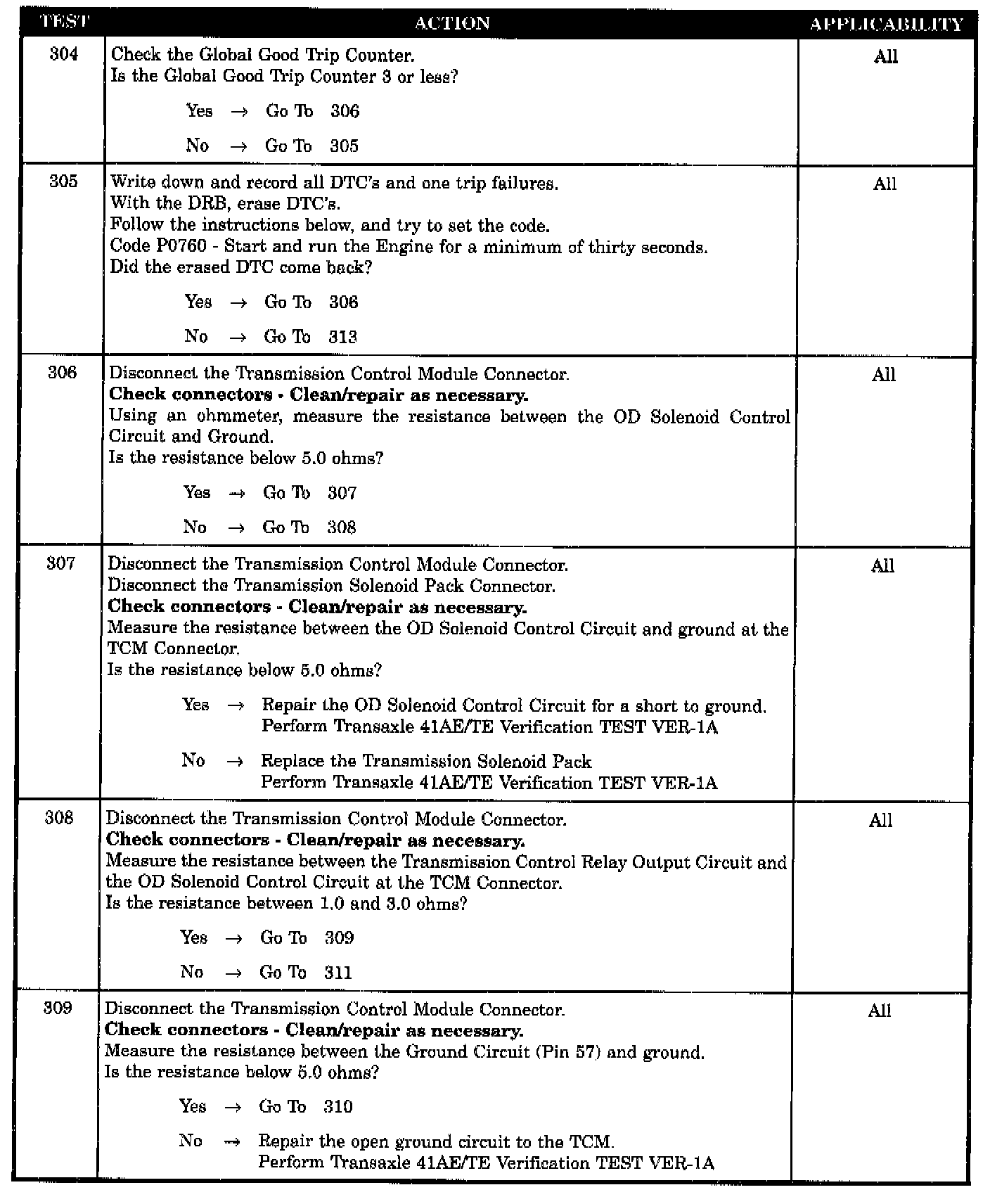

Test 304 - 309:

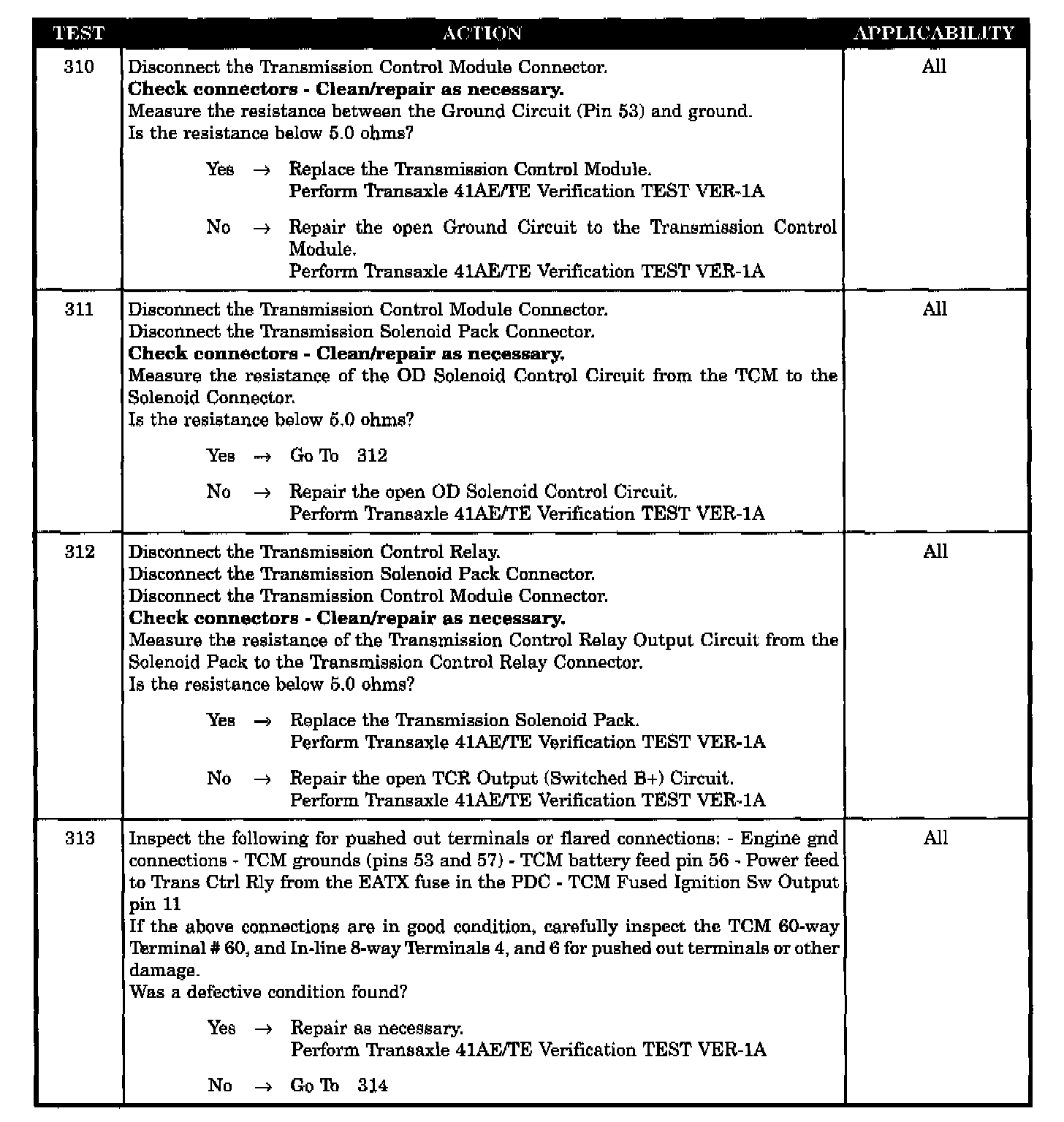

Test 310 - 313:

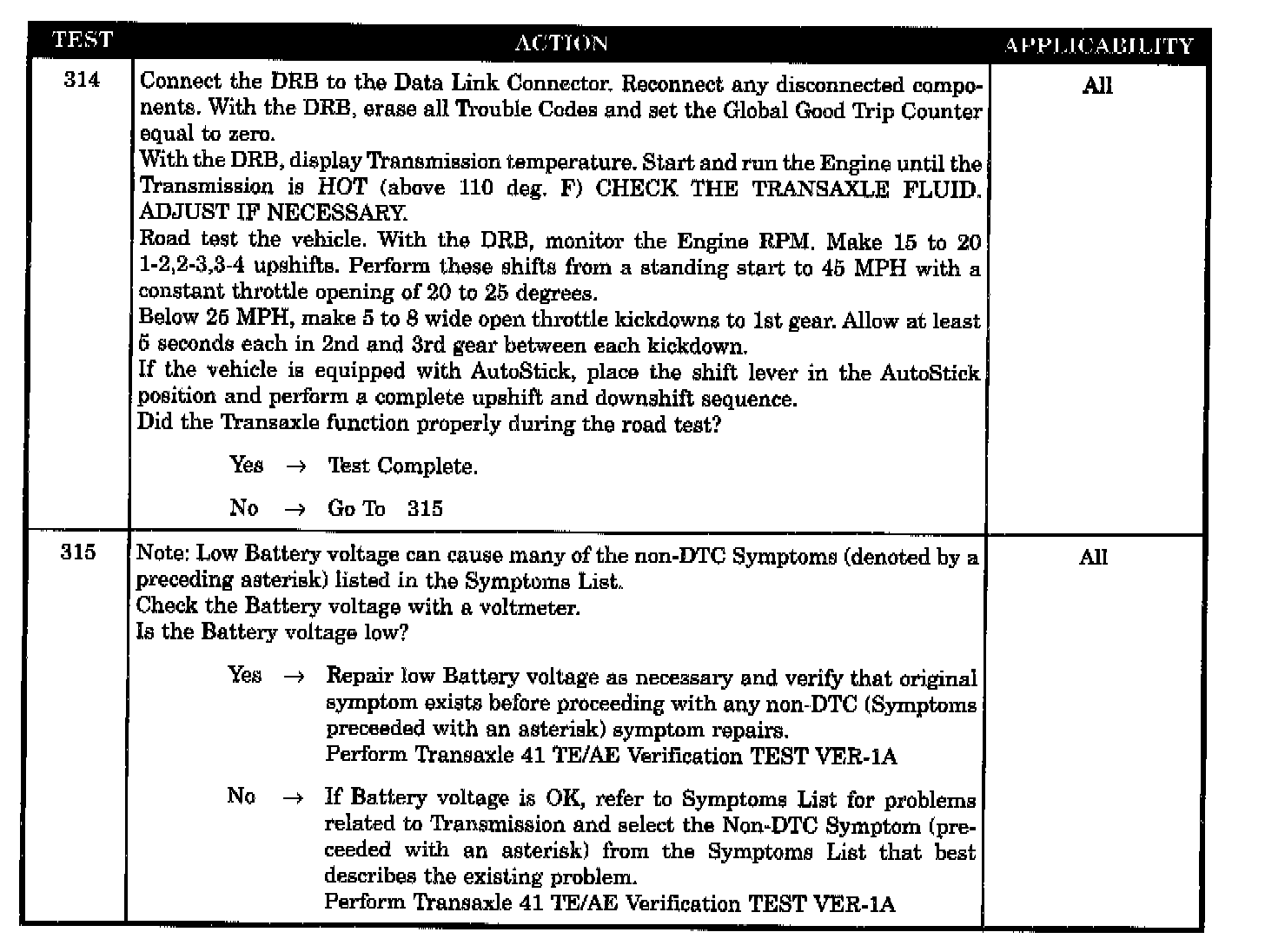

Test 314 - 315:

Symptom:
P0760-OD SOLENOID CIRCUIT

When Monitored:
Ignition key is turned from the OFF to RUN position and/or key is turned from the CRANK to the RUN position, then every 10 secs thereafter, or when a speed ratio or pressure switch error occurs. All 4 solenoids are tested for continuity continuously.

Set Condition:
If a solenoid is On, power is momentarily interrupted, then reenergized. If solenoid is Off, power is momentarily energized, then deenergized. If an inductive spike is not sensed by the TCM, it is retested. If the solenoid fails 4 times the code sets.

POSSIBLE CAUSES
CHECKING SYMPTOMS AND POSSIBLE CAUSES
LOW BATTERY VOLTAGE CAUSING SYMPTOM
GROUND CIRCUIT (PIN 53) TO TCM OPEN
TCM PIN 57 TO GROUND OPEN
TCR OUTPUT (SWITCHED B+) CIRCUIT OPEN
OD SOLENOID CONTROL CIRCUIT SHORT TO GROUND
SOLENOID CONT CKT TO SOLENOID CONN OPEN
TCM OPEN GROUND
TSP OD SOL CONTROL CKT SHORT TO GROUND
TRANSMISSION SOLENOID PACK OPEN (OD SOLENOID)
INTERMITTENT CODE P0760
