P0736

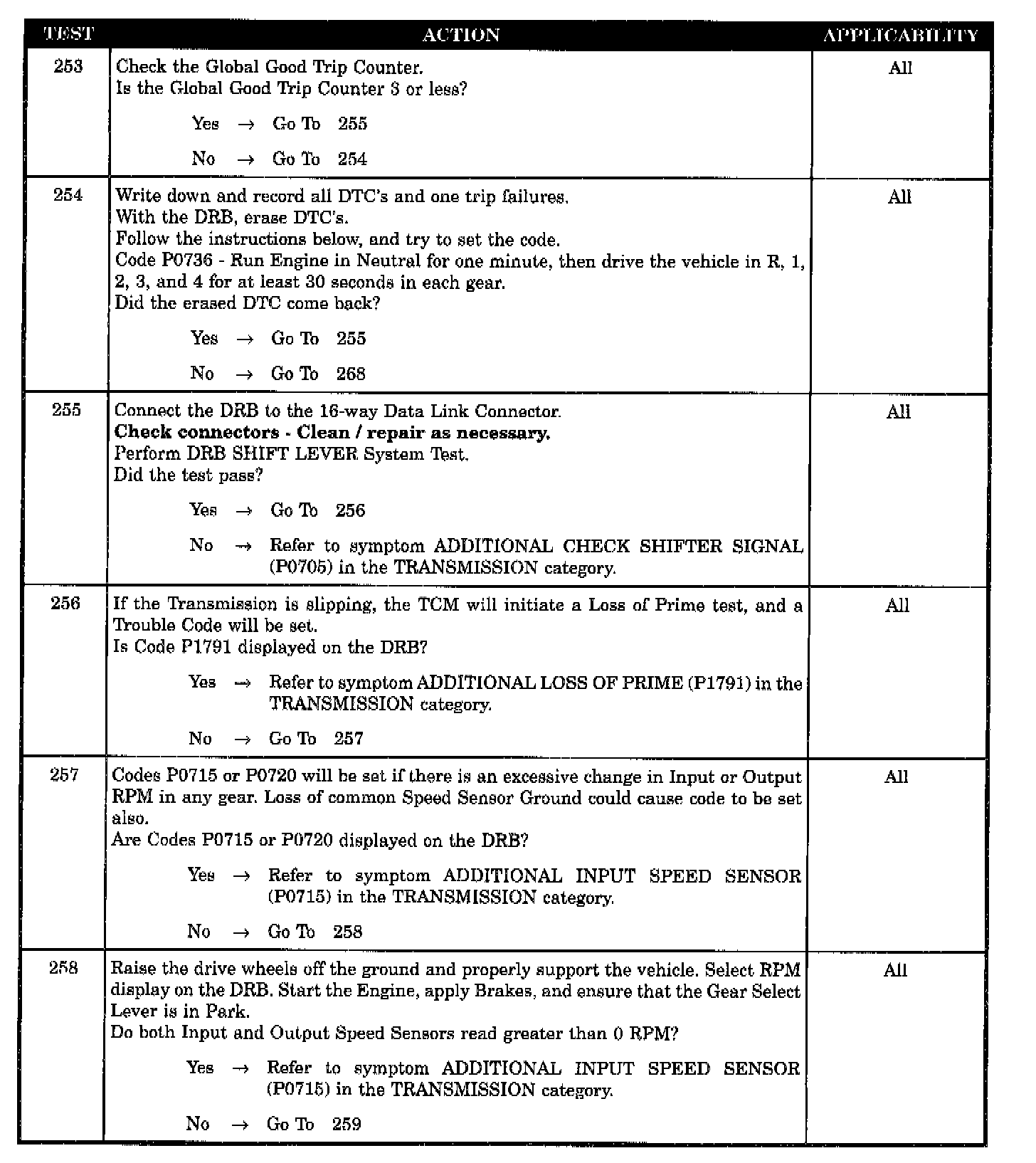

Test 253 - 258:

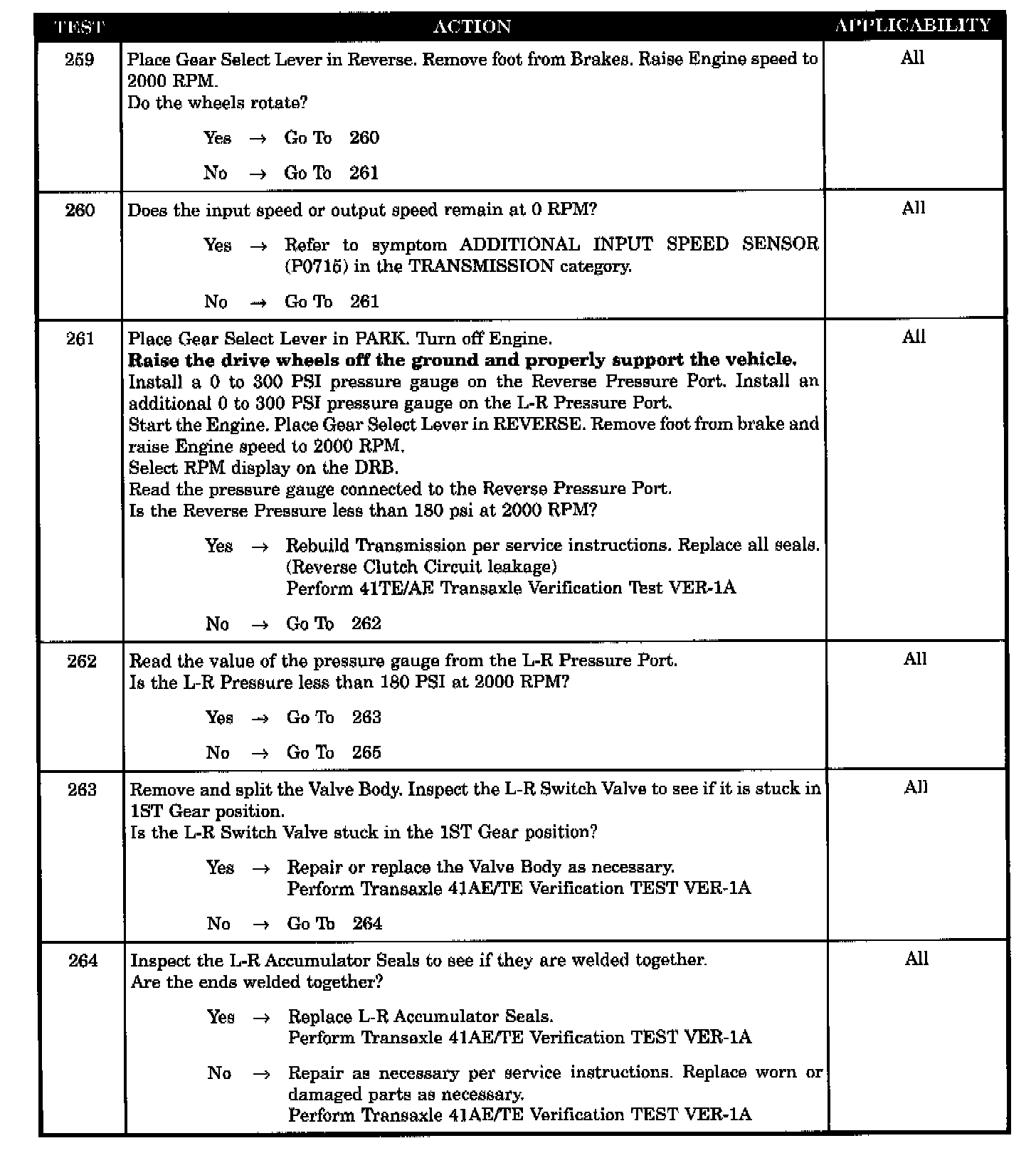

Test 259 - 264:

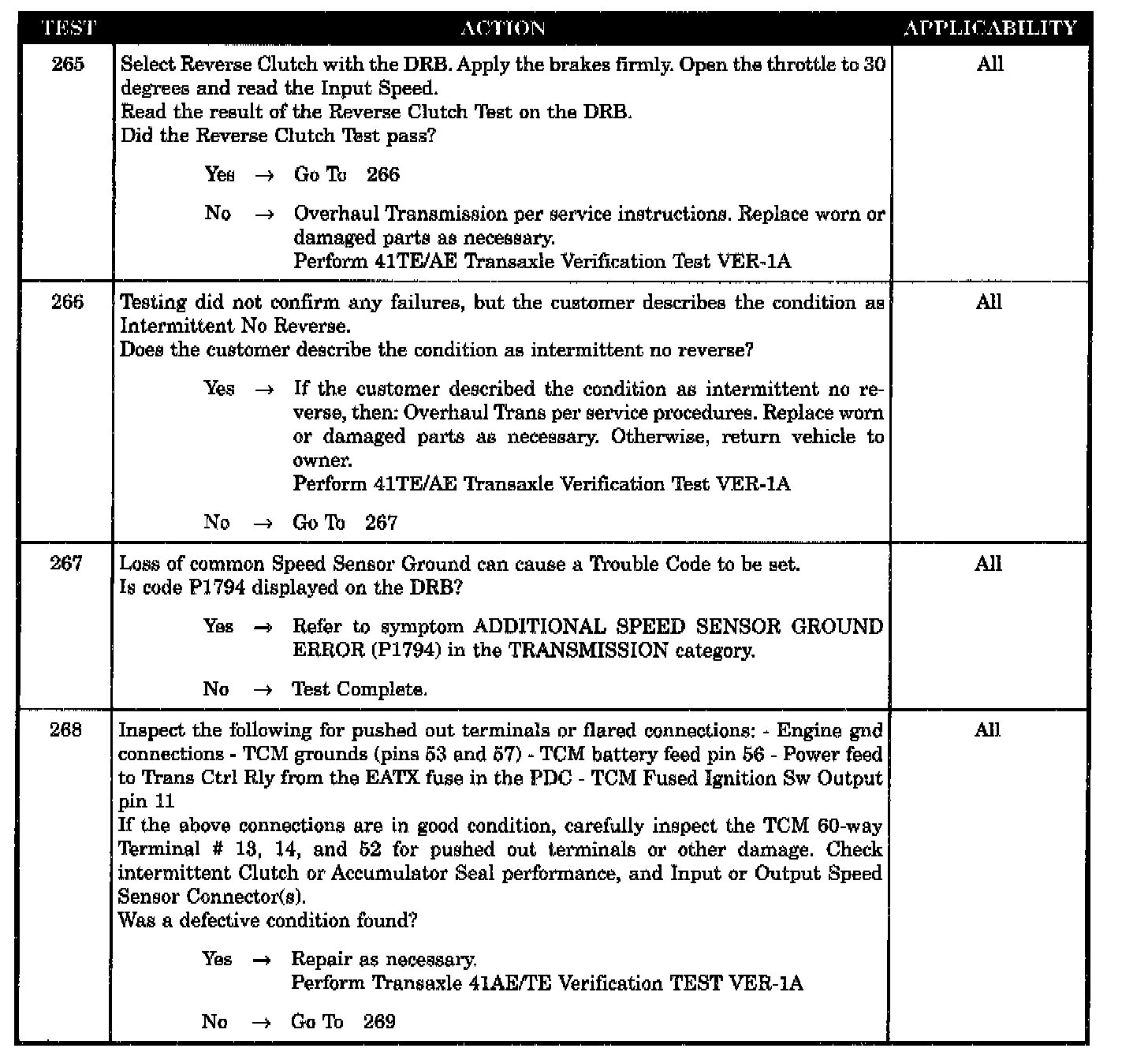

Test 265 - 268:

Test 269 - 270:

Symptom:
P0736-GEAR RATIO ERROR IN REVERSE

When Monitored:
Continuously monitored while the transmission is in gear.

Set Condition:
Code P0736 sets if the ratio of the input RPM to the output RPM does not match the given gear ratio.

POSSIBLE CAUSES
CHECKING SYMPTOMS AND POSSIBLE CAUSES
LOW BATTERY VOLTAGE CAUSING SYMPTOM
CUSTOMER COMPLAINT INTERMITTENT NO REVERSE
REVERSE CLUTCH TEST FAILS
REVERSE PRESSURE < 180 PSI
TRANSAXLE REPAIR (L-R SEALS)
L-R ACCUM SEALS WELDED TOGETHER
L-R SWITCH VALVE STUCK IN FIRST GEAR POSITION
INTERMITTENT CODE P0736
