P0705

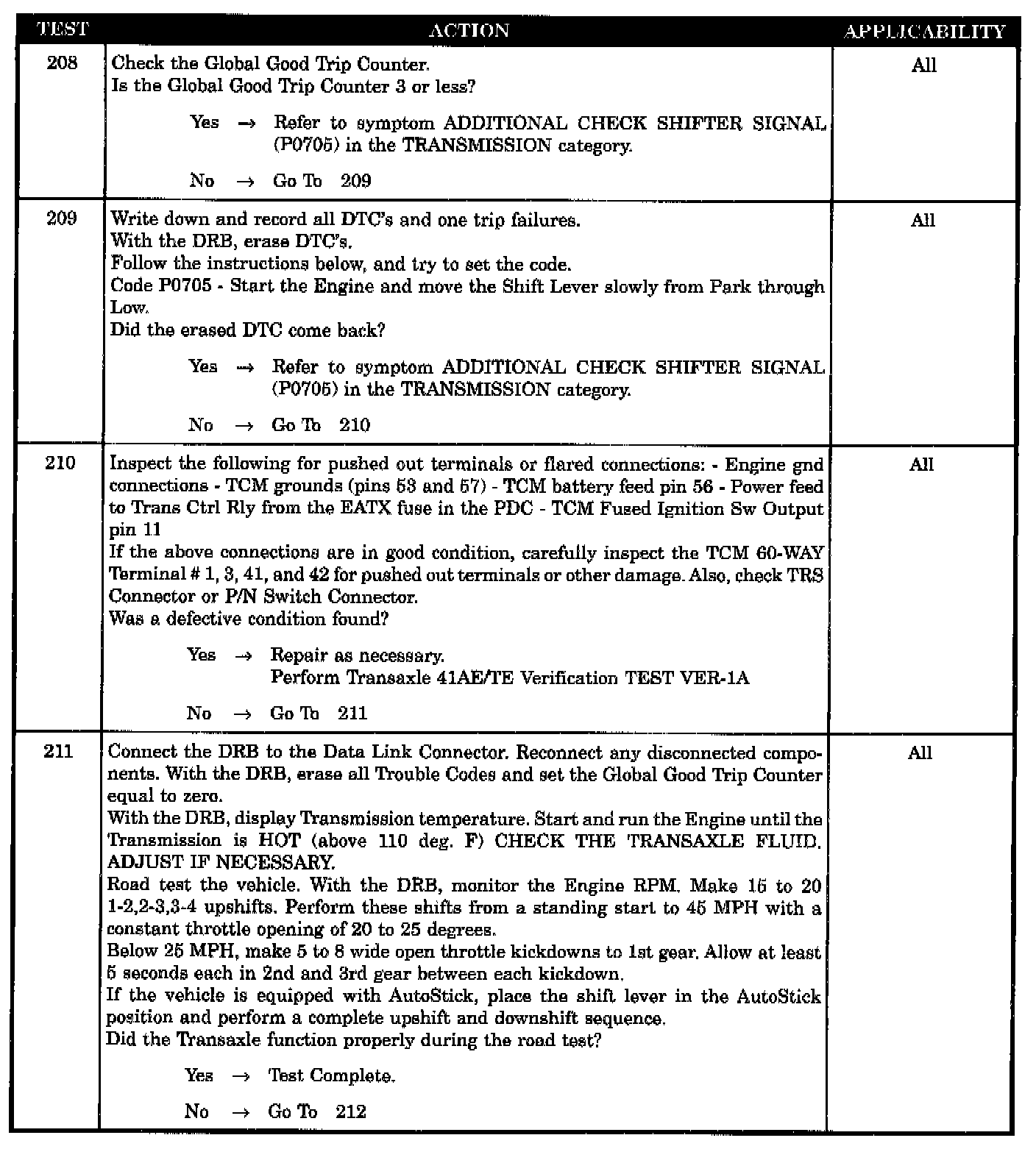

Test 208 - 211:

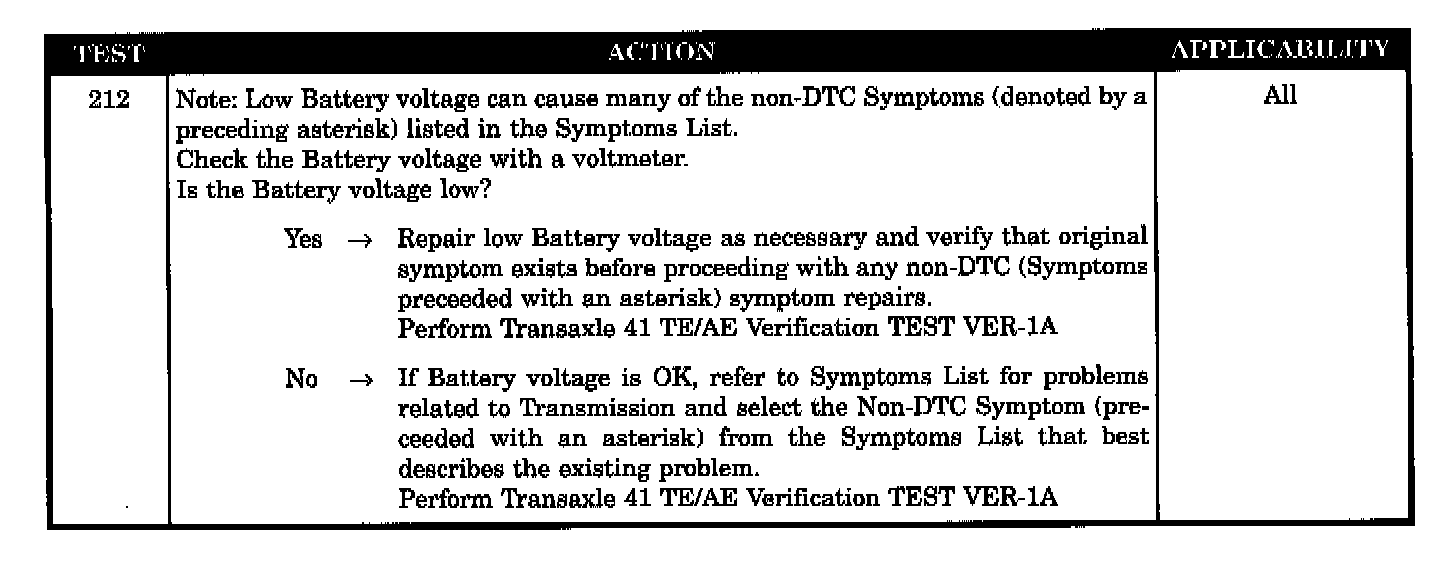

Test 212:

Symptom:
P0705-CHECK SHIFTER SIGNAL

When Monitored:
Continuously with the key on.

Set Condition:
Immediately following invalid PRNDL code for more than one second.

POSSIBLE CAUSES
CHECKING SYMPTOMS AND POSSIBLE CAUSES
LOW BATTERY VOLTAGE CAUSING SYMPTOM
INTERMITTENT CODE P0705

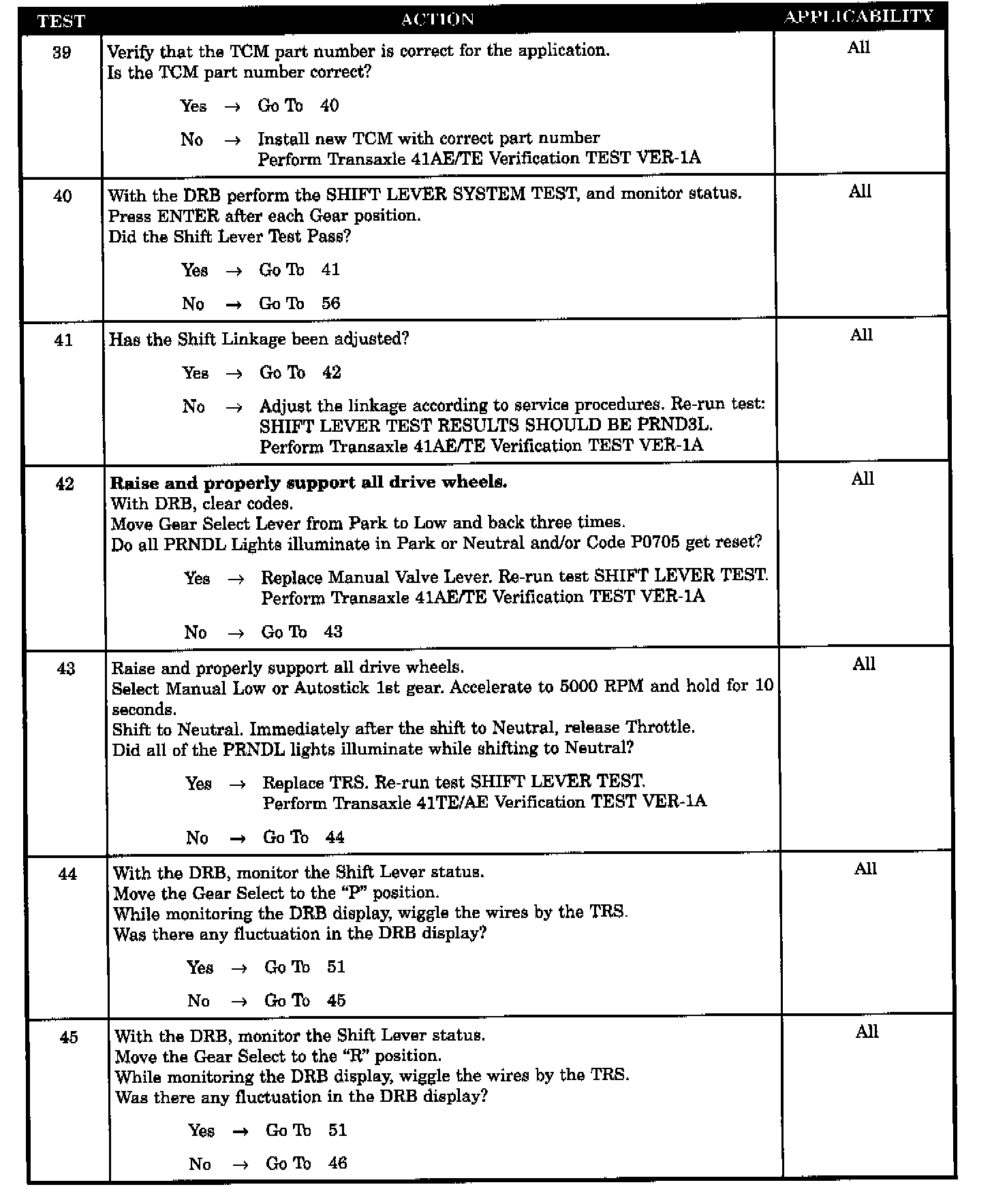

Test 39 - 45:

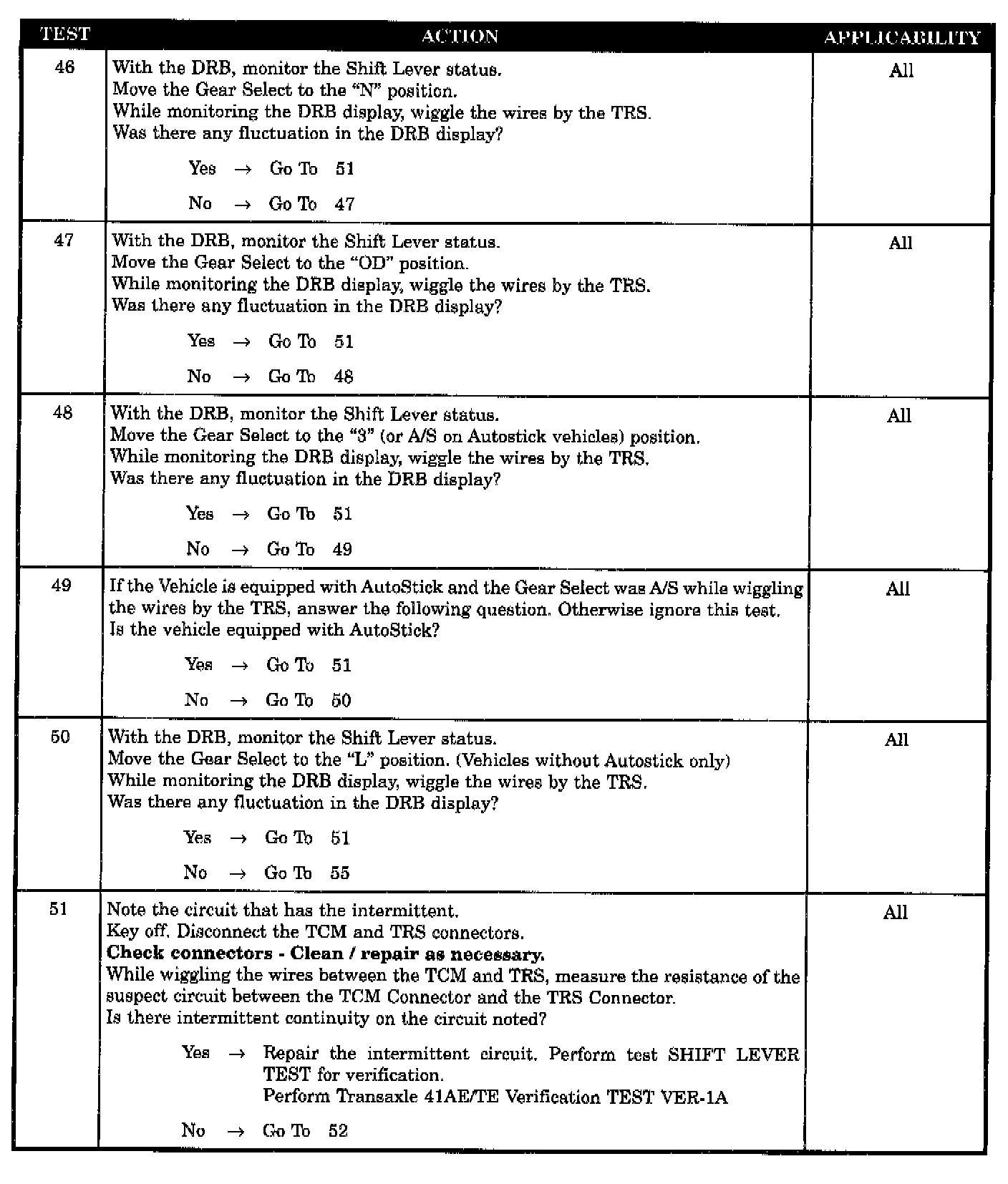

Test 46 - 51:

Test 52 - 56:

Test 57 - 60:

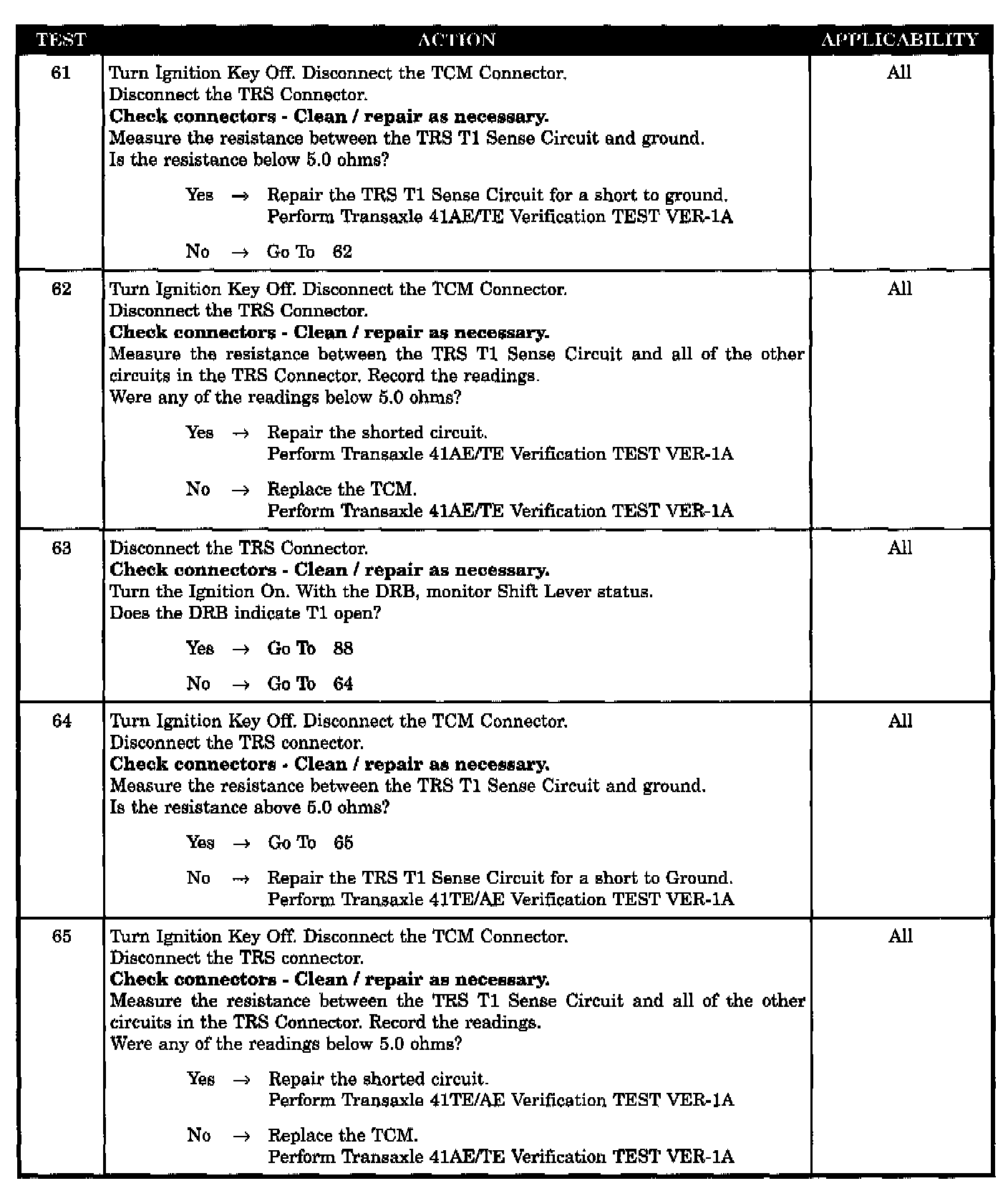

Test 61 - 65:

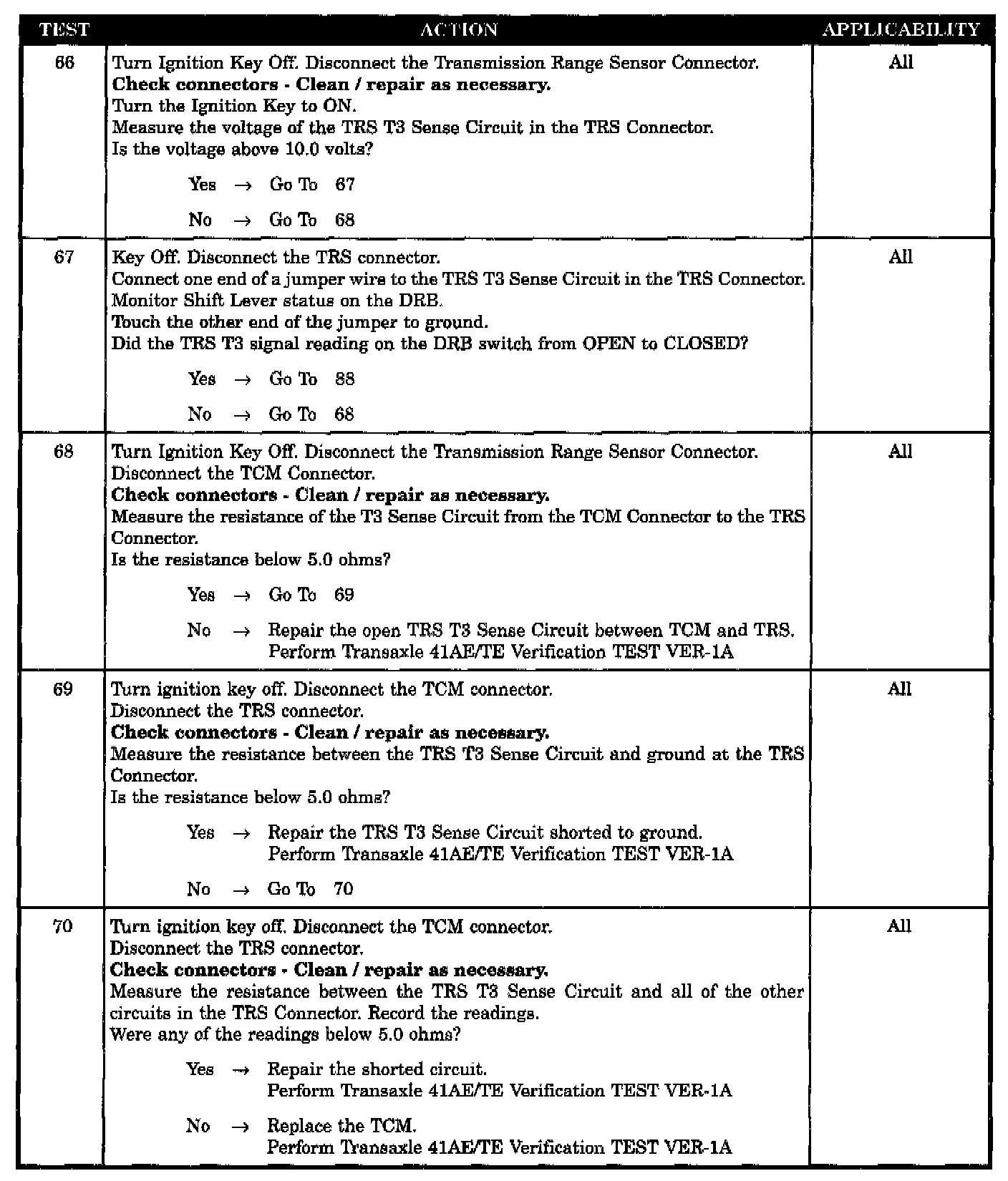

Test 66 - 70:

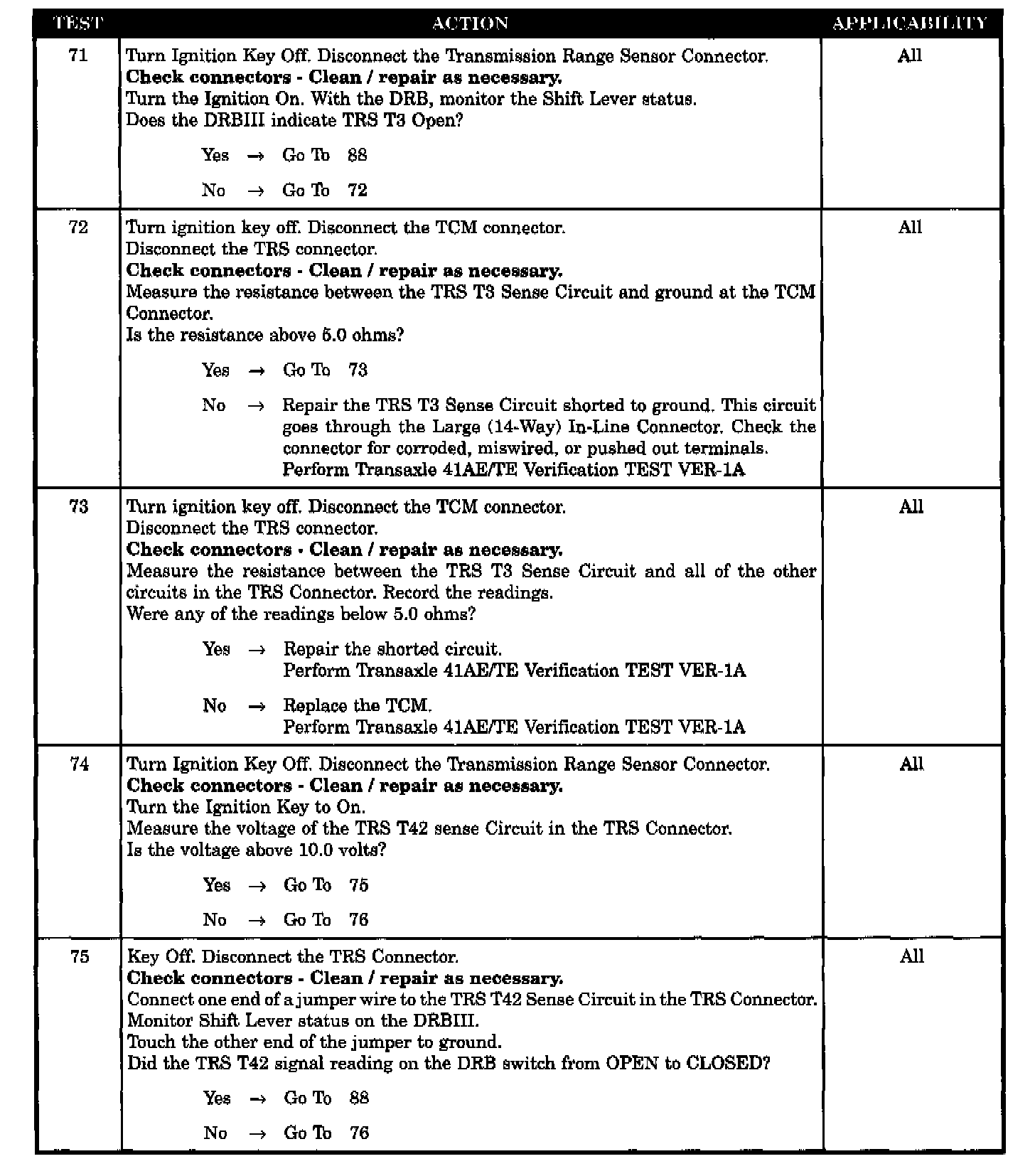

Test 71 - 75:

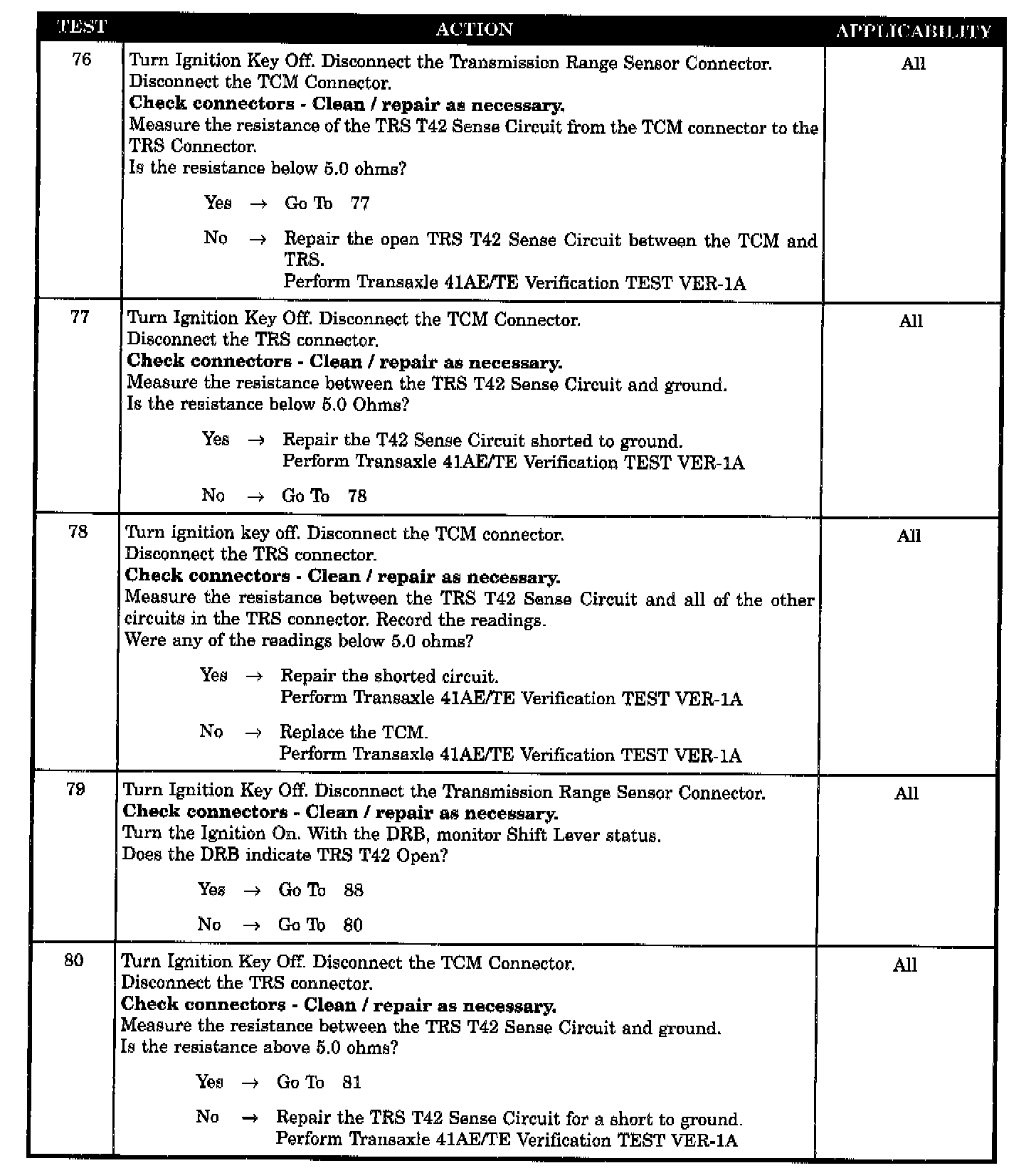

Test 76 - 80:

Test 81 - 85:

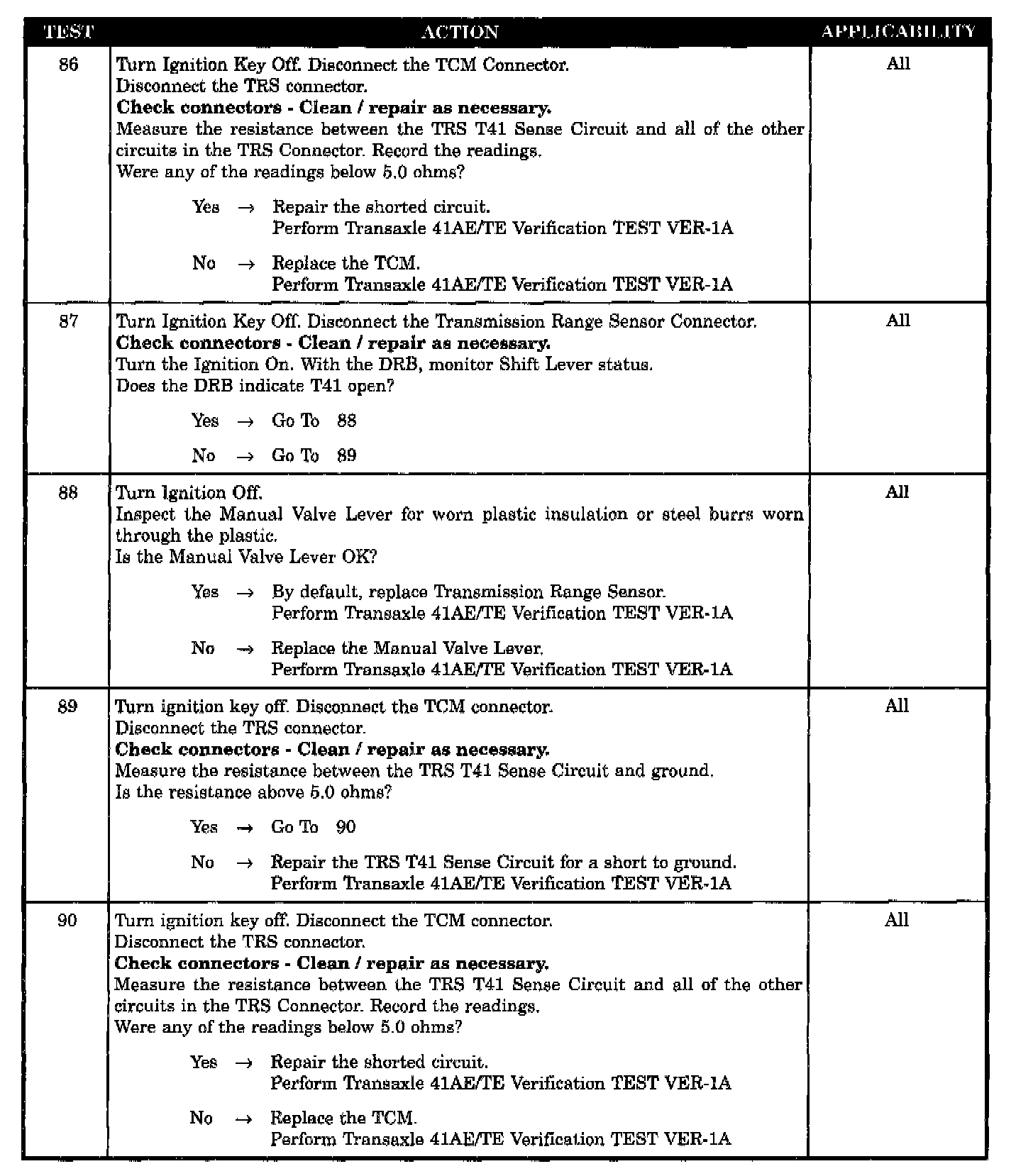

Test 86 - 90:

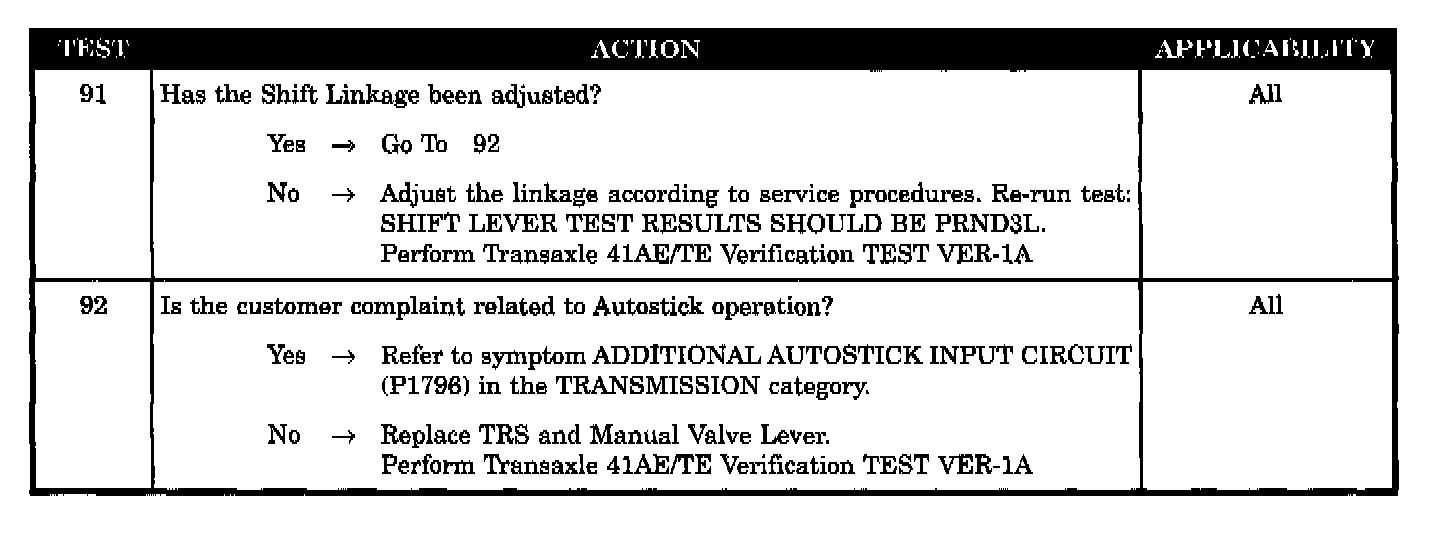

Test 91 - 92:

POSSIBLE CAUSES
PARK/NEUTRAL AND PRNDL SWITCH CONNECTORS DAMAGED
WIRES BETWEEN TCM & TRS SHORT TO VOLTAGE
CUSTOMER COMPLAINT RELATED TO AUTOSTICK OPERATION
SHIFT LINKAGE OUT OF ADJUSTMENT
WIRES BETWEEN THE TCM AND THE TRS INTERMITTENT
WIRES BETWEEN THE TCM AND TRS INTERMITTENT SHORT TO GROUND
MANUAL VALVE LEVER EXCESSIVE WEAR
ALL PRNDL LIGHTS ILLUM IN PARK OR NEUT OR CODE P0705 RESET
TRS DEFECTIVE
SHORT BETWEEN TRS T3 SENSE CKT & GROUND
TRS T41 SENSE CIRCUIT SHORT TO GND
TRS T42 SENSE CKT OPEN BETWEEN TCM & TRS CONNECTORS
OPEN TRS T3 SENSE CKT BETWEEN TCM & TRS
OPEN TRS T41 SENSE CKT BETWEEN TCM AND TRS
SHORT BETWEEN T41 SENSE CIRCUIT AND GROUND
SHORT BETWEEN TRS T3 SENSE CKT & GROUND
SHORT BETWEEN TRS T3 SENSE CKT AND ALL OTHER CKTS IN CONNECTOR
SHORT BETWEEN TRS T3 SENSE CKT AND ALL OTHER CKTS IN CONNECTOR
SHORT BETWEEN TRS T41 SENSE CKT AND OTHER SIGNAL IN CONNECTOR
SHORT BETWEEN TRS T42 SENSE CIRCUIT AND GROUND
TRS CAUSES PRNDL TO LIGHT WHILE SHIFT TO NEUTRAL
TRS T41 SHORT TO OTHER SIGNAL ON TRS CONNECTOR
TRS T42 SENSE CIRCUIT SHORT TO GND
TRS T42 SENSE CIRCUIT SHORT TO OTHER SIGNAL
TRS T42 SENSE CKT SHORT TO SIGNAL IN TRS CONNECTOR
INTERMITTENT TRS
T1 SENSE CIRCUIT SHORT TO GROUND
T1 SENSE CIRCUIT SHORT TO SIGNAL
PARK/NEUTRAL CKT ON TCM DEFECTIVE
TRS T1 SENSE ON TCM DEFECTIVE
TRS T3 SENSE CKT ON TCM DEFECTIVE
CODE 5 CAUSED BY T42 SENSE CKT ON TCM DEFECTIVE
CODE 7 CAUSED BY T41 SENSE CKT ON TCM DEFECTIVE
CODE 8 CAUSED BY T41 SENSE CKT ON TCM DEFECTIVE
DEFECTIVE TCM
TCM FAULT/ NO AUTOSTICK
TCM HAS INCORRECT TCM PART NUMBER
PARK NEUTRAL SWITCH DEFECTIVE
TRS T1 SENSE CIRCUIT OPEN
TRS T1 SENSE CIRCUIT SHORT TO SIGNAL
TRS T1 SENSE CIRCUIT SHORTED TO GND
TRS T3 SENSE CKT ON TCM DEFECTIVE
