P0463

Tests 407 - 411:

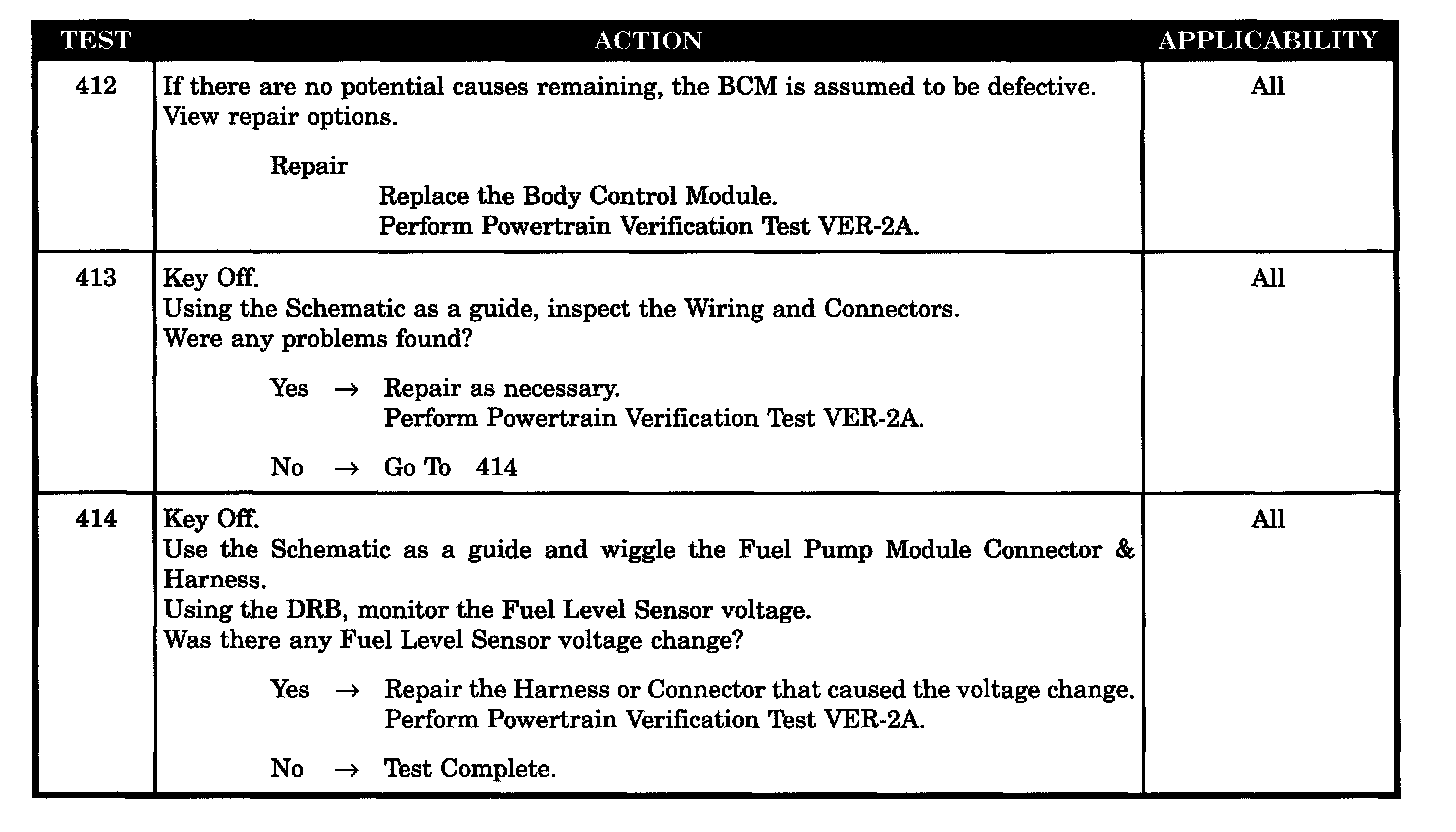

Tests 412 - 414:

SYMPTOM
P-0463 FUEL LEVEL SENDING UNIT VOLTS TOO HIGH

WHEN MONITORED
Ignition on.

SET CONDITION
The Fuel Level Sensor Signal Circuit voltage at the PCM goes above 4.5 volts.

POSSIBLE CAUSES
- Fuel level sensor ground circuit open
- Fuel level sensor signal circuit open
- Fuel level signal ckt wrg harn intermittent defect
- Fuel level signal ckt wrg harn observable defect
- Fuel level sensor defective
- Fuel pump module defective
- Body control module defective
